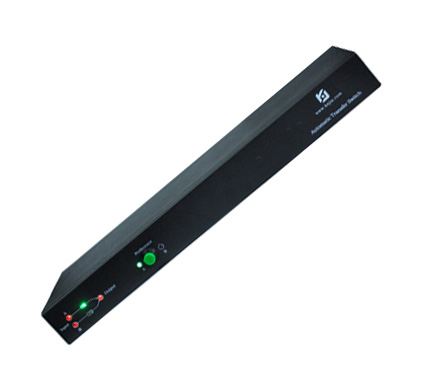

Basic STS 16a
Brief Introduction
KEJIA NKP-DY-SU series ATS/STS(Automatic Transfer Switch) rack mount PDUs offer a redundant power option for single-corded network devices. Dual input cords support separate connection to primary and secondary power sources. The ATS/STS will normally supplies continuous power to all outlets as derived from the primary mains. If the primary power source becomes unstable or failed, the ATS/STS will switch over automatically to the secondary power source until the primary input is restored and stable. Super-fast switchover between primary and secondary power sources occurs within milliseconds, ensuring an uninterrupted power supply in data centers, telecom rooms, hospitals, banks, etc.
Main Features
- 16A , 220-250VAC ATS/STS
- auto-transfer between primary and secondary power sources
- short transfer time <25ms
- LED indicator for power status
- 9 outlet (8 C13, 1C19 rear), 2 inputs (2 power cords rear)
- 1U horizontal rack-mount installation(brackets)
- Black aluminum alloy housing
Typical Application
Auto-Transfer Switch / Basic PDU is ideal for providing current and voltage metered functionality and redundant A/B power to single-corded network equipment.

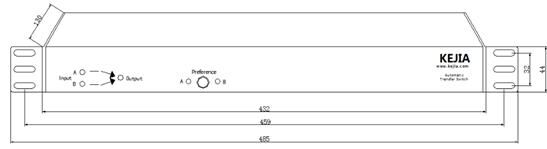

Dimension
Product Parameter
| Model No. | NKP-DY-SU-16a(16-L21+L32+H1-2L) |
|---|---|
| Model No. | NKP-DY-SU-16a(16-L21+L32+H1-2L) |
| PDU Type | ATS/STS/basic |
| GENERAL | |
| Nominal Input Voltage | 220V-250V, single phase |
| Maximum Input Current | 16A |
| Input | (2) power cord extended to IEC C20, 2m long |
| Output Receptacles | (8)IEC C13 250V/10A |
| (1)IEC C19 250V/16A | |
| Maximum Output Current | 10A |
| Frequency | 50/60Hz |
| CIRCUIT PROTECTION | |
| LED Indicator | (2) red LED for input power status; |
| (1) red LED for output power status; | |
| (2) greed LED for preferred power source | |
| FUNCTION | |
| Auto-transferred Switch | (A: primary power source, B: secondary power source ) |
| both primary (A) and secondary (B) power sources are available. A is set as default mains. If A becomes unstable or failed, it will switch over automatically to B until A is restored and stable; | |
| Preference Button | (1) press the green button for once, it switches over to B as primary power source; |
| (2) press the green button for twice, it switches back to A as primary power source; | |
| Transfer Time | <25ms |
| OPERATIONAL ENVIRONMENT | |
| Operating Temperature Range | 0℃-40℃(0℉-104℉) |
| Storage Temperature Range | 0℃-40℃(0℉-104℉) |
| Relative Humidity(RH) | 0%-90% |
| Operating Elevation | <3000m(9873ft) |
| PHYSICAL | |
| Housing Material | Aluminum alloy, black |
| Unit Dimension(HWD/mm) | 485*44*130 |
| Unit Weight(NW/kg) | 3.5 |
| PDU Mounting Form | 1U Horizontal |
| ACCESSORIES | |
| Package Includes | Rack mounting brackets, product manual |
| TEST STANDARDS | |
| Product Test | CE-LVD, CE-EMC, RoHS-2011/65/EU compliant |
| WARRANTY | |
| Product Warranty Period | 2-year warranty |
