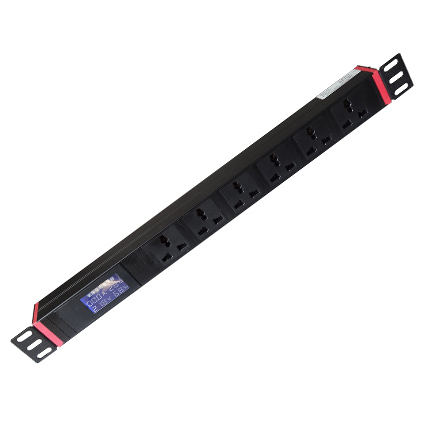

intelligent PDU_ NPDU-1690

3.84kW Metered Intelligent PDU, 250V (6 universal outlet), 220V/16A Input, Local Power/ENV Meter, 7ft Cord, 1U Horizontal

Model Number: NKP-DY-TU-16a(NPDU-1690)

  • 3.84kW 16A 220V metered intelligent PDU
  • 1U horizontal rack-mount installation(brackets)
  • 6 outlet (6 universal outlet front)
  • Class III/Class D/T2 surge protection is extensional
  • Local current/voltage/temp./humidity monitoring options via LCD displayer
Compare
编码: units 分类: 标签: , , , ,

产品描述


Intelligent PDU(Power Distribution Unit)

Features & FunctionsMeteredMonitoredSwitched
reliable power distribution
local power meter(A/V)optional
local ENV meter(Temp./RH)optionaloptionaloptional
remote power monitoring via network (A/V/KWh...) optional
remote ENV monitoring via network (Temp./RH) optionaloptional
remote switch/control on PDU level via network
remote switch/control on outlets level via network optional



Brief Introduction

KEJIA NKP-DY-TU series metered intelligent PDUs(Power Distribution Units) offer real-time monitoring on electricity factors for critical IT equipments via local digital meter, to avoid fire hazards caused by full-load or over-load. Besides transient surge/voltage module is also added to weaken or even eliminate the lightning indication, surge voltage and line noise in the power lines. Ensures a safer, greener and more convenient power distribution environment in server rooms, data centers, network closets, etc. High-quality design includes AL housing and standard 19” rack mount installation.



Main Features

  • 3.84kW 16A 220V metered intelligent PDU
  • 1U horizontal rack-mount installation(brackets)
  • 6 outlet (6 universal outlet front)
  • Class III/Class D/T2 surge protection is extensional
  • Local current/voltage/temp./humidity monitoring options via LCD displayer



Typical Application

Ideal for network configurations in datacenters and heavily configured equipment racks.



Product Parameter

Model No.NKP-DY-TU-16a(NPDU-1690)
PDU TypeIntelligent PDU/Metered
INPUT
Nominal Input Voltage220V
Maximum Input Current16A
Input ReceptaclesN/A
Inlet TypeN/A
Input Cord Length(m/ft)2.13m/7ft (standard)
Input PhaseSingle phase
OUTPUT
Output Capacity3.84kVA(415/240V), 3.68kVA(400/230V), 3.52kVA(380/220V) 16A max per universal outlet
Frequency 50/60Hz
Output Receptacles(6) universal outlet
Output Nominal VoltageSingle phase 240V(415V), 230V(400V), 220V(380V)
Output Maximum Current16A
Outlet Typeuniversal outlet 16A/250V
COMMUNICATION
Energy MeteringVoltage(V),Current(A)
Metering Range & AccuracyVoltage(V): ± 3% @ 190V~270V
Current(A): ±3% @ 0A ~ 20 A
Environmental Metering Temperature, Humidity
Metering Range & Accuracy Temp.: ±2℃ @ 0~50℃
Humidity: ±10% RH @ 20%~90%
Onboard Display LCD displayer
OPERATIONAL ENVIRONMENT
Storage Temperature Range 0℃-40℃(0℉-104℉)
Operating Elevation<3000m(9873ft)
Housing MaterialAluminum alloy
Unit Dimension(HWD/mm)485*44*44
Unit Weight(NW/kg) 1.5
Shipping Dimension(HWD/mm)550*110*90
Shipping Weight(GW/kg)1.6
PDU Mounting Form1U Horizontal
ACCESSORIES
Package IncludesRack mounting brackets, product manual, IEC C19 to NAME 5-15P extension power cord(optional)
TEST STANDARDS
Product TestCE-LVD, CE-EMC, RoHS-2011/65/EU compliant
CERTIFICATION
Regulatory Approvals CE, RoHS
WARRANTY
Product Warranty Period2-year warranty



Digrams

..............



PDU "Model Number" Guides

KEJIA PDU Model No. Guides
