Brief Introduction

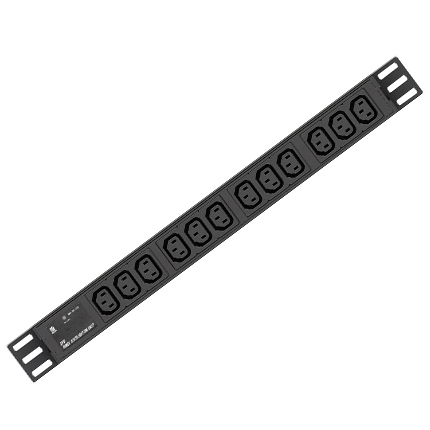

KEJIA NKP-DY-IIIU series PDU with surge protection is designed to protect sensitive laptops, servers, network equipments, audio/video equipments, and other electronic devices from damaging power surges and transients , and provides continuous power as well. LED indicators for power and surge protection. It features high quality build-in MOV to discharge transient current/voltage in picoseconds.
Main Features
- 2.4kW single-phase 32A 220-230V rack PDU
- 1U horizontal rack-mount installation(brackets)
- 12 outlets (12C13 front)
- With surge protection of Class III/Class D/T2 - Imax. 10kA(8/20μs)
- Black aluminum alloy housing
Typical Application
KEJIA NKP-DY-IIIU series rack PDU/basic PDU is deal for premium protection of personal computers with peripherals, network and CAD/CAM/CAE workstations, internetworking accessories, telecommunications systems, point of sale equipment, audio/video and home theater systems in any home, office or industrial application.
Product Parameter
| Model No. | NKP-DY-IIIU-32a(FL32-L34-L2) |
|---|---|
| PDU Type | PDU with Surge Protection |
| INPUT | |
| Nominal Input Voltage | 220V, 230V |
| Maximum Input Current | 32A |
| Input Plug Type | N/A |
| Input Cord Length(m/ft) | 2m/6.6ft (standard) |
| Input Phase | Single phase |
| OUTPUT | |
| Output Capacity | 3.84kVA(415/240V), 3.68kVA(400/230V), 3.52kVA(380/220V) 16A max per C13 |
| Frequency | 50/60Hz |
| Output Receptacles | (12) C13 |
| Output Nominal Voltage | Single phase 240V(415V), 230V(400V), 220V(380V) |
| Output Maximum Current | 16A |
| Outlet Type | IEC320 C13 |
| CIRCUIT PROTECTION | |
| ON/OFF Switch | N/A |
| Circuit Breaker | N/A |
| Overload Protection | N/A |
| Power Status LED Display | YES |
| SURGE PROTECTION | |
| Maximum Operating Voltage | 250V AC |
| Nominal Discharge Current(In) | 5kA/phase(8/20μs) |
| Maximum Discharge Current(Imax) | 10kA/phase(8/20μs) |
| Voltage Protection Level @ In (Up) | <1.2kV |
| Surge Suppression Response Time | <1ns |
| Protection Modes | DM(L-G) |
| Surge LED Indicator | YES |
| OPERATIONAL ENVIRONMENT | |
| Operating Temperature Range | 0℃-40℃(0℉-104℉) |
| Storage Temperature Range | 0℃-40℃(0℉-104℉) |
| Relative Humidity(RH) | 0%-90% |
| Operating Elevation | <3000m(9873ft) |
| PHYSICAL | |
| Housing Material | Aluminum alloy |
| Housing Color | Black |
| Unit Dimension(HWD/mm) | 496*44.5*66 |
| Unit Weight(NW/kg) | 1.4 |
| Shipping Dimension(HWD/mm) | 550*110*90 |
| Shipping Weight(GW/kg) | 1.5 |
| PDU Mounting Form | 1U Horizontal |
| ACCESSORIES | |
| Package Includes | Rack mounting brackets, product manual |
| TEST STANDARDS | |
| Product Test | CE-LVD, CE-EMC, RoHS-2011/65/EU compliant; IEC61643-1/EN61643-1 compliant |
| CERTIFICATION | |
| Regulatory Approvals | CE, RoHS |
| WARRANTY | |
| Product Warranty Period | 2-year warranty |
Digrams
PDU "Model Number" Guides
