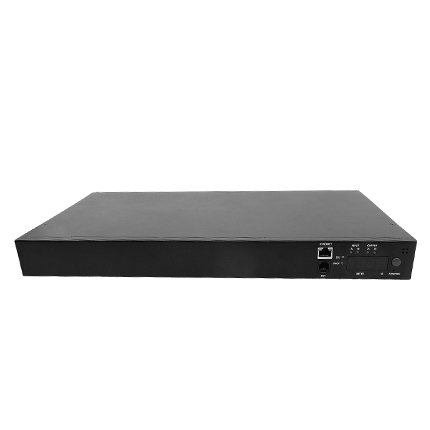

2.4kW Auto-transferred Switch, Switched ATS, 250V (10 C13), 220-230V/16A Input, Remote control & monitor (A/V/KWh/temp./humidity) via Ethernet, 7ft Cord, 1U Horizontal

Model Number: NKP-DY-TSU-16a(ZN16-L52-2L2H)

  • 2.4kW 16A 220-230V ATS
  • short transfer time <25ms
  • auto-transfer between primary and secondary power sources
  • 10 outlet (10 C13 rear), 2 inlets (2 C20 rear)
  • LED indicator for power and network status
  • Local/Remote current/ voltage/energy/temperature/humidity monitoring options
  • Remote control and monitor on PDU/outlets level options via Ethernet
  • 1U horizontal rack-mount installation(brackets)
Compare
编码: units 分类: 标签: , , , , ,

产品描述


Automatic Transfer Switch (ATS)

Features & FunctionsBasicMeteredMonitoredSwitched
auto-transfer between primary and secodary power sources
reliable power distribution
local power meter(A/V)optional
local ENV meter(Temp./RH)optionaloptionaloptional
remote power monitoring via network (A/V/KWh...) optional
remote ENV monitoring via network (Temp./RH) optionaloptional
remote switch/control on PDU level via network
remote switch/control on outlets level via network optional



Brief Introduction

KEJIA NKP-DY-SU series ATS(Automatic Transfer Switch) rack mount PDUs offer a redundant power option for single-corded network devices. Dual input cords support separate connection to primary and secondary power sources. The ATS will normally supplies continuous power to all outlets as derived from the primary mains. If the primary power source becomes unstable or failed, the ATS will switch over automatically to the secondary power source until the primary input is restored and stable. Super-fast switchover between primary and secondary power sources occurs within milliseconds, ensuring an uninterrupted power supply in data centers, telecom rooms, hospitals, banks, etc.



Main Features

  • 2.4kW 16A 220-230V ATS
  • short transfer time <25ms
  • auto-transfer between primary and secondary power sources

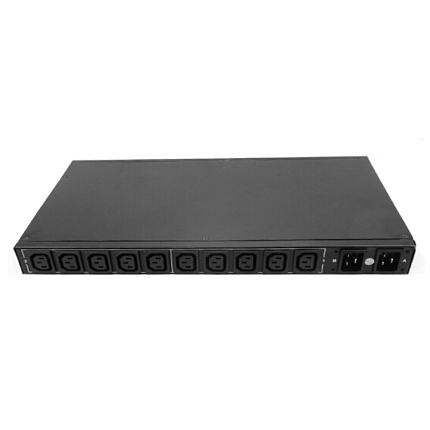

  • 10 outlet (10 C13 rear), 2 inlets (2 C20 rear)
  • LED indicator for power and network status
  • Local/Remote current/ voltage/energy/temperature/humidity monitoring options
  • Remote control and monitor on PDU/outlets level options via Ethernet
  • 1U horizontal rack-mount installation(brackets)



Typical Application

Auto-Transfer Switch / Switched PDU is ideal for providing switched outlet functionality and redundant A/B power to single-corded network equipment



Product Parameter

Model No.NKP-DY-TSU-16a(ZN16-L52-2L2H)
PDU TypeATS/switched
INPUT
Nominal Input Voltage220V, 230V
Maximum Input Current16A
Input Receptacles(2) C20
Inlet TypeIEC320C20
Input Cord Length(m/ft)2.13m/7ft (standard)
Input PhaseSingle phase
OUTPUT
Output Capacity2.4kVA(415/240V), 2.3kVA(400/230V), 2.2kVA(380/220V) 10A max per C13
Frequency 50/60Hz
Output Receptacles(10) C13
Output Nominal VoltageSingle phase 240V(415V), 230V(400V), 220V(380V)
Output Maximum Current16A
Outlet TypeIEC320 C13
CIRCUIT PROTECTION
Overload ProtectionN/A

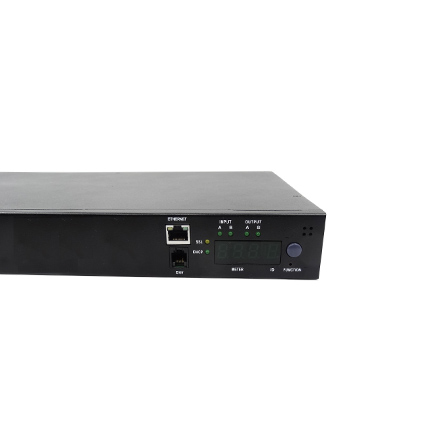

LED IndicatorSSL: (1) YELLOW LED
DHCP: (1) GREEN LED
INPUT STATUS:(2) RED LED
OUTPUT STATUS:(2) GREEN LED
FUNCTION
Auto-transferred Button(A: primary power source, B: secondary power source ) - both primary (A) and secondary (B) power sources are available. A is set as default mains. If A becomes unstable or failed, it will switch over automatically to B until A is restored and stable
Transfer Time<25ms
Network ProtocolHttp(s), SNMP, DHCP,UDP
Network InterfaceRJ45 connector to Ethernet
Energy MeteringVoltage(V),Current(A), Active Power(kW), Apparent Power(kVA), Energy(kWh), Frequency
Metering Range and AccuracyVoltage: ± 2% @ 90V~260V
Active Power: ± 2% @ 50W~5000W
Apparent Power: ± 2% @ 50VA~5000VA
Frequency: ± 2% @ 45~65Hz
Power Factor: ± 0.02 @ 0.5~1.0
Energy(kWh): Range: 0.001kWh ~ 99999.999kWh; Precision: ±2% @ 50W~5000W, kh=1.0
Current: ±2%/±-0.1AMP @ 0A ~ 20 A
Onboard Display3 Digital Seven-segments for True RMS Meter
Environmental MeteringTemperature, Humidity (±2%/±0.1)
Environmental Interface(1) RJ11 for ENV probe connection
OPERATIONAL ENVIRONMENT
Operating Temperature Range 0℃-40℃(0℉-104℉)
Storage Temperature Range 0℃-40℃(0℉-104℉)
Relative Humidity(RH)0%-90%
Operating Elevation<3000m(9873ft)
PHYSICAL
Housing MaterialAluminum alloy
Housing ColorBlack
Unit Dimension(HWD/mm)432*44.5*260
Unit Weight(NW/kg)4.8
Shipping Dimension(HWD/mm)535*415*245
Shipping Weight(GW/kg)5
PDU Mounting Form1U Horizontal
ACCESSORIES
Package IncludesRack mounting brackets, product manual
TEST STANDARDS
Product TestCE-LVD, CE-EMC, RoHS-2011/65/EU compliant
CERTIFICATION
Regulatory Approvals CE, RoHS
WARRANTY
Product Warranty Period2-year warranty
