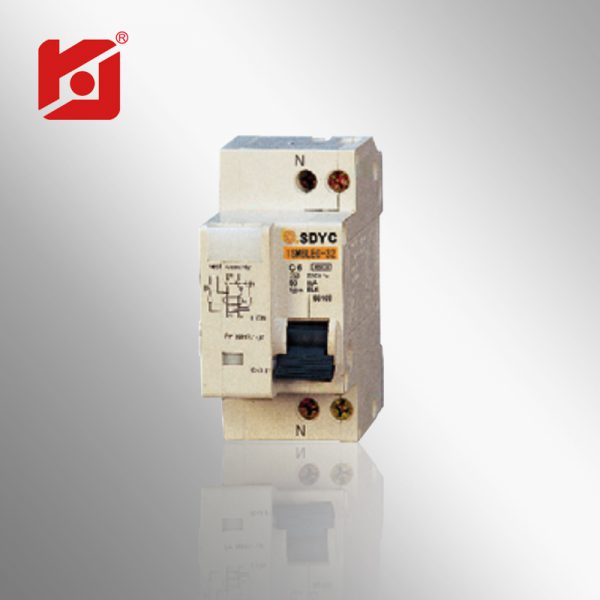

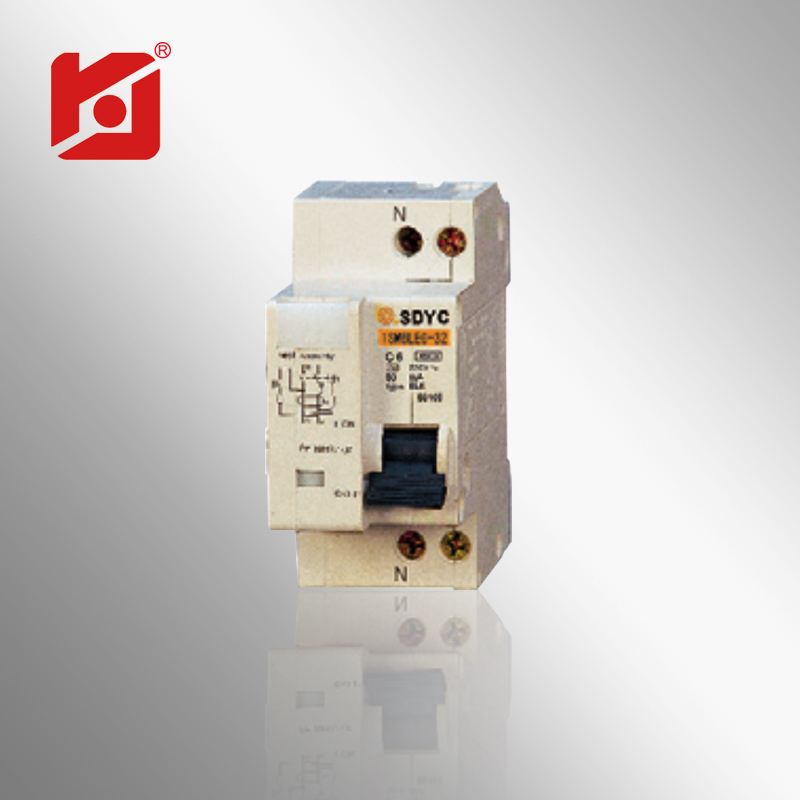

1SM6LE-32 (phase line + neutral + leakage) leakage circuit breakers

1SM6LE-32 leakage circuit breaker for AC 50Hz, rated voltage 220 / 230V, rated current 6A ~ 32A, with overload, short circuit, leakage function. Phase line, zero line at the same time cut off, can effectively prevent wiring errors and system failures arising from accidents. This product complies with GB 16917.1; IEC 61009-1 standard.

Compare
分类:

产品描述

Use

1SM6LE-32 leakage circuit breaker for AC 50Hz, rated voltage 220 / 230V, rated current 6A ~ 32A, with overload, short circuit, leakage function. Phase line, zero line at the same time cut off, can effectively prevent wiring errors and system failures arising from accidents. This product complies with GB 16917.1; IEC 61009-1 standard.

Technical Parameters

Rated current: 6,10,16,20,25,32

Rated voltage: 220 / 230V

Breaking capacity: 4500A

Rated leakage current: 30mA, AC class

Rated leakage non-operating current: 15mA

Tripping characteristics: C-type curve

Mechanical life: 4000 times (off - pass)

Wiring: Use clamp terminals for 10mm2 and below the hard wire

Installation: Standard type TH35-7.5 installation rail.

Application Guide

Press the test button once a month to check the operation of the leakage protection device.

When the leakage protection device is activated, the front of the device has a mechanical indication.

When reclosing the circuit breaker, press the black button, the leakage protection device automatically reset.
