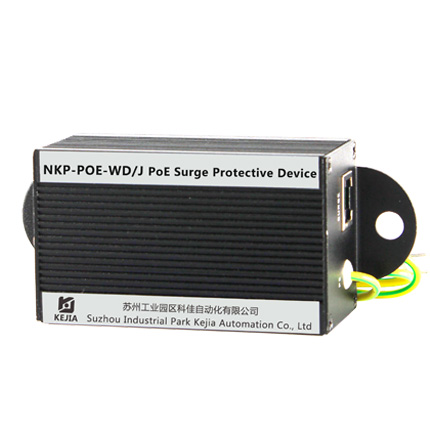

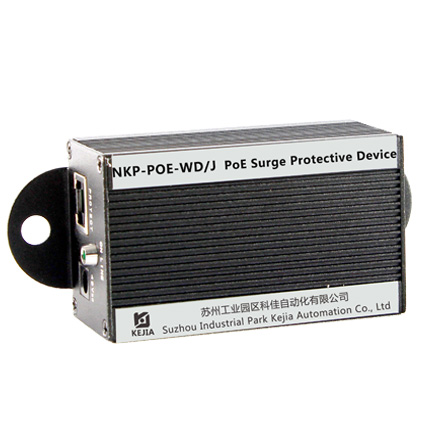

PoE(Power over Ethernet) Surge Protective Devices(SPD) NKP-POE-WD/J

PoE surge protector for power-over-Ethernet system and Ethernet network, RJ45 connector

  • CAT5/CAT5e/CAT6 Ethernet surge protector
  • Protect 10/100/1000 Base-T Ethernet networks
  • RJ45 connector
  • Power-over-Ethernet (PoE) compatible
  • Ultrafast response time <1ns
  • Systematic use of MOV, 3-pole gas tube and fast clamping diode
  • Industrial grade cast aluminum construction with integral mounting feet





Compare

产品描述




NKP-POE-WD/J

NKP-POE-WD/J provides lightning and surge protection for CAT5/CAT5e/CAT6 data applications. It is compatible with industry-standard IEEE802.3af Power-over-Ethernet(PoE) devices and 10/100/1000Base-T Ethernet networks, providing protection to both Ethernet pairs as well as the PoE DC power feed. High speed voltage clamping components clamp any voltage, positive or negative on the pins. The limits are on 4 pins(1, 2, 3, 6) or all pins(1-8) for Ethernet network and pins( 4, 5, 7, 8) for Power-over-Ethernet(PoE) devices.



Main Features

  • CAT5/CAT5e/CAT6 Ethernet surge protector
  • Protect 10/100/1000 Base-T Ethernet networks
  • RJ45 connector
  • Power-over-Ethernet (PoE) compatible
  • Ultrafast response time <1ns
  • Systematic use of MOV, 3-pole gas tube and fast clamping diode
  • Industrial grade cast aluminum construction with integral mounting feet



Product Parameter

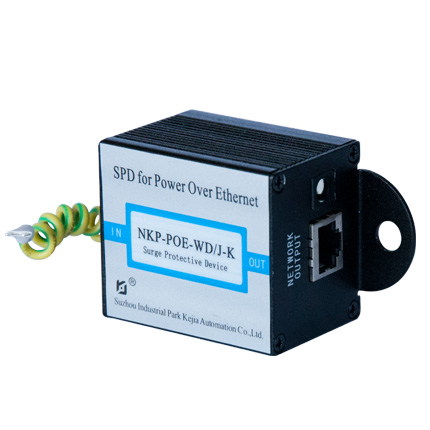

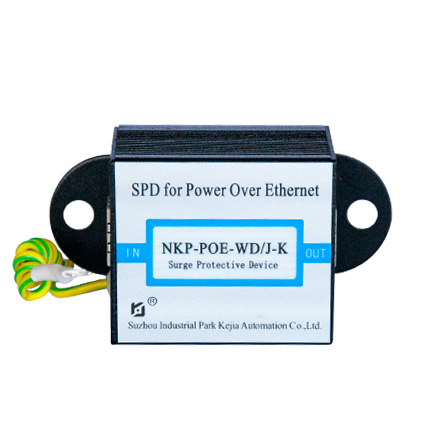

Model No.NKP-POE-WD/JNKP-POE-WD/J(Gigabit LAN)
ELECTRICAL CHARACTERISTICS
Typical ApplicationCAT5/CAT5e Ethernet networkCAT5e/CAT6 Ethernet network
Nominal Operation Voltage(Un)Ethernet: ≤5Vdc; PoE: ≤48Vdc Ethernet: ≤5Vdc PoE: ≤56Vdc
Maximal Operation Voltage (Uc)Ethernet: ≤3Vdc; PoE: ≤60Vdc Ethernet: ≤9Vdc PoE: ≤60Vdc
Nominal Discharge Current (In) Ethernet: 2.5kA(8/20μs); PoE: 5kA(8/20μs) Ethernet: 2.5kA(8/20μs) PoE: 5kA(8/20μs)
Maximal Discharge Current (Imax) Ethernet: 5kA(8/20μs); PoE: 10kA(8/20μs) Ethernet: 5kA(8/20μs) PoE: 10kA(8/20μs)
Voltage Protection Level (Up) L-L: ≤15V; L-PE: ≤300V [5kV/2.5kA] Ethernet: ≤850V; PoE: ≤1kV[8/20μs /5kA]
Response Time (tA)1ns1ns
Insertion Loss≤0.5dB (100MHz)≤0.5dB (250MHz)
Max. Transmission Rate10/100Mbps1000Mbps
MECHANICAL CHARACTERISTICS
I/O ConnectorRJ45 jacksRJ45 jacks
Protected CircuitEthernet: 1, 2, 3, 6; PoE: + (4, 5); - (7, 8) Ethernet: 1-8; PoE: + (4, 5); - (7, 8)
Grounding ProtectionPE line for grounding
Failure Indicatorunilluminated Green light
Place of Installationindoor
Mounting35mm DIN Rail (optional)
Enclosure Materialaluminum alloy
Enclosure Color black
Degree of ProtectionIP20
Test StandardGB/T18802.21/IEC61643-21
ENVIRONMENT CHARACTERISTICS
Stocking Temperature -5℃~+40℃ (-41℉-104℉)
Operating Temperature-20℃~+70℃ (-68℉-158℉)
Relative Humidity (RH)5% - 95% (non-condensing)
Operating Altitude<3000m (9843ft)
Dimension(L*W*H)
Weight(G/W)





Electrical Diagram

...............



 Wiring Diagram

..............



Dimension

.................



 *Installation Notes

  1. Must disconnect power before installation, no hot-line operation is allowed, and better to under the guidance of professional electrician.
  2. For best performance, mount protector in serial with the equipment it is protecting as close as possible, and better to install one protector at each end of the data line.
  3. The ground wire on the product (if included) must be attached directly to the metal chassis of the equipment to be protected. The length of the grounded wire is not to exceed 11 inches.
  4. No special maintenance is needed, however regular inspection is needed, especially during storm seasons.



00 Model Selection Table

Model Configuration
NKP-TEL-5CCAT5/CAT5e Ethernet Surge Protection Devices, 10/100 Base-T, RJ45 jacks, 4 pins(1, 2, 3, 6) surge protection
NKP-TEL-5C-8CAT5/CAT5e Ethernet Surge Protection Devices, 10/100 Base-T, RJ45 jacks, all pins(1-8) surge protection
NKP-TEL-5C-KCAT5e/CAT6 Ethernet Surge Protection Devices, 1000 Base-T, RJ45 jacks, all pins(1- 8) surge protection
NKP-TEL-5UCAT5/CAT5e Ethernet Surge Protection Devices, 10/100 Base-T, RJ45 jacks, 8/16/24 ports, all pins(1-8) surge protection, 19” inches rack-mount
NKP-TEL-5U-KCAT5e/CAT6 Ethernet Surge Protection Devices, 1000 Base-T, RJ45 jacks, 8/16/24 ports, all pins(1-8) surge protection, 19” inches rack-mount
NKP-POE-WD/JCAT5/CAT5e/CAT6 Ethernet Surge Protection Devices, 10/100/1000 Base-T, RJ45 jacks, 4 pins(1, 2, 3, 6) or all pins(1-8) for Ethernet network, 4 pins(4, 5, 7, 8) for DC PoE surge protection
