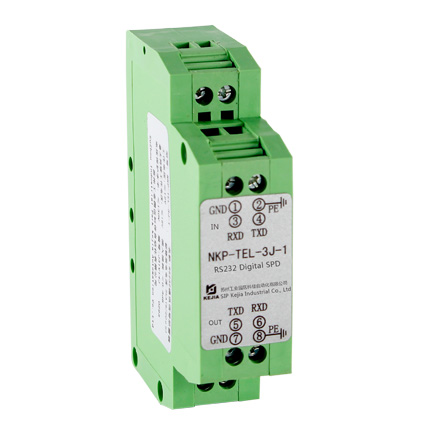

NKP-TEL-3J-1
The NKP-TEL-3J-1 surge protector is designed to protect serial communication data processing equipments, connected to serial RS232 network. Featured with in/out terminals connector. It uses a combination of MOV, 3-electrode gas discharge tube and fast clamping diodes to provide large discharge current capacity and ultrafast response time. It’s for use as secondary surge protection at the equipment level behind a primary protection environment.
Main Features
- RS232 serial surge protector
- Terminal connector
- Ultrafast response time <1ns
- Systematic use of MOV, 3-pole gas tube and fast clamping diode
- Industrial thermal plastic enclosure
Product Parameter
| Model No. | NKP-TEL-3J-1 |
|---|---|
| ELECTRICAL CHARCATERISTICS | |
| Typical Application | RS232 signal system |
| Nominal Operation Voltage(Un) | 12Vdc |
| Maximal Operation Voltage (Uc) | 18Vdc |
| Nominal Discharge Current (In) | 5kA (8/20μs) |
| Maximal Discharge Current (Imax) | 10kA (8/20μs) |
| Voltage Protection Level (Up) [X-X:10kV/5kA] | ≤1.0kV |
| Response Time (tA) | 1ns |
| Insertion Loss | ≤0.3dB (10MHz) |
| Max. Transmission Rate | 10Mbps |
| MECHANICAL CHARACTERISTICS | |
| I/O Connector | terminal blocks |
| Protection Circuit | 1 line, 2 pins |
| Failure Indicator | / |
| Place of Installation | indoor |
| Mounting | 35mm2 DIN rails acc. to EN 60715 |
| Enclosure Material | thermoplastic, PA66 |
| Enclosure Color | green |
| Degree of Protection | IP20 |
| Test Standard | GB/T18802.21/IEC61643-21 |
| ENVIRONMENTAL CHARACTERISTICS | |
| Stocking Temperature | -5℃~+40℃ (-41℉-104℉) |
| Operating Temperature | -20℃~+70℃ (-68℉-158℉) |
| Relative Humidity (RH) | 5% - 95% (non-condensing) |
| Operating Altitude | <3000m (9843ft) |
| Dimension(L*W*H) | 80mm*20mm*69mm |
| Weight(G/W) |
Electrical Diagram
Wiring Diagram
Dimension
*Installation Notes
- Must disconnect power before installation, no hot-line operation is allowed, and better to under the guidance of professional electrician.
- For best performance, mount protector in serial with the equipment it is protecting as close as possible, and better to install one protector at each end of the data line.
- The ground wire on the product (if included) must be attached directly to the metal chassis of the equipment to be protected. The length of the grounded wire is not to exceed 11 inches.
- No special maintenance is needed, however regular inspection is needed, especially during storm seasons.
Model Selection Table
| Model | Configuration |
|---|---|
| NKP-TEL-3J-1 | Serial RS232 Surge Protection Devices, 12Vdc, 1 line 2 pins, terminal blocks |
| NKP-TEL-3J-2(single) | Serial RS485 Surge Protection Devices, 22.5Vdc, 1 line 2 pins, terminal blocks |
| NKP-TEL-3J-2(dual) | Serial RS485 Surge Protection Devices, 22.5Vdc, 2 lines 4 pins, terminal blocks |
| NKP-TEL-3J-3 | Serial RS422 Surge Protection Devices, 12Vdc, 4 pins, terminal blocks |
| NKP-TEL-3J-K | Digital signal Surge Protection Devices, 24Vdc, 1 line 2 pins, terminal blocks |
| NKP-TEL-3C-1 | Serial RS232 Surge Protection Devices, 12Vdc, DB9, 3 pins |
| NKP-TEL-3C-9z | Serial RS232 Surge Protection Devices, 12Vdc, DB9, 1-9-pins/all pins |
