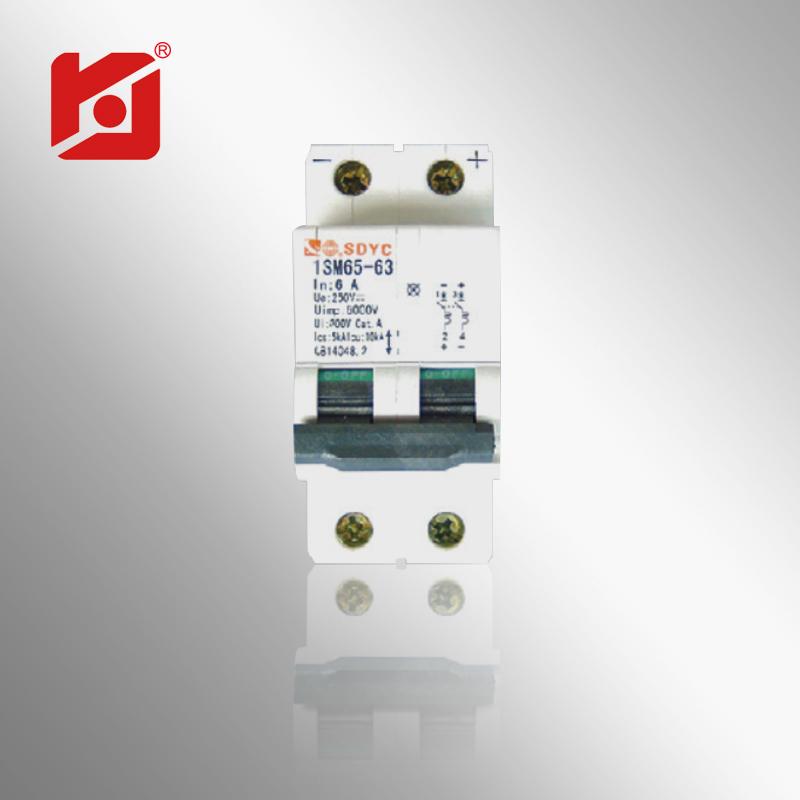

1SM65-63 small DC circuit breaker for DC line control, overload and short circuit protection. And can be used for communications, telephone, locomotive, forklifts, forklifts, electric power, automation control, electrolytic control, security lighting and other industries. Products meet GB14048.2 standards.
Rated current: 1,3,6,10,16,20,25,32,40,50, 63A, DC
Rated voltage: 1P: 125V DC
2P: 250V DC
Breaking capacity: ICU = 10KA ICS = 5KA
Tripping characteristics: see attached drawings
Mechanical electrical life: (off - pass)
5000 times (T = 4ms)
Wiring: Use clamp terminals, can be connected to 25mm2 and below cable.
Shape and installation dimensions
