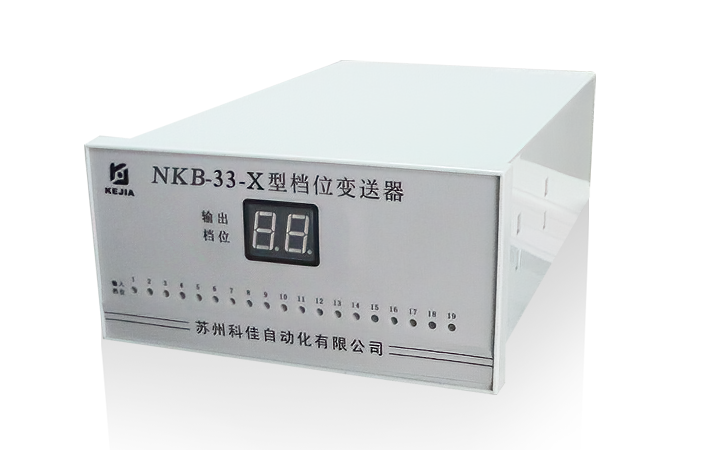

Installation & Application（安装应用） The NKB-33-X tap position transmitter is used to monitor the on-load tap-changing status of substation transformers. It converts the tap position of the diverter switch into a step-proportional analog DC voltage, which is received by a conventional RTU or other acquisition device, serving as the front-end non-electric quantity conversion equipment for automatic telemetry systems. The transmitter employs a variable potentiometer synchronized with the tap-changer and a three-wire bridge to transmit the voltage regulation signal to the transmitter. After dedicated circuit conversion, it outputs a step analog current/voltage signal corresponding to the tap position. Each tap position transmitter can measure one tap point switch, with complete isolation between input and output.

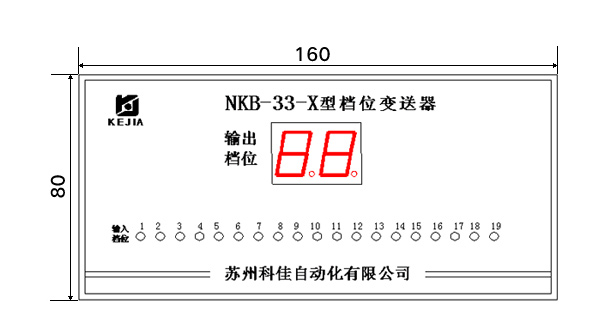

Product Dimension Drawing

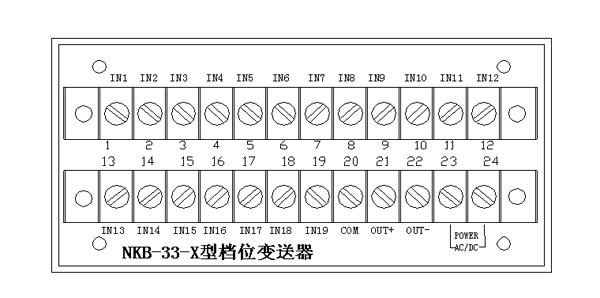

Product Wiring Diagram
Technical Parameters（技术参数） | Model | NKB-33X | Withstand Voltage | >2kV |
| Accuracy | ±0.2%, ±0.5% (selectable) | Enclosure Material | Flame-retardant ABS |
| Input Tap Range | 1~19 taps, 1~21 taps (selectable) | Dimensions (W×H×D) | 165×85×275 (mm) |
| DC Voltage Output | 0~5V, etc. | Panel Cutout Size | 152×76 (mm) |
| DC Current Output | 0~1mA, 0~20mA, 4~20mA, etc. | Weight | 0.9kg |
| Output Step Gradient | Full scale value/Max tap number | Digital Display | 2-digit LED, 0.5" character height |
| Auxiliary Power Supply | AC220V, AC/DC110V, etc. (selectable) | Operating Temperature | -5℃ ~ +45℃ |
| Ambient Temperature | -5℃ ~ +45℃ | Storage Temperature | -20℃ ~ +75℃ |
| Output Ripple | < 1% (peak-to-peak) | Relative Humidity | <80% |
| Input Power Consumption | < 3VA | Protection Class | IP20 |
Ordering and Model Selection（订货选型） *Please send the inquiry email containing specific product requirements (such as model, quantity, technical parameters, etc.) to the designated email address salina@kejia.com.
