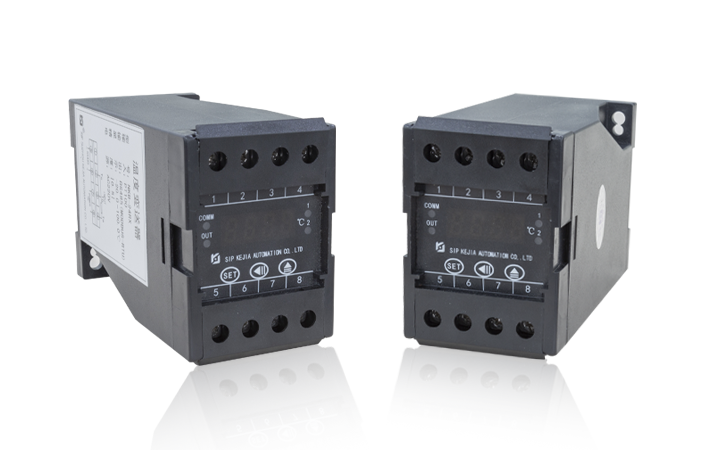

Installation & Application（安装应用） The NKB-24RX plastic shell temperature transmitter is widely applicable for real-time monitoring of equipment oil temperature and ambient temperature in power plants and substations. It converts temperature parameters into proportional digital quantities, which are output via RS485 signals for reception by conventional signal acquisition devices, serving as a front-end non-electricity conversion device in automated telemetry systems.

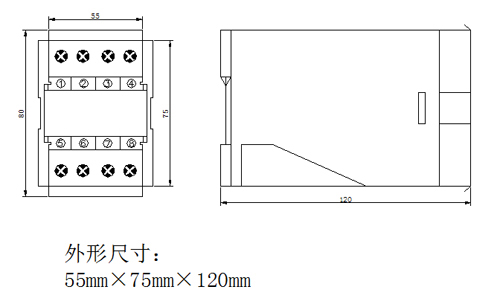

Product Dimension Drawing

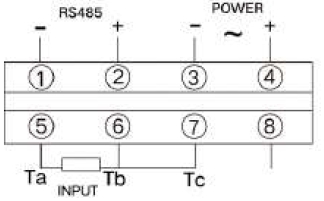

Product Installation Diagram
Technical Parameters（技术参数） | Model | NKB-24RX | Shell Material | Flame-retardant ABS |
| Accuracy | ±0.5% | Dimension (W×H×D) | 55×75×120 (mm) |
| Input Temperature Range | -30℃ ~ 100℃, -20℃ ~ 100℃, 0℃ ~ 150℃, etc. Optional | Weight | 0.4kg |
| Output | RS485 (MODBUS-RTU Communication Protocol) | Installation Method | 35mm DIN Rail Mountable |
| Response Time | ≤ 250msec | Operating Temperature | -5℃ ~ +45℃ |
| Working Power Supply | AC/DC 85~265V | Storage Temperature | -20℃ ~ +75℃ |
| Input Power Consumption | < 3VA | Relative Humidity | <80% |
| Withstand Voltage | 2KV | Protection Grade | IP20 |
| Temperature Influence | |||
| Within the applicable range of standard temperature, the allowable error variation is ±0.5% | |||
Ordering and Model Selection（订货选型） *Please send the inquiry email containing specific product requirements (such as model, quantity, technical parameters, etc.) to the designated email address salina@kejia.com.
（请将包含具体产品需求（如型号、数量、技术参数等）的询价邮件发送至指定邮箱 salina@kejia.com）
