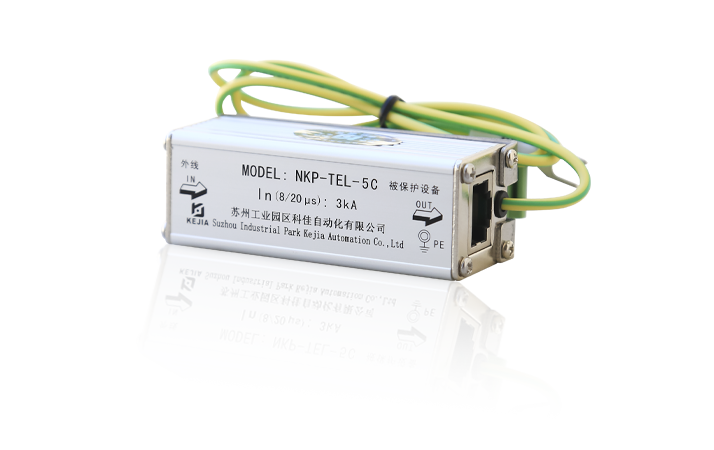

Installation & Application（安装应用） The NKP-TEL-5C Ethernet Lightning Arrester is designed for lightning protection of communication equipment network interfaces. It adopts a single-channel RJ45 standard network interface, suitable for installation at ports of various communication network devices to provide lightning protection.
Precautions for Surge Protector Installation
The lightning arrester is connected in series between the protected equipment and the signal channel.
The input terminal (IN) of the lightning arrester should be connected to the signal channel, while the output terminal (OUT) should be connected to the protected equipment and installed close to it. The connection must not be reversed.
Reliably connect the grounding wire of the lightning arrester to the grounding bar of the lightning protection system. The grounding wire should be as short as possible, with a maximum length not exceeding 1 meter.
This product does not require special maintenance. Regular inspections of the lightning arrester should be conducted, especially before and during the thunderstorm season.

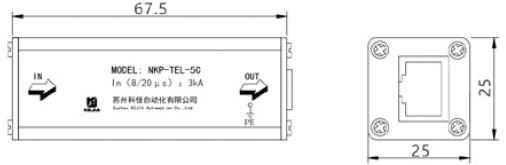

Product Dimension Drawing

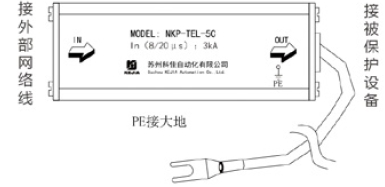

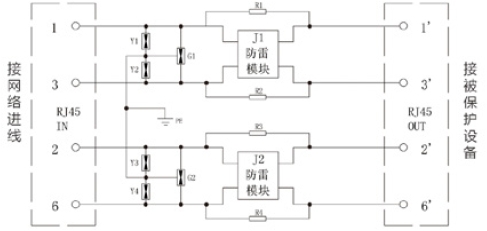

Product Wiring Diagram
Product Dimensional Drawing
Technical Parameters（技术参数） | Model | NKP-TEL-5C |
|---|---|
| Operating Voltage | 5V DC |
| Maximum Continuous Operating Voltage (Uc) | 9V DC |
| Voltage Protection Level (Up) | 1.0kV, C2:5kV/2.5kA, X-C(PE) |
| AC Withstand Capability | 0.1A, 1s, 5 times, X-C(PE) |
| Impulse Withstand Capability | C2:5kV/2.5kA, X-C(PE) |
| Capacitance | ≤ 10pF, X-C(PE) |
| Surge Reset Time | 30ms, 6.5VDC, 0.5A, X-C(PE) |
| Insertion Loss | ≤ 0.5dB/100MHz |
| Return Loss | ≥ 10dB/100MHz |
| Near-End Crosstalk | ≥ 40dB/100MHz |
| Rated Current | 200mA |
| Series Resistance | 1Ω±20% |
| Overload Failure Mode | Mode 3, X-C(PE) |
| Transmission Rate | 10-100Mbps |
| Operating Temperature | -40°C to +70°C |
| Dimensions | 67.5mm×25mm×25mm |
| Input/Output | RJ45 Network Interface |
| Protection Grounding | PE Terminal |
| Protected Wire Pairs | 1, 2, 3, 6 (4 wires) |
Ordering and Model Selection（订货选型） | Product model | Product description |
|---|---|
| NKP-TEL-5C | 100Mbps Ethernet SPD, 5kA Imax, 4-Line Protection per Port, RJ45, DIN-Rail Mount。 |
| NKP-TEL-5C-8 | 100Mbps Ethernet SPD, 5kA Imax, 8-Line Protection per Port, RJ45, DIN-Rail Mount。 |
| NKP-TEL-5C-K1 | Gigabit Ethernet SPD, 1.5kA Imax, Port-Level Protection, RJ45, DIN-Rail Mount。 |
| NKP-TEL-5U-8 | 100Mbps Ethernet SPD, 5kA Imax, 8-Port Protection, RJ45 Interfaces, Chassis Mount。 |
| NKP-TEL-5U-16 | 100Mbps Ethernet SPD, 5kA Imax, 16-Port Protection, RJ45 Interfaces, Chassis Mount。 |
| NKP-TEL-5U-24 | 100Mbps Ethernet SPD, 5kA Imax, 24-Port RJ45 , Chassis Mount。 |
| NKP-TEL-5U-K8 | 1Gbps Ethernet SPD, 1.5kA Imax, 8-Port RJ45, Chassis Mount。 |
| NKP-TEL-5U-K16 | 1Gbps Ethernet SPD, 1.5kA Imax, 16-Port RJ45, Chassis Mount。 |
| NKP-TEL-5U-K24 | 1Gbps Ethernet SPD, 1.5kA Imax, 24-Port RJ45, Chassis Mount。 |
