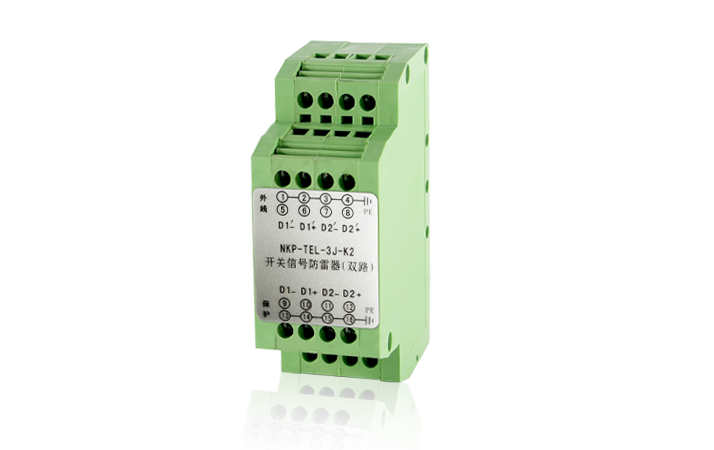

Installation & Application（安装应用） The NKP-TEL-3J-K2 switch signal lightning arrester provides protection for 24V switch signals and pulse signals, featuring a standard terminal block interface with dual-channel 4-wire protection capability and DIN rail mounting design for cabinet installation. This arrester should be installed at the serial ports of all communication equipment, with conventional wiring for input/output terminals and secure connection of the grounding terminal to the earth (PE) conductor - note the lightning protection side (incoming line) must be correctly connected to the protected side (outgoing line) without reverse polarity.
Installation Precautions
The lightning arrester is connected in series between the protected equipment and the signal line.
The input (IN) of the arrester should be connected to the signal line, while the output (OUT) should be connected to the protected equipment and installed as close to it as possible. Reverse connection is not allowed.
Securely connect the arrester’s grounding wire to the lightning protection system’s grounding busbar. The grounding wire should be as short as possible, with a maximum length not exceeding 1 meter.
This product requires no special maintenance. However, regular inspections should be conducted, especially before and during the thunderstorm season.

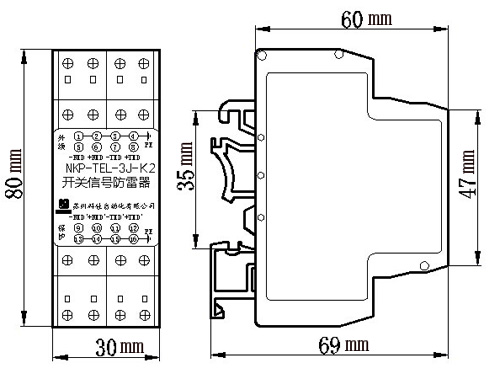

Product Dimension Drawing（mm）

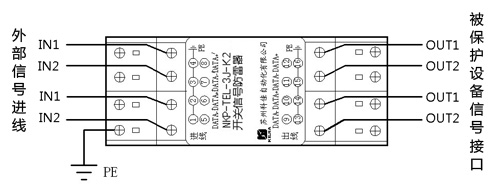

Installation & Wiring Instructions

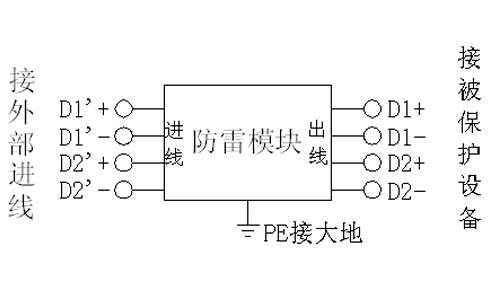

Product Schematic Description
Technical Parameters（技术参数） Working Voltage: 22.5V
Maximum Continuous Operating Voltage (Uc): 24V DC
Voltage Protection Level (Up): 1.0kV
Impulse Withstand Capability: C2: 10kV/5kA, X-C(PE)
AC Withstand Capacity: 0.1A, 1s, 5 cycles, X-C(PE)
Capacitance: ≤10pF, X-C(PE)
Insertion Loss: ≤0.3dB @ 10MHz
Response Time: 10-12s
Dimensions: 80mm × 60mm × 30mm
Mounting: 35mm standard DIN rail clip
Enclosure: Terminal-type plastic housing
Ordering and Model Selection（订货选型） | Product model | Product description |
|---|---|
NKP-TEL-3J-K | The 24V switch signal lightning arrester features 10kA maximum discharge current capacity with single-channel 2-wire protection, incorporating standard terminal block interfaces and DIN rail mounting compatibility for industrial control applications。 |
| NKP-TEL-3J-K2 | The 24V switch signal lightning arrester delivers dual-channel 4-wire protection with 10kA maximum discharge capacity (8/20μs), featuring standard terminal block interfaces and compliant 35mm DIN rail mounting for industrial automation systems。 |
*Please send the inquiry email containing specific product requirements (such as model, quantity, technical parameters, etc.) to the designated email address salina@kejia.com.
（请将包含具体产品需求（如型号、数量、技术参数等）的询价邮件发送至指定邮箱 salina@kejia.com）
