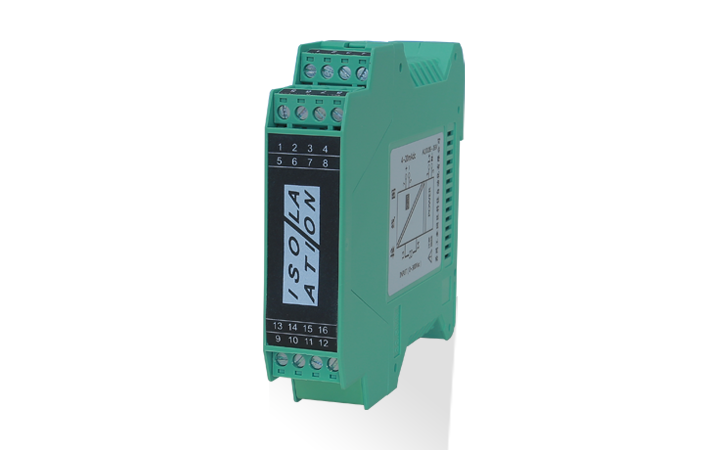

Installation & Application（安装应用） NKB-26D DC Current Transmitter is an instrumentation device designed for automation control systems, performing signal distribution, conversion, isolation, and transmission of industrial signals. Compatible with various industrial sensors, it acquires parameter signals and delivers isolated transmission to meet both local monitoring and remote data acquisition requirements.

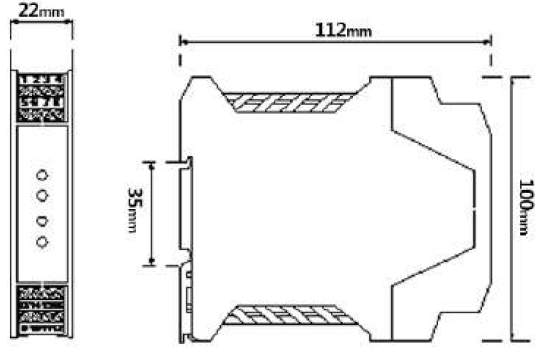

Product Dimension Drawing

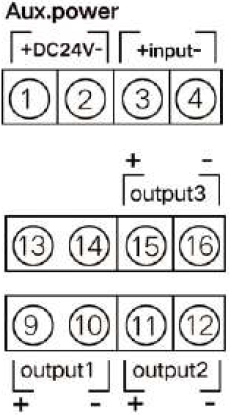

Product Installation Diagram
Technical Parameters（技术参数） | Model | NKB-26D | Withstand Voltage | AC 2KVrms/min |
| Response Time | ≤ 400mSec. | Insulation Resistance | ≥ 100MΩ @ DC500V |
| Input Impedance | Current ≤ 60Ω; Voltage ≥ 1MΩ | Operating Temperature | -10℃ to 55℃,<80% RH |
| Output Load | Current output ≤ 750Ω; Voltage output ≥ 1KΩ | Storage Temperature | -20℃ to 70℃,<70% RH |
| Zero Adjustment | ≤ ±10% RO | Dimensions | 100mm(L) × 22mm(W) × 112mm(H) |
| Span Adjustment | ≤ ±20% RO | Mounting | 35mm DIN rail |
| Power Consumption | DC supply<0.3W; AC supply <0.4VA | Weight | <200g |
| Enclosure | ABS engineering plastic | ||
Ordering and Model Selection（订货选型） *Please send the inquiry email containing specific product requirements (such as model, quantity, technical parameters, etc.) to the designated email address salina@kejia.com.
（请将包含具体产品需求（如型号、数量、技术参数等）的询价邮件发送至指定邮箱 salina@kejia.com）
