Installation & Application（安装应用） A highly effective and practical remote power monitor for equipment rooms, combining power strip functionality. Enables administrators to automatically monitor on-site power usage remotely from anywhere via network, including critical equipment such as factory computer rooms, automated control systems, servers, routers, etc。
Product Features

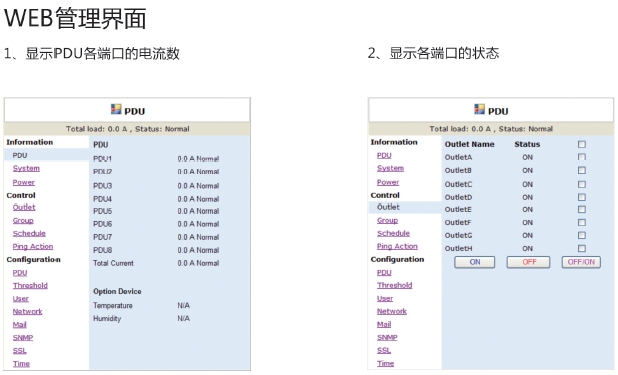

Built-in web server for real-time power monitoring via browser (displays direct URL)
Precision digital meter for accurate power measurement
Buzzer alarm when consumption exceeds set value
Email/Trap notifications for power events
Central control software for multi-PDU management
SNMP MIB support for network integration
Overload protection to prevent electrical hazards
Slim design for rack compatibility
Remote outlet control/reboot
LED indicators for power status
Sequential power-on
Software Functions
Multi-PDU power monitoring
Custom group management
Power consumption charts (daily/monthly/custom)
Email/Trap alerts for power events
Multi-level user accounts
Power event logging
Technical Parameters（技术参数） | Category | Specification |
|---|---|
| Output | (8) IEC320 C13 / (8) Universal sockets |
| Input | (1) IEC320 C20 input; C19 to C20 power cable, 3m |
| Protection | (1or8) 16 AMP circuit breakers |
| Communication | Http, Https, SNMP, DHCP, UDP |
| SSL Indicator | (1) Yellow LED |
| DHCP Indicator | (1) Green LED |
| PDU Power Status | (8) Green LEDs |
| Circuit Breaker Status | (8) Red LEDs |
| Power Monitoring | (1) RJ45 Ethernet port |
| PDU ID | LED digital display |
| Current Meter | 3-digit seven-segment True RMS meter Range: 0A~20A Resolution: 0.1A Accuracy: ±2%/±0.1A |
| Input Voltage | AC 220V |
| Output Voltage | AC 220V |
| Power Frequency | 50/60Hz |
| Max Output Current | 16A |
| Operating Temperature | 0~40℃ |
| Operating Humidity | 0%~90% |
| Dimensions | 485mm×44.5mm×95mm |
Ordering and Model Selection（订货选型） *Please send the inquiry email containing specific product requirements (such as model, quantity, technical parameters, etc.) to the designated email address salina@kejia.com.
（请将包含具体产品需求（如型号、数量、技术参数等）的询价邮件发送至指定邮箱 salina@kejia.com）
