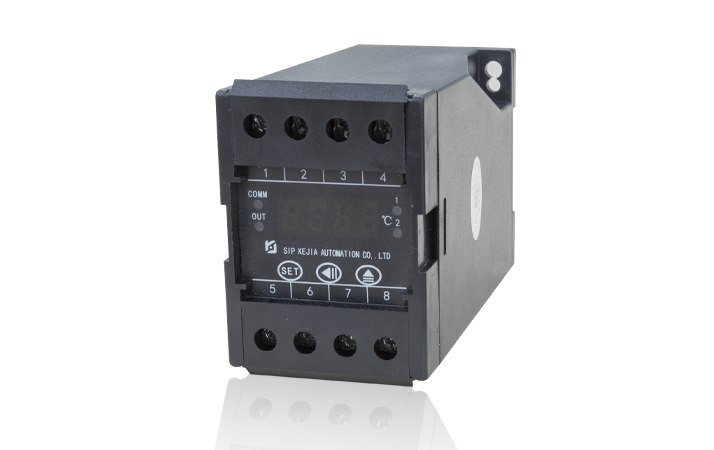

Installation & Application（安装应用） The NKB-26RX Molded-Case DC Current Transmitter is designed for widespread application in power plants, converting DC current parameters into proportional RS485 signal output with display. Compatible with conventional signal acquisition devices, it serves as a front-end power conversion unit in automated telemetry systems.
Product Dimension Drawing
Product Installation Diagram
Technical Parameters（技术参数） | Model | NKB-26RX | Withstand Voltage | 1.5KV |
| Accuracy | ±0.5% | Enclosure Material | Flame-retardant ABS |
| Input Channels | Dual-channel | Dimensions (W×H×D) | 55×75×120 mm |
| Input Range | 4~20mA | Weight | 0.4kg |
| Output | RS485 (MODBUS-RTU protocol) | Mounting Method | 35mm DIN rail mountable |
| Display Content | Current 4~20mA, Selectable temperature range (switchable display) | Operating Temperature | -5℃ to +45℃ |
| Response Time | ≤250msec | Storage Temperature | -20℃ to +75℃ |
| Power Supply | AC/DC 85~265V | Relative Humidity | <80% RH |
| Power Consumption | <3VA | Protection Rating | IP20 |
| Temperature Effect | Within standard temperature range, ±0.5% additional error allowed | ||
Ordering and Model Selection（订货选型） *Please send the inquiry email containing specific product requirements (such as model, quantity, technical parameters, etc.) to the designated email address salina@kejia.com.
（请将包含具体产品需求（如型号、数量、技术参数等）的询价邮件发送至指定邮箱 salina@kejia.com）
