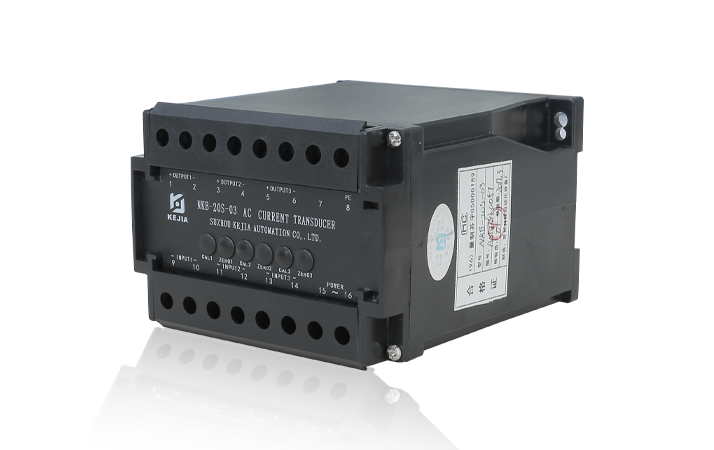

Installation & Application（安装应用） The NKB-20S series AC current transmitters are widely used for real-time monitoring of electrical parameters in power grids, including substations and power plants. Mountable on 35mm DIN rails, they convert AC current into proportional analog DC outputs that can be received by conventional RTUs or other data acquisition devices, serving as front-end converters for automated telemetry systems.

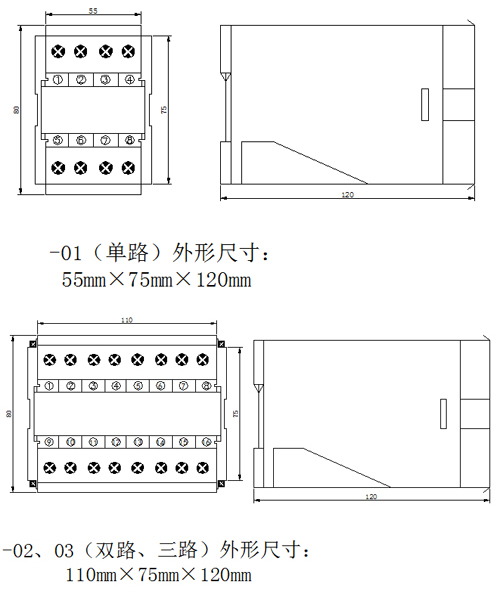

Product Dimension Drawing

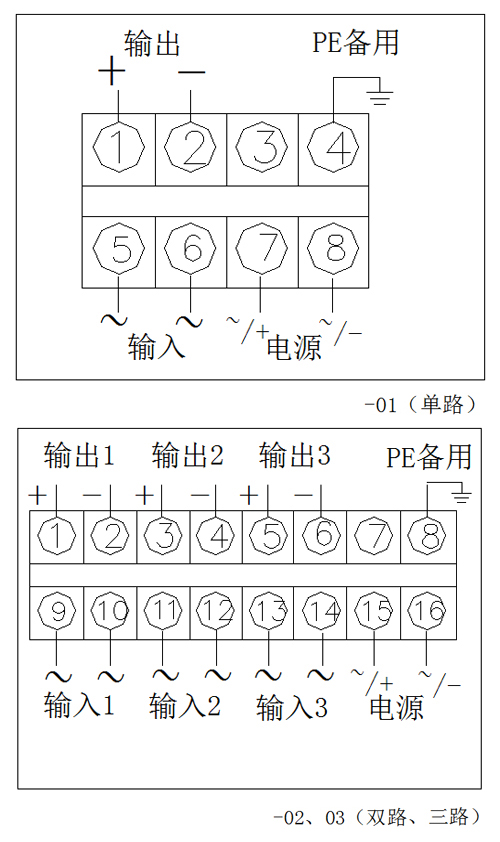

Product Installation Diagram
Technical Parameters（技术参数） | Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Model | NKB-20S | Withstand Voltage | 2KV |
| Accuracy | Optional: ±0.2%, ±0.5% | Housing Material | Flame-Retardant ABS |
| Rated Current Input | Optional: 0~1A, 0~5A, etc. | Dimensions (W×H×D) | 55×75×120/110×75×120 (mm) |
| Output Range | Optional: 0~20mA, 4~20mA, 0~5V, 0~10V, 1~5V, etc. | Weight | 0.4kg |
| Auxiliary Working Power Supply | AC220V±15%, 4VA, etc. | Mounting Method | 35mm DIN Rail Mountable |
| Operating Frequency | 50±5Hz | Operating Temperature | -5℃ ~ +45℃ |
| Output Ripple | <1% (Peak-to-Peak) | Storage Temperature | -20℃ ~ +75℃ |
| Input Power Consumption | Current<0.5VA, Voltage <0.5VA; *Add 1VA for self-power supply | Relative Humidity | <80% |
| Temperature Influence | Within standard operating temperature range, for every ±20℃ change, allowable error variation: ±0.2%, ±0.5% | Protection Class | IP20 |
Ordering and Model Selection（订货选型） *Please send the inquiry email containing specific product requirements (such as model, quantity, technical parameters, etc.) to the designated email address salina@kejia.com.
（请将包含具体产品需求（如型号、数量、技术参数等）的询价邮件发送至指定邮箱 salina@kejia.com）
