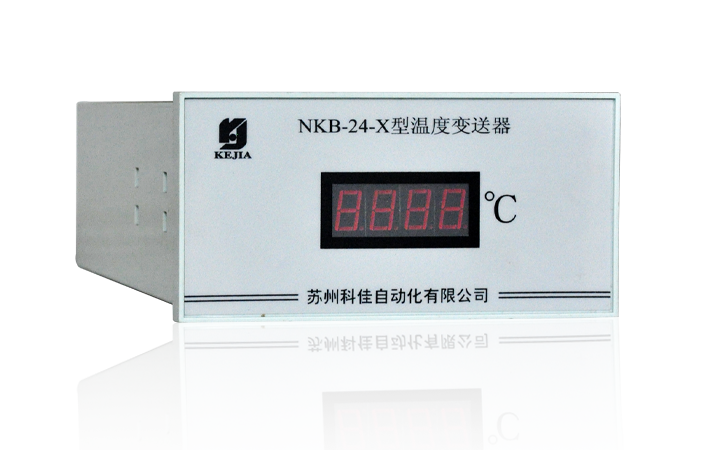

安装应用 The NKB-24X temperature transmitter is widely applicable to power plants and substations for real-time detection of equipment temperature rise, oil temperature and ambient temperature. With an LED display, it converts temperature parameters into proportional analog DC voltage or current signals for reception by conventional devices, RTUs and other signal acquisition units, serving as a front-end non-electric quantity conversion device in automated telemetry systems.

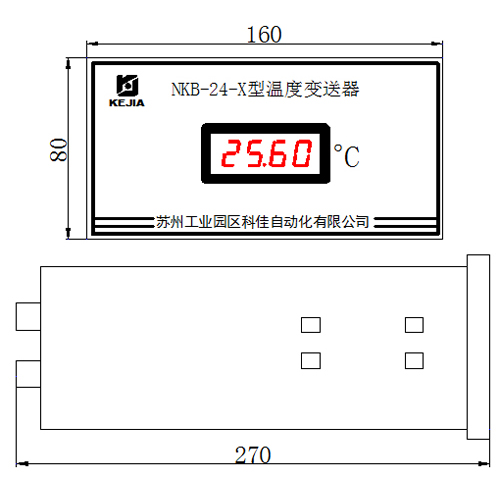

Product Dimension Drawing

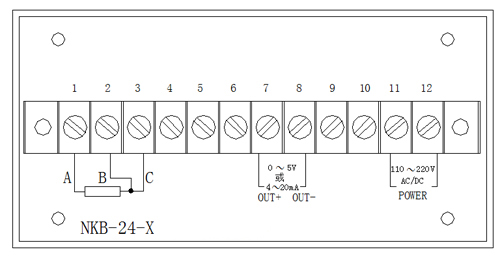

Product Installation Diagram
Technical Parameters（技术参数） | Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Model | NKB - 24X | Withstand Voltage | > 2.5KV |
| Accuracy | ±0.2%, ±0.5% Optional | Shell Material | Flame - Retardant ABS |
| Input Temperature Range | -30℃ ~ 100℃, -20℃ ~ 100℃, 0℃ ~ 100℃, etc. Optional | Dimension (W×H×D) | 165×85×275 (mm) |
| Temperature Probe Model | Pt100, Cu100, Cu50 Optional | Mounting Hole Size | 152×76 (mm) |
| Output Range | 0~20mA, 4~20mA, 0~5V, 0~10V, 1 ~ 5 V Optional | Weight | 0.9kg |
| Response Time | ≤ 250msec | Mounting Method | Panel Mounting |
| Auxiliary Working Power Supply | AC/DC220V, AC/DC110V, etc. Optional | Digital Display | 4 - digit Nixie Tube, Character Height 0.5 Inch |
| Insulation Resistance | ≥ 100Mohm, DC 500V | Operating Temperature | -5℃ ~ +45℃ |
| Output Ripple | < 0.2% (Peak - to - Peak) | Storage Temperature | -20℃ ~ +75℃ |
| Input Power Consumption | < 3VA | Relative Humidity | <80% |
| Temperature Influence | Within the standard temperature range, for every ±20℃ change, the allowable error change is ±0.2%, ±0.5% | Protection Grade | IP20 |
Ordering and Model Selection（订货选型） *Please send the inquiry email containing specific product requirements (such as model, quantity, technical parameters, etc.) to the designated email address salina@kejia.com.
（请将包含具体产品需求（如型号、数量、技术参数等）的询价邮件发送至指定邮箱 salina@kejia.com）
