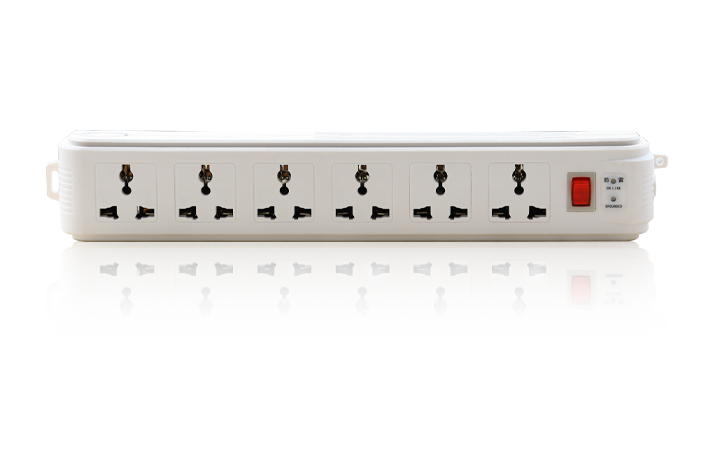

Installation & Application（安装应用） The KDY-IIIC Surge-Protected Power Distribution Unit is a lightning-protected power strip that reduces or eliminates line noise, induced lightning, and surge voltages in power circuits, providing optimal surge protection for power communication equipment, office electronics, and household appliances. The KDY-IIIC features fast response, wide application range, and convenient installation.
Precautions
Indicator Status:
"ON LINE" green light on: Normal operation
"ON LINE" light off: Surge protection failed (requires maintenance/replacement)
Grounding Requirement:
PE terminal must connect to earth ground
"GROUND" green light on: Proper grounding confirmed
"GROUND" light off: No valid ground connection

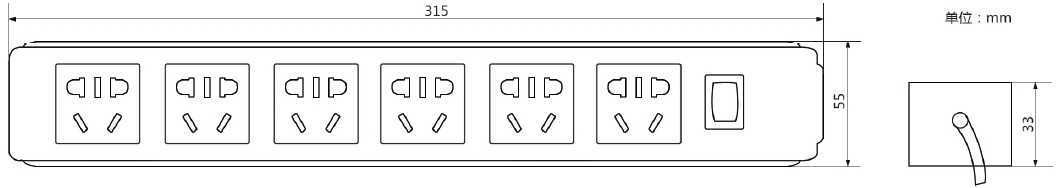

Product Dimension Drawing
Technical Parameters（技术参数） | Model | KDY-IIIC |
|---|---|
| Applicable Power | AC220V mobile equipment |
| Power System | Two-wire AC |
| Nominal Working Voltage (Un) | AC220V |
| Maximum Continuous Operating Voltage (Uc) | AC250V |
| Rated Operating Current | 10A |
| Nominal Discharge Current (In) | 5kA (8/20μs) |
| Maximum Discharge Current (Imax) | 10kA (8/20μs) |
| Voltage Protection Level (Up) | <1200V |
| Response Time | <100ns |
| Installation | Wall-mounted or horizontal fixation |
| Operating Temperature | -40°C to +85°C |
| Housing Material | UL-5V compliant plastic |
| Dimensions | 335×56×32(mm) |
| Cable Length | 2m or 3m (selectable) |
Ordering and Model Selection（订货选型） *Please send the inquiry email containing specific product requirements (such as model, quantity, technical parameters, etc.) to the designated email address salina@kejia.com.
