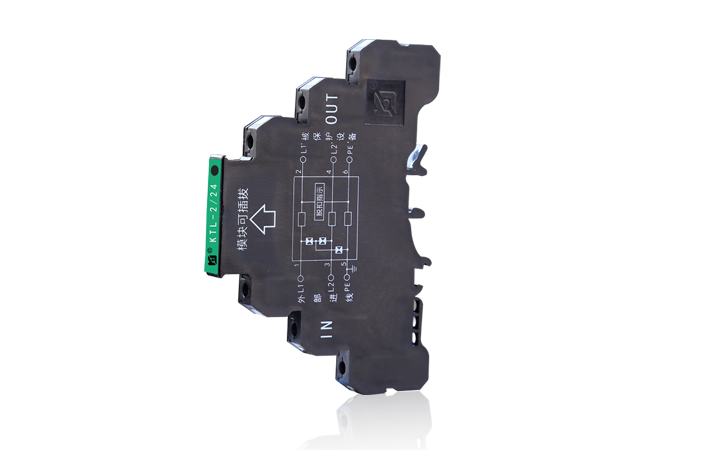

Installation & Application（安装应用） The KTL-2 two-wire signal lightning arrester integrates protection circuits for telephone, power MODEM signals, and digital/analog signals, featuring a standard terminal-type interface. For two-wire signal lines, this arrester should be installed between the incoming line and the protected equipment. It safeguards the corresponding line's signal interface, and the PE terminal must be securely connected to the external ground terminal.
Installation Precautions
The lightning arrester is connected in series between the protected equipment and the signal line.
The input (IN) of the arrester should be connected to the signal line, while the output (OUT) should be connected to the protected equipment and installed as close to it as possible. Reverse connection is not allowed.
Securely connect the arrester’s grounding wire to the lightning protection system’s grounding busbar. The grounding wire should be as short as possible, with a maximum length not exceeding 1 meter.
This product requires no special maintenance. However, regular inspections should be conducted, especially before and during the thunderstorm season.

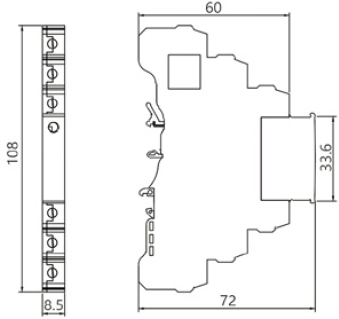

Product Dimension Drawing（mm）

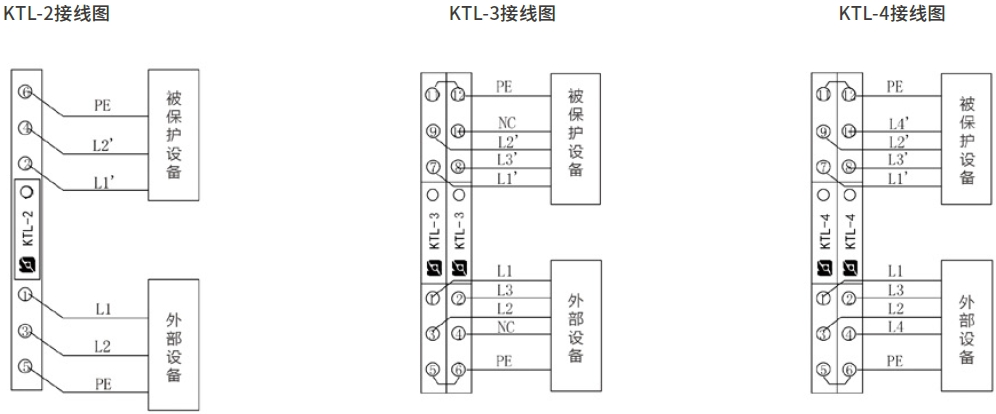

Installation Wiring Instructions

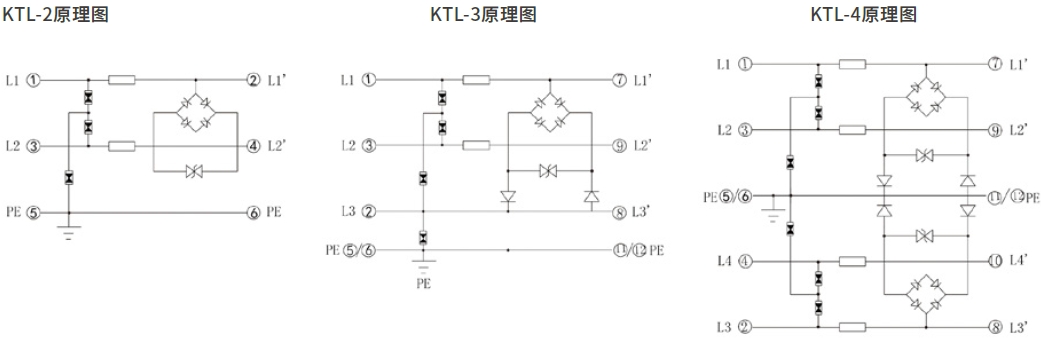

Product Schematic Diagram
Technical Parameters（技术参数） | Parameter | KTL-2 | KTL-3/4 |
|---|---|---|
| Model | KTL-2 | KTL-3/4 |
| Operating Voltage | 24V DC | 24V DC |
| Maximum Continuous Operating Voltage (Uc) | 26V DC | 26V DC |
| Voltage Protection Level (Up) | 1.0kV, C2:10kV/5kA, X-C(PE) | 1.0kV, C2:10kV/5kA, X-C(PE) |
| AC Withstand Capability | 0.1A, 1s, 5 times, X-C(PE) | 0.1A, 1s, 5 times, X-C(PE) |
| Impulse Withstand Capability | C2:10kV/5kA, X-C(PE) | C2:10kV/5kA, X-C(PE) |
| Capacitance | ≤ 60pF; X-C(PE) | ≤ 60pF; X-C(PE) |
| Impulse Reset Time | 30ms, 26VDC, 260mA, X-C(PE) | 30ms, 26VDC, 260mA, X-C(PE) |
| Insertion Loss | ≤ 0.5dB/20MHz | ≤ 0.5dB/20MHz |
| Rated Current | 100mA | 100mA |
| Series Resistance | 2.2Ω±20% | 2.2Ω±20% |
| Overload Failure Mode | Mode 3, X-C(PE) | Mode 3, X-C(PE) |
| Operating Temperature | -40°C ~ +70°C | -40°C ~ +70°C |
| Housing Material | PA66 | PA66 |
| Structural Design | Replaceable failed module | Replaceable failed module |
| Dimensions | 108mm × 72mm × 8.5mm | 108mm × 72mm × 18mm |
| Rail Mounting | 35mm standard clip | 35mm standard clip |
Ordering and Model Selection（订货选型） | Product model | Product description |
|---|---|
KTL-2 Two-Wire | Multi-protection for telephone, power MODEM signals, digital and analog signals. Maximum discharge current 10kA, operating voltage selectable between 12V/24V。 |
| KTL-3 Three-Wire Signal Lightning Arrester | Multi-protection for telephone, power MODEM signals, digital and analog signals. Maximum discharge current 10kA, operating voltage selectable between 12V/24V。 |
| KTL-4 Four-Wire Signal Lightning Arrester | Multi-protection for telephone, power MODEM signals, digital and analog signals. Maximum discharge current 10kA, operating voltage selectable between 12V/24V。 |
