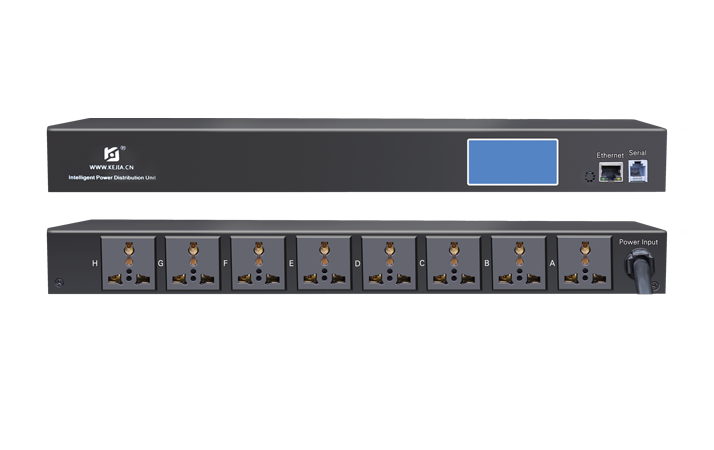

Installation & Application（安装应用） Smart Power Distribution Unit (PDU)
Functionality:
Combines power monitoring and extension cord functionality
Enables remote power consumption monitoring via network
Controls critical equipment (server rooms, automated systems, routers, etc.)
Remote Control:
Web/terminal access for outlet power cycling
Remote reboot capability for crashed devices
Real-time current monitoring (local/network)
Alerts & Reporting:
Automatic threshold alerts via web/Trap notifications
Displays current/power/status data in management software
Product Features:
Built-in web server for real-time power monitoring via browser (displays direct URL)
Precision digital meter for accurate power consumption measurement
Buzzer alarm when consumption exceeds set threshold
Email/Trap notifications for power events
Central control software with intuitive interface for managing multiple PDUs
SNMP MIB support for network management system integration
Overload protection to prevent electrical fires
Slim design for universal rack compatibility
Remote outlet control/reboot capability
LED indicators for outlet power status
Sequential power-on startup
Software Functions:
Multi-PDU power consumption monitoring
Customizable group management
Power consumption charts (daily/monthly/custom views)
Email/Trap alerts for power events
Multi-level user account management
Power event logging and consumption recording

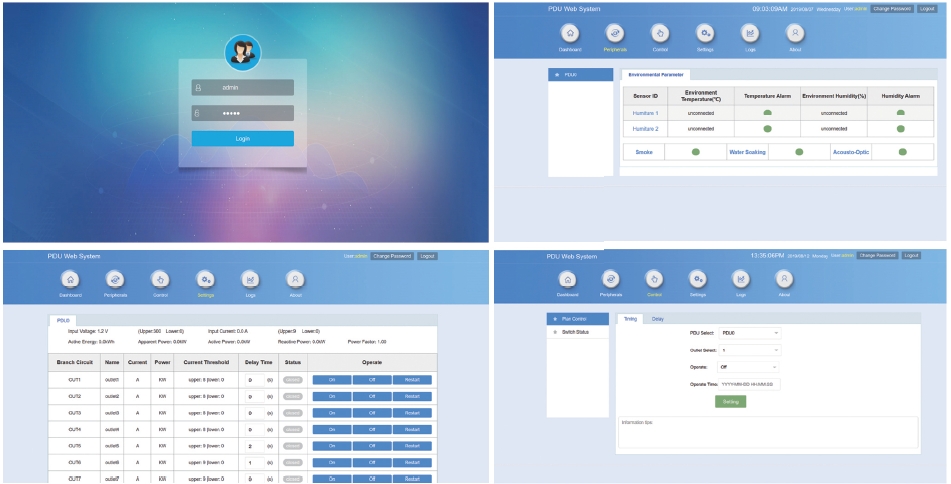

WEB Management Interface
Technical Parameters（技术参数） | Item | Specification |
|---|---|
| Rated Input Voltage | AC220V 50/60 Hz |
| Maximum Load Current | 32A |
| Power Input Type | Single-phase input |
| Input Parameters Monitoring | Current, Voltage, Energy, Power (Active/Reactive/Apparent Power, Power Factor) |
| Output Sockets | 16× International 10A sockets |
| Rated Output Voltage | AC220V 50/60 Hz |
| Rated Output Current | 10A |
| Output Parameters Monitoring | Current, Power |
| LCD | 128x64 resolution display |
| RJ45(NET) | 10/100M Ethernet port |
| Cascade Interface | 2× RS485 for device cascading |
| Sensor Interface | 1× Temperature/Humidity sensor port |
| USB Interface | 1× USB port for WEB system upgrade |
| Physical Buttons |
|
| Operating Temperature | 0℃~50℃ |
| Operating Humidity | 10~90% |
Ordering and Model Selection（订货选型） *Please send the inquiry email containing specific product requirements (such as model, quantity, technical parameters, etc.) to the designated email address salina@kejia.com.
（请将包含具体产品需求（如型号、数量、技术参数等）的询价邮件发送至指定邮箱 salina@kejia.com）
