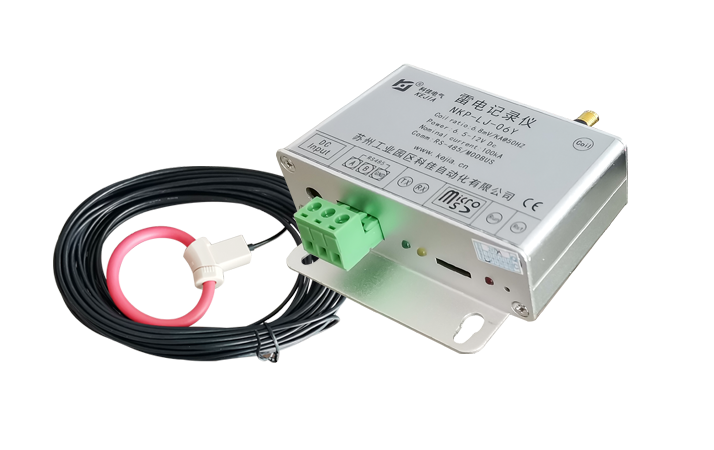

NKP-LJ-06Y Lightning Recorder
The NKP-LJ-06Y is a new-type instrument for recording lightning waveforms, using an open-loop Rogowski coil as the sensor to enable non-intrusive installation and save construction costs.
The NKP-LJ-06Y employs STM32F407 as the core processor, with a 12-bit ADC supporting a maximum sampling rate of 2MHz and up to 5,000 sampling points for a single lightning waveform.
It can real-time record various lightning parameters, including the number of strikes, occurrence time, duration, peak current, wavefront direction, energy value, and waveform data.
The NKP-LJ-06Y is standard-equipped with an RS485 communication interface, enabling real-time reading of lightning waveform parameters via the standard Modbus RTU protocol. A Micro SD card is also standard-provided to store each recorded lightning waveform.

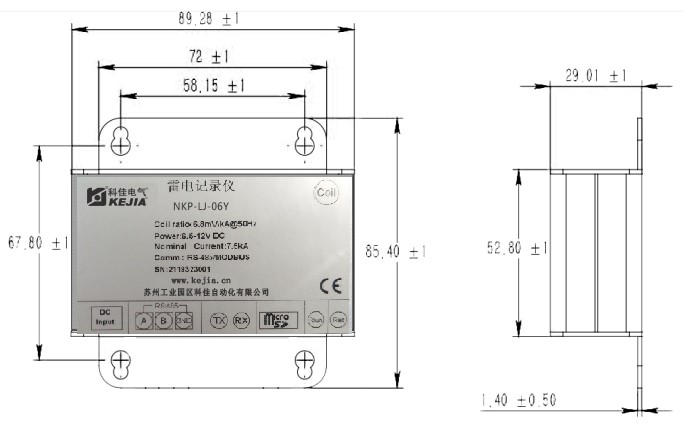

Product Dimension Drawing
Technical Parameters（技术参数） | Overview | |
| Model | NKP-LJ-06Y |
| Type | Lightning Recorder |
| Sensor Type | Rogowski Coil |
| Application Field | Lightning Monitoring, Lightning Waveform Analysis |
| Weight | 140g |
| Dimensions (Body) | L*W*D: 9*8.4*2.8CM (Excluding Protrusions) |
| Color | Silver Gray |
| Lightning Acquisition | |
| Maximum Sampling Rate | 2MHz (Default 2MHz, Adjustable via Modbus) |
| Maximum Sampling Points per Waveform | 5000 |
| Lightning Current Peak | 100kA (Rated Current) |
| Lightning Storage | |
| Built-in Flash | Cyclically Stores 100 Lightning Waveforms (Waveforms Readable via Modbus) |
| External 1G SD Card Storage | Stores Each Lightning Waveform (Waveforms Viewable on PC), in CSV Format |
| Lightning Parameter Recording | |
| 1. Number of Lightning Strikes | |
| 2. Lightning Occurrence Time | |
| 3. Lightning Duration | |
| 4. Lightning Wave Polarity | |
| 5. Peak Value | |
| 6. Energy Value | |
| 7. Waveform Sampling Points | |
| Power Supply | |
| 6.5V - 12VDC | |
| Power Consumption | |
| Less than 1500mW | |
| Terminal Types | |
| Current Input | SMA |
| DC Power Supply | DC 5.5*2.1 Terminal |
Port Definition（端口定义） | Number | Name | Function | Remarks |
|---|---|---|---|
| 1 | DC Input | DC Power Input | 6.5V~12VDC |
| 2 | A | RS485-A | RS485 Interface |
| 3 | B | RS485-B | |
| 4 | GND | RS485-GND | |
| 5 | TX | Transmit Signal Indicator | Communication Indicators |
| 6 | RX | Receive Signal Indicator | |
| 7 | Micro SD | SD Card Slot | SD Card |
| 8 | Run | Device Running Indicator, Blinks Once per Second | Running |
| 9 | Rst | Reset Communication Parameters, Press the Button to Reset to Default Communication Parameters | Reset |
| Accessories | |||
| Adapter | 9VDC | ||
| Micro SD Card | 1G | ||
