Installation & Application（安装应用） The NKP-TEL-2J series Power MODEM Signal Surge Protectors are designed for lightning protection of various communication MODEM equipment (such as power line carrier communication ports) in power systems, effectively safeguarding these electronic devices against induced lightning surges. Featuring standard terminal block connections and equipped with multiple interface converters including 10-pin sockets, 6-pin RJ11 jacks, and 8-pin RJ45 ports, these protectors accommodate diverse communication equipment interface requirements.
Installation & Wiring Instructions
注：5、6、7、8为进线端，8、9、10、11、12为出线端，1、2、3、4、13、14、15、16任一端子接大地。
Product Schematic Description
Technical Parameters（技术参数） | Model | NKP-TEL-2J | NKP-TEL-2J-S | NKP-TEL-2J-R/RJ45 |
| Typical Application | Power Modem | Power Modem/RS232 | |
| Rated Operating Voltage (Un) | 12V DC | ||
| Maximum Continuous Operating Voltage (Uc) | 18V DC | ||
| AC Withstand Capacity | 0.1A, 1s, 5 cycles, X-C(PE) | ||
| Impulse Withstand Capacity | C2: 10kV/5kA, X-C(PE) | ||
| Voltage Protection Level (Up) | ≤ 1.1kV | ||
| Response Time | 10-12s | ||
| Insertion Loss | ≤ 0.3dB | ||
| Bandwidth | 10MHz | ||
| Input/Output Interface | 4-wire terminal block connection | ||
| Operating Temperature | -40℃ to +70℃ | ||
| Housing Material | Green flame-retardant plastic terminal housing | ||
| Protection Class | IP20 | ||
| Mounting | 35mm standard DIN rail (EN60715 compliant) | ||
| Testing Standard | GB/T 18802.21-2016 | ||

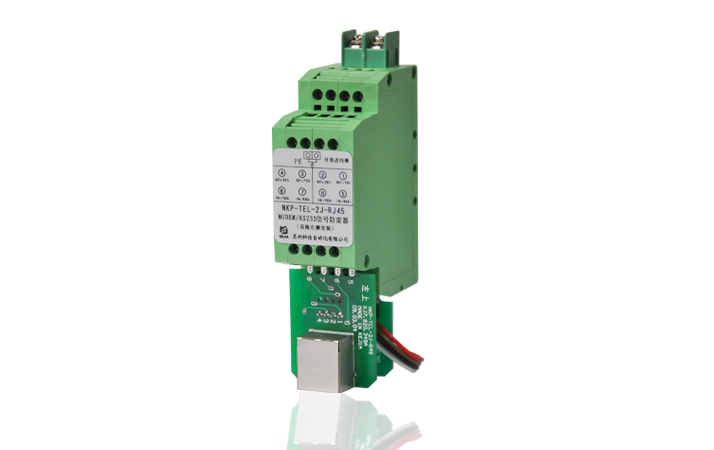

Ordering and Model Selection（订货选型） NKP-TEL-2J: Four-wire terminal block connection type.
NKP-TEL-2J-S: Universal Modem/RS232 compatible, dual-path switchable lightning protection, 10-pin socket output (Patented product).
NKP-TEL-2J-R: Universal Modem/RS232 compatible, dual-path switchable lightning protection, 6-pin RJ11 dual output (Patented product).
NKP-TEL-2J-RJ45: Universal Modem/RS232 compatible, dual-path lightning protection, 8-pin RJ45 output (Patented product).
*Please send the inquiry email containing specific product requirements (such as model, quantity, technical parameters, etc.) to the designated email address salina@kejia.com.
（请将包含具体产品需求（如型号、数量、技术参数等）的询价邮件发送至指定邮箱 salina@kejia.com）
