Installation & Application（安装应用） 应用
NKB-27PD 型蓄电池电压变送器可用于监测蓄电池直流电压的实时运行电参数，其输出成比例的模拟直流量可由常规 RTU或其它采集装置接收，成为自动遥测系统的前置交流电量变换设备，适用于输入直流电压，输出直流电压的方式。

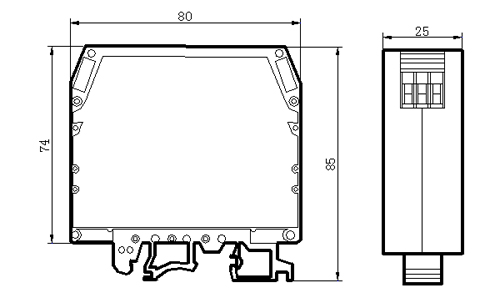

Product Dimension Drawing

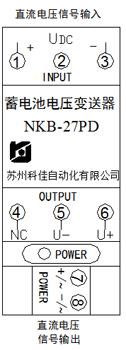

Product Installation Diagram
Technical Parameters（技术参数） | Model | NKB-27PD | Enclosure Material | PA66 |
| Accuracy | ±0.5% | Dimensions (W×H×D) | 25×80×85 (mm) |
| Rated Input Voltage | 0~30V, 0~48V, 0~60V (selectable) | Weight | 0.2kg |
| Output Range | 4~20mA, 0~5V (selectable) | Mounting Method | 35mm DIN rail mounting |
| Auxiliary Power Supply | DC24V, DC48V | Operating Temperature | -5℃ ~ +45℃ |
| Output Ripple | < 1% (peak-to-peak) | Storage Temperature | -20℃ ~ +75℃ |
| Input Power Consumption | < 3VA | Relative Humidity | <80% |
| Withstand Voltage | 2.5KV | Protection Class | IP20 |
| Temperature Effect | Within standard temperature range, allowable error variation: ±0.2%, ±0.5% | ||
Ordering and Model Selection（订货选型） *Please send the inquiry email containing specific product requirements (such as model, quantity, technical parameters, etc.) to the designated email address salina@kejia.com.
（请将包含具体产品需求（如型号、数量、技术参数等）的询价邮件发送至指定邮箱 salina@kejia.com）
