Installation & Application（安装应用） NKP-TEL-5C-3 Triple Protection Surge Arrester for Network Cameras integrates surge protection for network video signals, control signals, and AC/DC power supply into a single unit, representing a new generation multifunctional surge protection solution for camera devices, surveillance systems and video equipment.

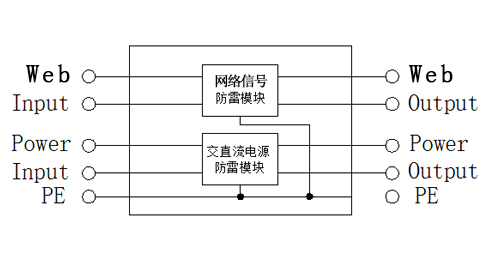

The input terminal of NKP-TEL-5C-3 arrester should connect to external wiring susceptible to lightning induction, while the output terminal connects to protected equipment. Installation requires:
Reliable grounding to provide effective discharge path
Separation from building's lightning protection grounding system to prevent ground potential counterattack
Precautions for Surge Protector Installation
1、The surge protector is connected in series between the protected equipment and the signal channel.
2、The input terminal (IN) of the surge protector should be connected to the signal channel, while the output terminal (OUT) should be connected to the protected equipment and installed as close as possible to it. The connections must not be reversed.
3、Securely connect the surge protector’s grounding wire to the lightning protection system’s grounding bar. The grounding wire should be as short as possible and must not exceed 1 meter in length.
4、This product does not require special maintenance. However, regular inspections of the surge protector should be conducted, especially before and during the thunderstorm season.
5、If a system malfunction is suspected to be caused by the surge protector, first check the corresponding failure indicator light. Alternatively, bypass the surge protector and reconnect the system. If the indicator light does not illuminate or the system returns to normal after removing the surge protector, it indicates that the surge protector is damaged and must be repaired or replaced immediately.
Product Dimension Drawing
Product Dimensional Drawing
Technical Parameters（技术参数） Power Line Voltage Range: 15V～270V (AC/DC), ≤5A
Power Surge Current Capacity: 5kA～10kA (8/20µs)
Power Surge Protection Level: ≤900V
Control Signal Voltage Range: ≤8V
Network Video Signal Voltage Range: ≤5V
Control & Network Surge Current Capacity: 3kA～5kA (8/20µs)
Control & Network Clamping Voltage: 15V, 9V
Control & Network Insertion Loss: ≤0.2 dB
Control & Network Maximum Data Rate: 100MHz
Network Interface: RJ-45 (8-wire Ethernet port)
Control Interface: RS-485 (2-wire terminal)
Power Interface: AC single-phase or DC 2-wire terminal
Dimensions: 128mm × 76mm × 38mm
Mounting Dimensions: 4 × ≤Ø4mm mounting holes (116mm × 70mm rectangular pattern)
Ordering and Model Selection（订货选型） | Product model | Product description |
|---|---|
| NKP-TEL-5C-2 | The network and power dual-combination surge protector features a 3kA discharge current, providing dual-path protection for both network and power lines, and supports either screw fixation or 35mm U-shaped rail mounting.。 |
| NKP-TEL-5C-2a | The network/power dual-combo surge arrester delivers 3kA discharge capacity with dual-channel protection, featuring compact design for screw mounting or 35mm U-rail installation。 |
| NKP-TEL-5C-3 | The network/control/power triple-combo surge arrester provides 3kA discharge capacity with triple-channel protection, designed for screw mounting or 35mm U-rail installation。 |
*Please send the inquiry email containing specific product requirements (such as model, quantity, technical parameters, etc.) to the designated email address salina@kejia.com.
（请将包含具体产品需求（如型号、数量、技术参数等）的询价邮件发送至指定邮箱 salina@kejia.com）
