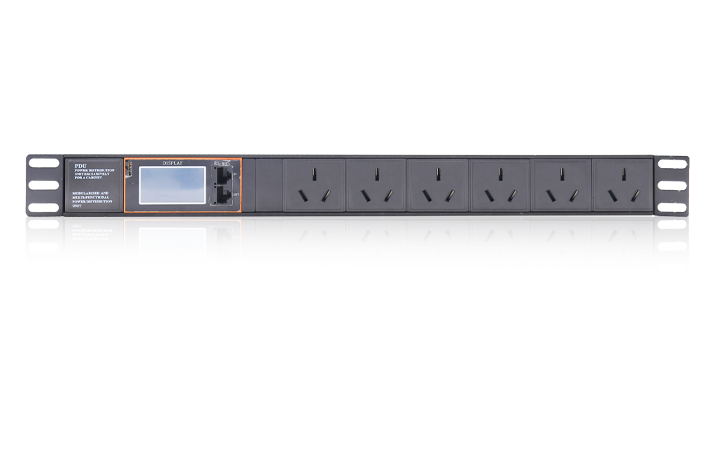

Technical Parameters（技术参数） This series of rack power distribution units can be equipped with lightning/surge protection modules to eliminate or reduce lightning-induced surges, voltage spikes, and line noise in power circuits, providing safer and more reliable protection for hardware devices connected to the power distribution sockets. The units can display real-time power consumption to monitor and prevent fire hazards caused by full load or overload conditions。
Precautions
Power Socket Polarity & Wiring Configuration
Electrode Polarity:
Left Terminal: Positive (+) DC output
Right Terminal: Negative (-) DC output
Top-Center Terminal: Ground (PE), must connect to system protection earth
Cable Routing Options:
Supports left-side or right-side power input wiring
Facilitates tidy cable management in racks

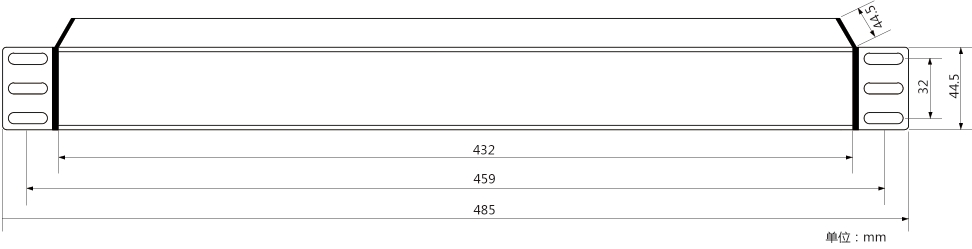

Product Dimension Drawing
Technical Parameters（技术参数） | Category | Specification |
|---|---|
| Output | 6×10A GB sockets (optional C13/C19) |
| Input | Left-side 3-core cable entry |
| Control Indicator | LCD display |
| Protection | Optional circuit breaker/SPD/overload protector |
| Max Total Current | 10A~32A |
| Rated Voltage | AC 220V |
| Voltage Measurement Range | 190~270VAC |
| Voltage Accuracy | ±3V |
| Current Accuracy | ±3% |
| Temperature Range | 0~50℃ (±2℃) |
| Humidity Range | 20%~90%RH |
| Humidity Accuracy | ±10%RH |
| Mounting Type | Bottom-side fixation |
| Mounting Dimensions | 459mm×32mm (four Φ6mm holes) |
| Overall Dimensions | 485mm×44.5mm×44.5mm |
| Operating Temperature | -10℃~+45℃ |
| Storage Temperature | -40℃~+80℃ |
| Relative Humidity | 5~95% (non-condensing) |
| Protection Rating | IP20 |
| Altitude | ≤3000m |
Ordering and Model Selection（订货选型） *Please send the inquiry email containing specific product requirements (such as model, quantity, technical parameters, etc.) to the designated email address salina@kejia.com.
（请将包含具体产品需求（如型号、数量、技术参数等）的询价邮件发送至指定邮箱 salina@kejia.com）
