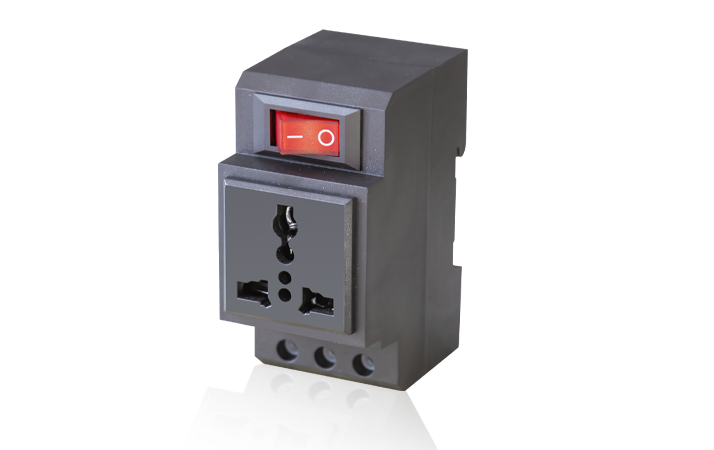

Installation & Application（安装应用） Application:
For power distribution in power, communication, and control cabinet equipment, compatible with other modular terminal devices.
Construction:
Black flame-retardant housing
High-quality GB-standard multi-purpose sockets
Simple operation for non-professional use
Standards & Configuration:
Designed per IEC standards
Standard DIN-rail mounting
Optional sockets: GB 10A, GB 16A, multi-function types
Precautions
The input neutral/ground wire (PE) of this rack power distribution unit must be securely grounded during operation.

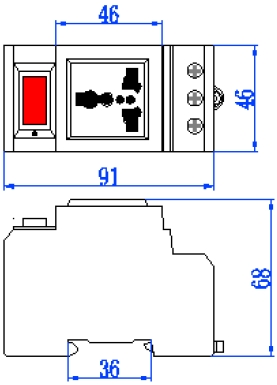

Product Dimension Drawing
Technical Parameters（技术参数） Input: Bottom terminal entry
Output Configuration:
1× 10A universal socket outlet
1× control switch
Electrical Parameters:
Maximum Total Current: 10A
Rated Voltage: AC 220V
Maximum Operating Voltage: 250V
Insulation Voltage: >2000V
Dimensions: 91mm × 68mm × 46mm (W×H×D)
Ordering and Model Selection（订货选型） *Please send the inquiry email containing specific product requirements (such as model, quantity, technical parameters, etc.) to the designated email address salina@kejia.com.
（请将包含具体产品需求（如型号、数量、技术参数等）的询价邮件发送至指定邮箱 salina@kejia.com）
