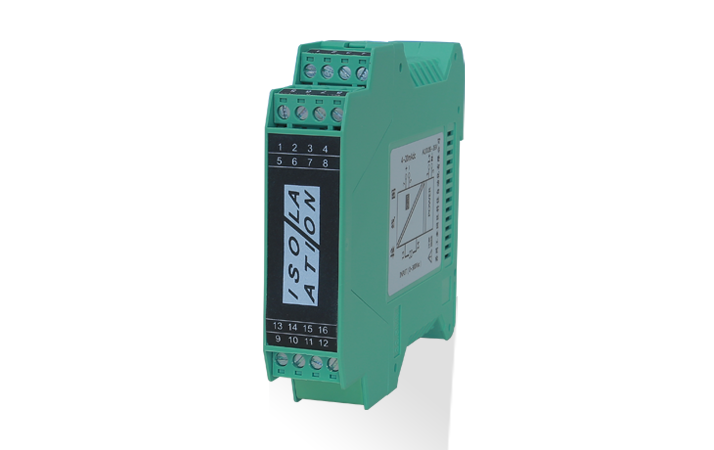

Installation & Application（安装应用） The NKB-20D series AC current transmitters are designed for real-time monitoring of electrical parameters in power grids, including substations, power plants, and industrial automation production lines. Their proportional analog DC outputs can be received by conventional RTUs or other data acquisition devices, serving as front-end converters for automated telemetry systems.
Product Dimension Drawing

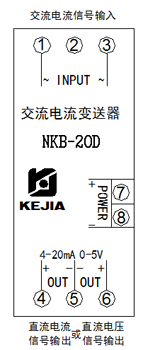

Product Installation Diagram
Technical Parameters（技术参数） | Model | NKB-20D | Housing Material | ABS |
| Accuracy | ±0.5% | Dimensions (W×H×D) | 100×22×112 (mm) |
| Rated Current Input | Optional: 0~1A, 0~5A, etc. | Weight | 0.2kg |
| Output Range | Optional: 0~20mA, 4~20mA, 0~5V, 0~10V, 1~5V, etc. | Mounting Method | 35mm DIN Rail Mounting |
| Auxiliary Working Power Supply | AC220V, etc. | Operating Temperature | -5℃ ~ +45℃ |
| Operating Frequency | 50±5Hz | Storage Temperature | -20℃ ~ +75℃ |
| Output Ripple | <1% (Peak-to-Peak) | Relative Humidity | <80% |
| Withstand Voltage | 2KV | Protection Class | IP20 |
| Temperature Influence | Within the standard operating temperature range, for every ±20℃ change, the allowable error variation is ±0.5% | ||
Ordering and Model Selection（订货选型） *Please send the inquiry email containing specific product requirements (such as model, quantity, technical parameters, etc.) to the designated email address salina@kejia.com.
（请将包含具体产品需求（如型号、数量、技术参数等）的询价邮件发送至指定邮箱 salina@kejia.com）
