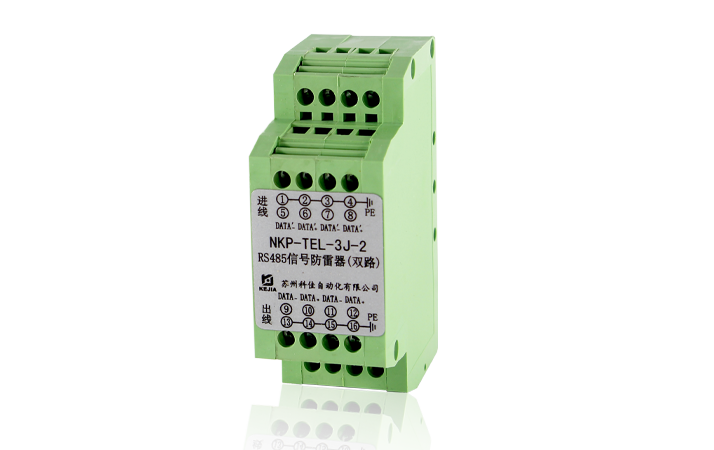

Installation & Application（安装应用） NKP-TEL-3J Series Digital Signal SPD
Designed for lightning/surge protection of RS232/RS485/RS422 communication ports, featuring:
Standard connectors (DB9 for RS232) + terminal blocks (RS485/422)
Series installation at equipment input (IN: signal line → OUT: protected device)
Mandatory PE terminal grounding (wire ≤1m to earth busbar)
Precautions for Surge Protector Installation
1、The lightning arrester is connected in series between the protected equipment and the signal channel.
2、The input terminal (IN) of the lightning arrester should be connected to the signal channel, while the output terminal (OUT) should be connected to the protected equipment and installed as close to it as possible. The connections must not be reversed.
3、Securely connect the grounding wire of the lightning arrester to the grounding bar of the lightning protection system. The grounding wire should be as short as possible and must not exceed 1 meter in length.
4、This product does not require special maintenance. Regular inspections of the lightning arrester should be conducted, especially before and during the thunderstorm season.
Product Dimension Drawing
Product Wiring Diagram
Technical Parameters（技术参数） | Model | NKP-TEL-3J-1 | NKP-TEL-3J-2(Dual) | NKP-TEL-3J-3 |
|---|---|---|---|
| Maximum Continuous Operating Voltage (Uc) | 18V DC | 24V DC | 24V DC |
| Voltage Protection Level (Up) | 1.0kV, C2:10kV/5kA, X-C(PE) | 1.1kV, C2:10kV/5kA, X-C(PE) | |
| AC Withstand Capability | 0.1A, 1s, 5 times, X-C(PE) | ||
| Impulse Withstand Capability | C2:10kV/5kA, X-C(PE) | ||
| Capacitance | ≤10pF, X-C(PE) | ||
| Insertion Loss | ≤0.3dB/10MHz | ||
| Response Time | 10-12s | ||
| Dimensions | 80mm×60mm×20mm | 80mm×60mm×30mm | 80mm×60mm×30mm |
| Weight | 0.1kg | ||
| Operating Temperature | -40°C to +70°C | ||
| Housing | Terminal-type green flame-retardant plastic | ||
| DIN-Rail Mounting | 35mm standard rail (EN60715) |
Ordering and Model Selection（订货选型） | Product model | Product description |
|---|---|
| NKP-TEL-3J-3 | RS422 Port SPD | 10kA IMax | Terminal Block | DIN-Rail。 |
| NKP-TEL-3J-2（Dual） | RS485 Port SPD | 10kA IMax | Dual-Channel | Terminal Block | DIN-Rail。 |
| NKP-TEL-3J-2（Single） | RS485 Port SPD | 10kA IMax | Terminal Block | DIN-Rail。 |
| NKP-TEL-3J-1 | RS232 Port SPD | 10kA IMax | 3-Wire Protection | Terminal Block。 |
| NKP-TEL-3C-1 | RS232 Port SPD | 5kA IMax | DB-9 | 3-Wire Protection。 |
| NKP-TEL-3C-9z | RS232 Port SPD | 10kA IMax | DB-9 | Full 9-Pin Protection。 |
*Please send the inquiry email containing specific product requirements (such as model, quantity, technical parameters, etc.) to the designated email address salina@kejia.com.
（请将包含具体产品需求（如型号、数量、技术参数等）的询价邮件发送至指定邮箱 salina@kejia.com）
