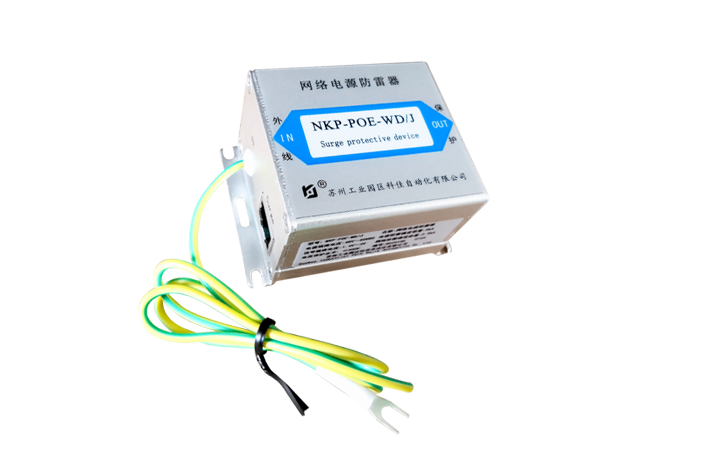

Installation & Application（安装应用） NKP-TEL-5C-3 Triple Protection Surge Protector for Network Cameras integrates a surge protector for network video signals, control signals, and AC/DC power into a single unit, making it a next-generation multi-functional combined surge protection product for cameras, surveillance systems, and video equipment.
The input terminal of the NKP-TEL-5C-3 surge protector should be connected to external wiring susceptible to lightning induction, while the output terminal should be connected to the protected equipment. During installation, a reliable grounding connection is essential to provide a proper discharge path for the surge protection components. Additionally, the surge protection grounding must be kept separate from the building's lightning protection grounding to prevent ground potential counterstrikes.
Precautions for Surge Protector Installation
1、The surge protector is connected in series between the protected equipment and the signal channel.
2、The input terminal (IN) of the surge protector should be connected to the signal channel, while the output terminal (OUT) should be connected to the protected equipment and installed as close as possible to it. The connections must not be reversed.
3、Securely connect the surge protector’s grounding wire to the lightning protection system’s grounding bar. The grounding wire should be as short as possible and must not exceed 1 meter in length.
4、This product does not require special maintenance. However, regular inspections of the surge protector should be conducted, especially before and during the thunderstorm season.
5、If a system malfunction is suspected to be caused by the surge protector, first check the corresponding failure indicator light. Alternatively, bypass the surge protector and reconnect the system. If the indicator light does not illuminate or the system returns to normal after removing the surge protector, it indicates that the surge protector is damaged and must be repaired or replaced immediately.

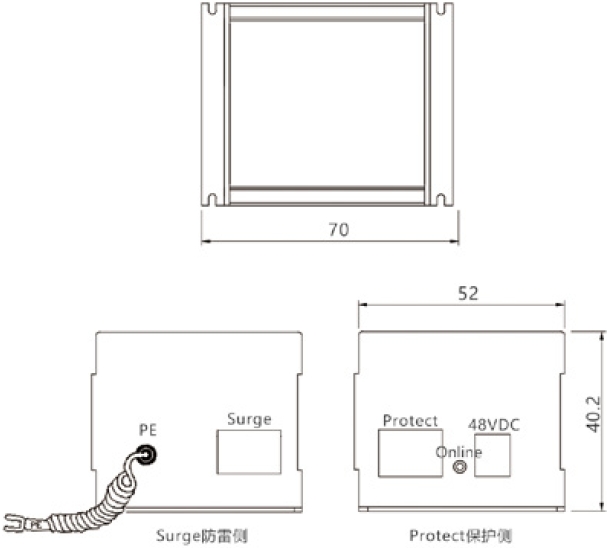

Product Dimension Drawing（mm）
Note:
Surge Input (RJ45 Port):
Data Lines: Pins 1, 2, 3, 6
Power Lines: Pins 4, 5 (+) / Pins 7, 8 (-)
Protect Output (RJ45 Port):
Data Lines: Pins 1, 2, 3, 6
Power Lines: Pins 4, 5 (+) / Pins 7, 8 (-)

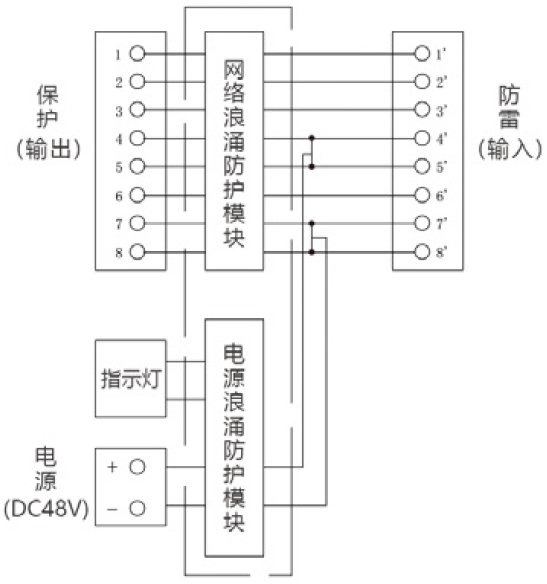

Product Wiring Diagram
Technical Parameters（技术参数） | Name: Network Power Surge Protector | Model: NKP-POE-WD/J | Technical Parameters | |
|---|---|---|---|
| Surge Input RJ45 Port: Data Lines: 1, 2, 3, 6 Power Lines: 4, 5 (+) 7, 8 (-) | Network Rated Voltage | 1.4V | |
| Network Maximum Voltage | 3.0V | ||
| Network Limited Voltage | Line-to-Line | ≥3.6V | |
| Line-to-Ground | 90V±20% | ||
| Network Nominal Discharge Current In (8/20μs) | 2.5kA | ||
| Protect Output RJ45 Port: Data Lines: 1, 2, 3, 6 Power Lines: 4, 5 (+) 7, 8 (-) | Network Voltage Protection Level Up (8/20μs,2.5kA) | Line-to-Line | ≤15V |
| Line-to-Ground | ≤300V | ||
| Power Rated Voltage | 48V | ||
| Power Maximum Voltage | 60V | ||
| Auxiliary Power Output Port: Center (+) Outer Ring (-) | Power Limited Voltage (Line-to-Line, Line-to-Ground) | 100V±20% | |
| Power Nominal Discharge Current In (8/20μs) | 5kA | ||
| Power Voltage Protection Level Up(8/20μs,5kA) | Line-to-Line | ≤15V | |
| Line-to-Ground | ≤300V | ||
| Status Indicator | Light On: Normal Operation Light Off: Fault | ||
Ordering and Model Selection（订货选型） | Product model | Product description |
|---|---|
| NKP-POE-WD/J | POE-powered 100Mbps network surge protector with 5kA maximum discharge current, standard RJ45 interface, designed to protect POE-powered equipment and supports rail mounting。 |
*Please send the inquiry email containing specific product requirements (such as model, quantity, technical parameters, etc.) to the designated email address salina@kejia.com.
