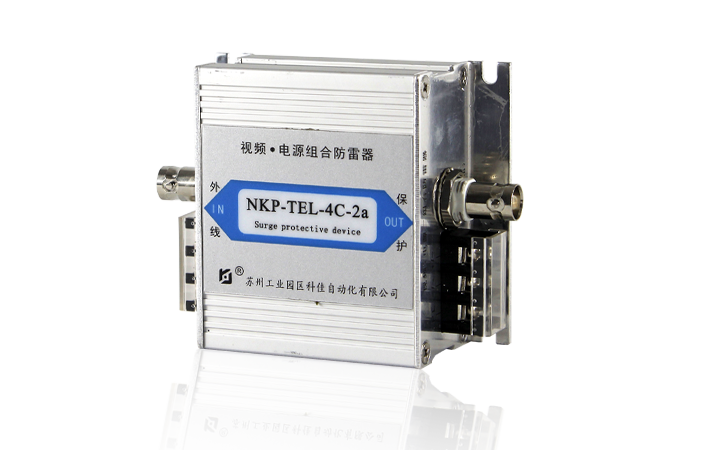

Installation & Application（安装应用） The NKP-TEL-4C-2A1 Compact Video/Power Dual Surge Protector integrates both video signal protection and AC/DC power surge protection into a single compact unit, representing a new generation of miniaturized multifunctional combined lightning protection products for camera devices, surveillance systems and video equipment. Utilizing advanced surge protection components to form multi-stage protective circuits, this specialized lightning protection device is suitable for various equipment configurations and interface types.
Precautions for Surge Protector Installation
1、The surge protector shall be connected in series between the protected equipment and the signal channel.
2、The input terminal (IN) of the surge protector must be connected to the signal channel, while the output terminal (OUT) shall be connected to and installed adjacent to the protected equipment. Reverse connection is strictly prohibited.
3、Securely connect the surge protector's grounding wire to the lightning protection system's grounding busbar. The grounding wire should be as short as possible, with a maximum length not exceeding 1 meter.
4、This product requires no special maintenance. Regular inspections should be conducted, particularly before and during the thunderstorm season.
5、If system malfunction occurs and the surge protector is suspected:
First check the corresponding failure indicator
Alternatively, bypass the surge protector and reconnect the system
If the indicator remains unlit or the system returns to normal when operating without the surge protector, this confirms the surge protector is damaged and must be immediately repaired or replaced.
Product Dimension Drawing

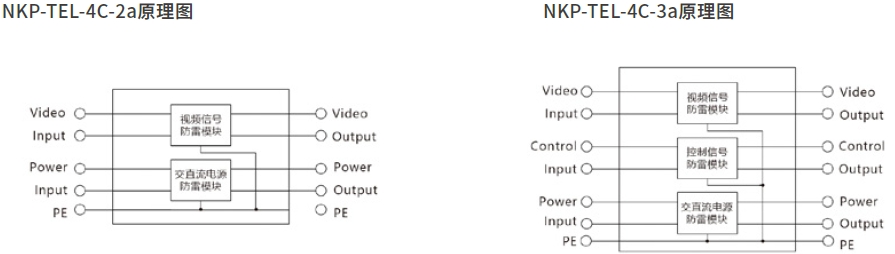

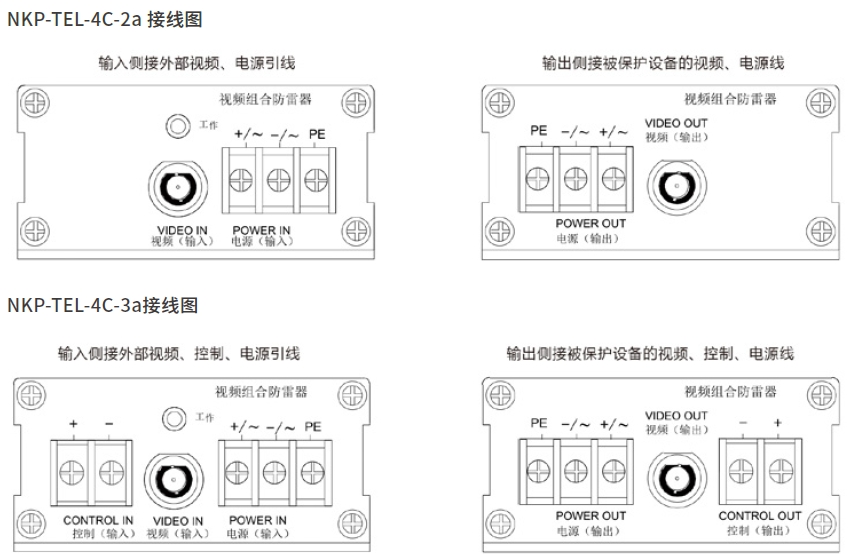

Product Wiring Diagram

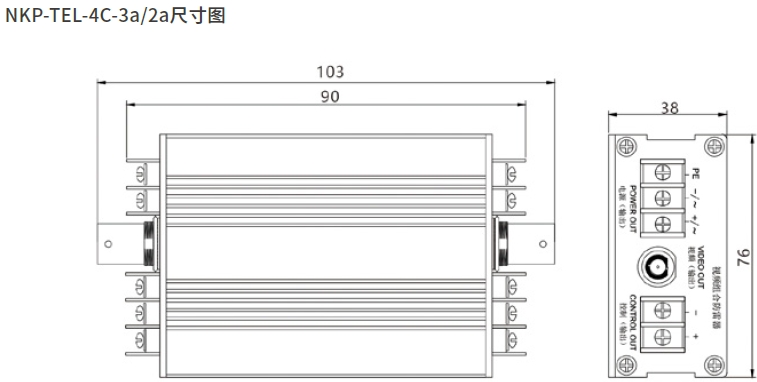

Product Dimensional Drawing
Technical Parameters（技术参数） | Model | NXP-TEL-4C-2a | ||
|---|---|---|---|
| Power Section | Control Section | ||
| Operating Voltage | 220V AC | Maximum Continuous Operating Voltage Uc | 8V DC |
| Maximum Continuous Operating Voltage Uc | 270V AC | Voltage Protection Level Up | 500V, C2:10kV/5kA, X-C(PE) |
| Nominal Discharge Current In | 3kA (8/20µs) | Insertion Loss | ≤0.5dB/20MHz |
| Maximum Discharge Current Imax | 6kA (8/20µs) | Impulse Withstand Capability | C2:10kV/5kA, X-C(PE) |
| Voltage Protection Level Up | 1.8kV | Impulse Reset Time | 30ms, 8V DC, 0.5A, X-C(PE) |
| Short-Circuit Current Withstand Capability | 300A | Capacitance | ≤30pF, X-C(PE) |
| Rated Load Current | 5A | Maximum Continuous Operating Voltage Uc | 8V DC |
| Rated Current | 200mA | ||
| Series Resistance | 3Ω+20% | ||
| Overload Failure Mode | Mode 3, X-C(PE) | ||
| Operating Conditions | Controlled Environment | ||
| Operating Temperature | -40°C~+70°C | ||
| Dimensions | 103mm×76mm×38mm | ||
| Mounting Dimensions | 76mm×70mm rectangular with 4 ≤Φ4 mounting holes | ||
Ordering and Model Selection（订货选型） | Product model | Product description |
|---|---|
| NKP-TEL-4C-2a | Video/Power Dual-Port SPD for fixed compact surveillance cameras (non-PTZ)。 |
| NKP-TEL-4C-3a | Video/Control/Power Triple-Port SPD for compact PTZ surveillance cameras |
| NKP-TEL-4C-G | Fiber Transceiver SPD with Video/Power/Digital/RJ45 multi-protection。 |
Mounting: Screw fixation or 35mm U-type DIN rail installation
*Please send the inquiry email containing specific product requirements (such as model, quantity, technical parameters, etc.) to the designated email address salina@kejia.com.
（请将包含具体产品需求（如型号、数量、技术参数等）的询价邮件发送至指定邮箱 salina@kejia.com）
