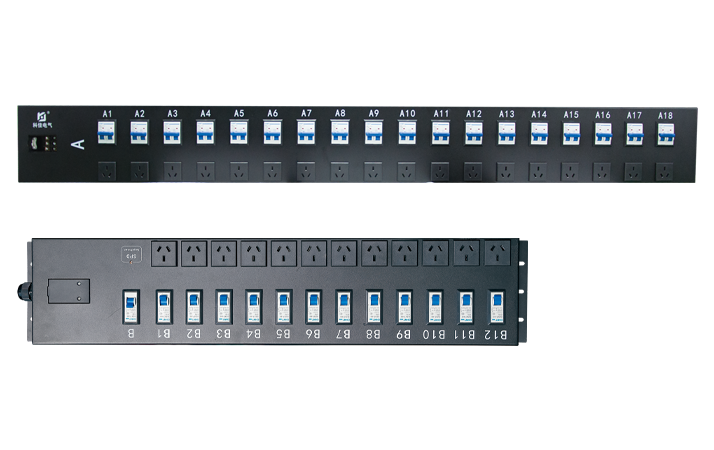

Installation & Application（安装应用） Application:
For power distribution in power, communication, and control cabinet equipment.
Construction:
Aluminum alloy housing with black powder coating
Equipped with high-quality GB-standard multi-purpose sockets and DC overload protectors (circuit breakers)
Features:
Reliable performance and aesthetic design
Complies with IEC standards
Compatible with standard rack mounting dimensions
Configuration Options:
Various socket types available for panel mounting
Choice of power input:
✓ Plug-type input
✓ Side-entry cable input
Four-direction mounting bracket options
Precautions for Surge Protector Installation
Electrode Polarity:
Left Terminal: Positive (+) DC output
Right Terminal: Negative (-) DC output
Top-Center Terminal: Ground (PE), must connect to system protection earth
Cable Routing Options:
Supports left-side or right-side power input wiring
Facilitates tidy cable management in racks

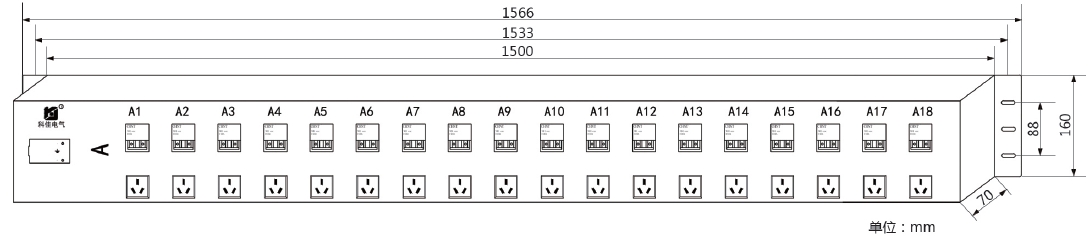

Product Dimension Drawing

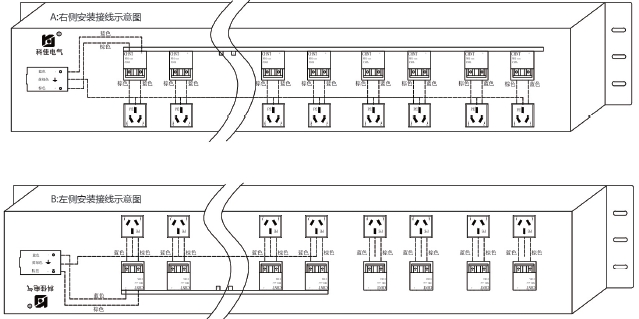

Product Wiring Diagram
Technical Parameters（技术参数） | Technical Specifications | |
|---|---|
| PDU Model | NKP-DY-U-32A |
| Input Voltage | DC 240V |
| Output Voltage | DC 240V |
| Power Input | 3×6 mm² cable |
| Output Sockets | 10× GB Standard 10A |
| Maximum Total Current | 32A |
| Insulation Voltage | >2000V AC |
| Interface Indicators | |
| Output | (8) IEC320 C13 |
| Input | (1) IEC320 C20 input; C19 to C20 power cable, 3m |
| Protection | (1OR8) 16 AMP circuit breaker |
| Communication | Http, Https, SNMP, DHCP, UDP |
| SSL Indicator | (1) Yellow LED |
| DHCP Indicator | (1) Green LED |
| PDU Power Status | (8) Green LED |
| Circuit Breaker Status | (8) Red LED |
| Power Monitoring | (1) RJ45 Ethernet port |
| PDU ID | LED display |
| Mechanical Characteristics | |
| Housing Material | Aluminum alloy |
| Dimensions | 1560mm×160mm×70mm (W×H×D) |
| Installation | 1U rack mount, bottom-side fixation |
| Operating Environment | |
| Operating Temperature | -10°C to +45°C |
| Storage Temperature | -40°C to +80°C |
| Relative Humidity | 5% to 95% (non-condensing) |
| Protection Rating | IP20 |
| Altitude | ≤3000m |
Ordering and Model Selection（订货选型） *Please send the inquiry email containing specific product requirements (such as model, quantity, technical parameters, etc.) to the designated email address salina@kejia.com.
