Installation & Application（安装应用） The KEJIA KDY Series Power Distribution Unit utilizes high-elasticity, high-conductivity copper sheets and premium engineering plastics, featuring integrated solid copper busbar technology for superior conductivity, reduced heat generation, and extended lifespan. The electroplated finish ensures rust resistance, while the durable switch contacts and secure plug retention mechanism effectively prevent arcing caused by poor contact. This reliable and aesthetically designed product is essential for household power distribution applications, complying with GB/T 2099.1 socket standards.
Precautions
Power Limit: Do not exceed the rated maximum power.
Environment: Keep away from heat sources and humid conditions.
Cable Management: Avoid bundling the power cord.
Connection: Ensure plugs are fully inserted into sockets.
Safety: Never handle plugs with wet hands.
Damage: Discontinue use if the outer insulation is damaged or wires are exposed.
Malfunction: Stop use immediately if abnormal operation, odors, or overheating occurs.
Child Safety: Keep out of reach of children.
Maintenance: Do not disassemble the rear cover. Contact authorized service for repairs.

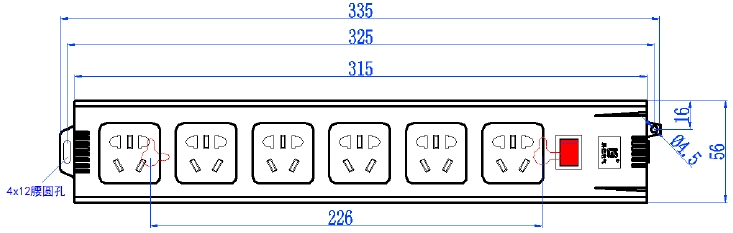

Product Dimension Drawing
Product Dimensional Drawing
Technical Parameters（技术参数） Rated Voltage: AC 220V
Operating Current: 10A
Max. Working Voltage: 250V
Rated Power: 2500W
Dimensions: 335×56×32mm (6P)
Cable Length: 3m
Ordering and Model Selection（订货选型） *Please send the inquiry email containing specific product requirements (such as model, quantity, technical parameters, etc.) to the designated email address salina@kejia.com.
（请将包含具体产品需求（如型号、数量、技术参数等）的询价邮件发送至指定邮箱 salina@kejia.com）
