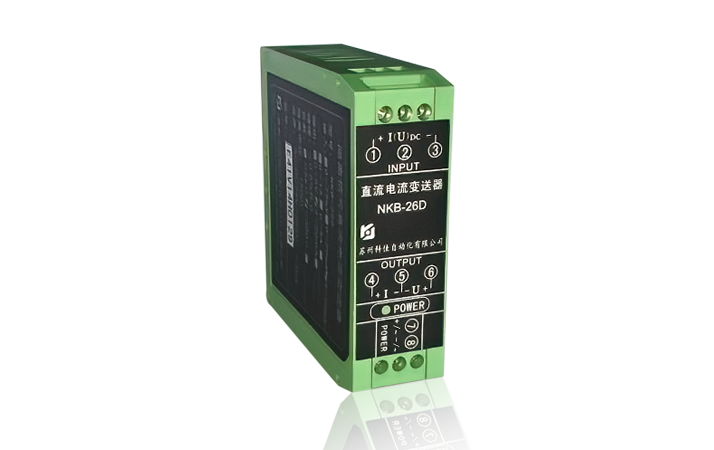

Installation & Application（安装应用） The NKB-26D series DC current transmitters are designed to monitor real-time operational electrical parameters of DC current in substations, power plants, and factory automation production lines. Their proportionally output analog DC signals can be received by conventional RTUs or other data acquisition devices, serving as front-end DC electrical conversion equipment for automatic telemetry systems.
Product Dimension Drawing

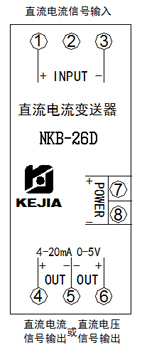

Product Installation Diagram
Technical Parameters（技术参数） | Model | NKB - 26D | Housing Material | PA66 |
| Accuracy | ±0.5% | Dimension (W×H×D) | 25×80×85 (mm) |
| Rated Input Current | 0~75mV, optional | Weight | 0.4kg |
| Output Range | 0~20mA, 4~20mA, 0~5V, 0~10V, 1~5V, etc., optional | Mounting Method | 35mm DIN Rail Mounting |
| Auxiliary Working Power Supply | AC220V±15%, 4VA, etc. | Operating Temperature | -5℃ ~ +45℃ |
| Output Ripple | < 0.2% (Peak - to - Peak) | Storage Temperature | -20℃ ~ +75℃ |
| Input Power Consumption | < 3VA | Relative Humidity | < 80% |
| Withstand Voltage | 2kV | Protection Class | IP20 |
| Temperature Influence | Within the standard temperature operating range, for every ±20℃ change, the allowable error variation is ±0.5% | ||
Ordering and Model Selection（订货选型） *Please send the inquiry email containing specific product requirements (such as model, quantity, technical parameters, etc.) to the designated email address salina@kejia.com.
（请将包含具体产品需求（如型号、数量、技术参数等）的询价邮件发送至指定邮箱 salina@kejia.com）
