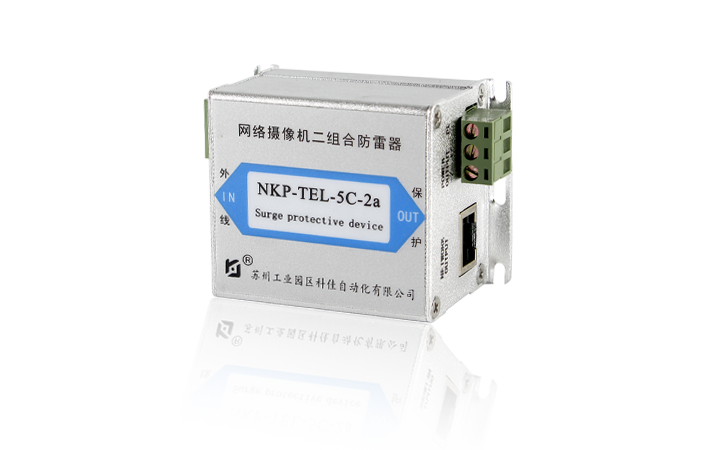

Installation & Application（安装应用） NKP-TEL-5C-2a Compact Dual-Combo Surge Protector for IP Cameras
This next-generation hybrid SPD integrates both network video signal and AC/DC power surge protection into a single compact unit, specifically designed for surveillance cameras and video equipment systems.
Key Installation Notes:
Excludes control line protection
Input terminal must connect to lightning-exposed wiring
Output terminal connects to protected equipment
Precautions for Surge Protector Installation
1、The surge protector is connected in series between the protected equipment and the signal channel.
2、The input terminal (IN) of the surge protector should be connected to the signal channel, while the output terminal (OUT) should be connected to the protected equipment and installed as close as possible to it. The connections must not be reversed.
3、Securely connect the surge protector’s grounding wire to the lightning protection system’s grounding bar. The grounding wire should be as short as possible and must not exceed 1 meter in length.
4、This product does not require special maintenance. However, regular inspections of the surge protector should be conducted, especially before and during the thunderstorm season.
5、If a system malfunction is suspected to be caused by the surge protector, first check the corresponding failure indicator light. Alternatively, bypass the surge protector and reconnect the system. If the indicator light does not illuminate or the system returns to normal after removing the surge protector, it indicates that the surge protector is damaged and must be repaired or replaced immediately.

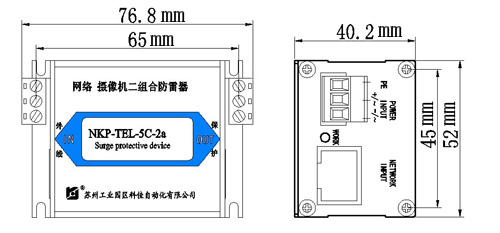

Product Dimension Drawing

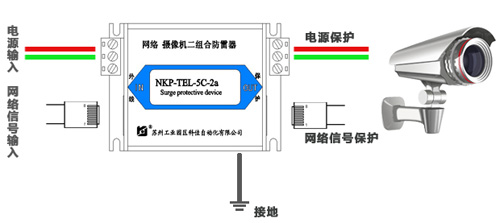

Product Wiring Diagram
Product Dimensional Drawing
Technical Parameters（技术参数） | Model | NKP-TEL-5C-2/2a | ||
|---|---|---|---|
| Power Supply Section | Network Signal Section | ||
| Operating Voltage | 220V AC | Operating Voltage | 5V DC |
| Maximum Continuous Operating Voltage UC | 270V AC | Maximum Continuous Operating Voltage UC | 9V DC |
| Nominal Discharge Current In | 3kA (8/20µs) | Voltage Protection Level Up | 800V, C2:6kV/3kA, X-C(PE) |
| Maximum Discharge Current Imax | 6kA (8/20µs) | AC Withstand Capability | 0.1A, 1s, 5 times, X-C(PE) |
| Voltage Protection Level Up | 1.8kV | Impulse Withstand Capability | C2:6kV/3kV, X-C(PE) |
| Short-Circuit Current Withstand Capability | 300A | Capacitance | ≤30pF, X-C(PE) |
| Rated Load Current | 5A | Impulse Reset Time | 30ms, 9VDC, 0.5A, X-C(PE) |
| Insertion Loss | ≤0.5dB/60MHz | ||
| Rated Current | 200mA | ||
| Series Resistance | 10Ω±20% | ||
| Overload Failure Mode | Mode 3, X-C(PE) | ||
| Transmission Rate | 10-100Mbps | ||
| Network Interface | RJ-45 8-wire Ethernet Port | ||
| Power Interface | AC single-phase or DC two-wire terminal | ||
| Usage Conditions: Controlled environment | |||
| Operating Temperature: -40°C to +70°C | |||
| Dimensions: 76.8mm × 52mm × 40.2mm | |||
| Installation Dimensions: 65mm × 45mm rectangular with 4 ≤ Φ4 mounting holes or rail mounting | |||
Ordering and Model Selection（订货选型） | Product model | Product description |
|---|---|
| NKP-TEL-5C-2 | Network and power dual-port surge protective device (SPD), discharge current 3kA, dual-circuit protection for network and power lines, screw-mounted or compatible with 35mm U-shaped DIN rail installation。 |
| NKP-TEL-5C-2a | Compact Network/Power Combined SPD - 3kA discharge capacity, dual-circuit protection for both network and power lines, screw or 35mm DIN rail mounting, compact design。 |
| NKP-TEL-5C-3 | Triple-Port SPD for Network/Control/Power Lines - 3kA discharge current, three-way protection for network/control/power circuits, screw or 35mm DIN rail installation。 |
*Please send the inquiry email containing specific product requirements (such as model, quantity, technical parameters, etc.) to the designated email address salina@kejia.com.
（请将包含具体产品需求（如型号、数量、技术参数等）的询价邮件发送至指定邮箱 salina@kejia.com）
