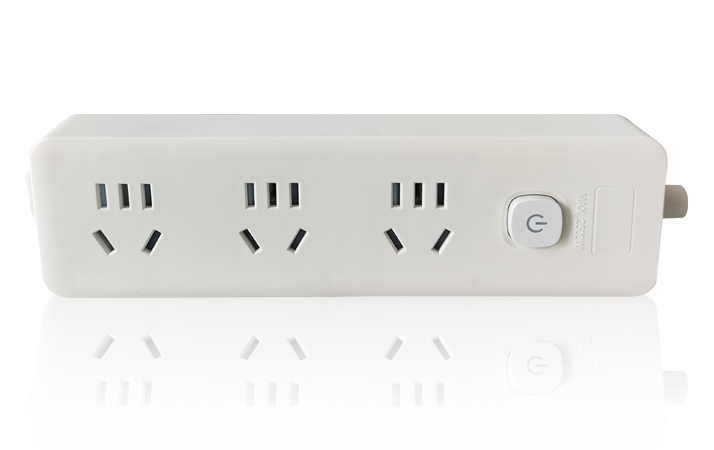

Installation & Application（安装应用） KEJIA KDY Series Power Distribution Unit
Constructed with high-elasticity copper conductors and premium engineering plastics, featuring integrated copper busbar technology for enhanced conductivity, reduced heat generation, and extended durability. Electroplated housing ensures rust resistance. Precision switch contacts and secure socket design prevent arcing from poor connections. Essential for household power distribution。
Precautions
Power Limit: Do not exceed the rated maximum power.
Environment: Keep away from heat sources and humid conditions.
Cable Management: Avoid bundling the power cord.
Connection: Ensure plugs are fully inserted into sockets.
Safety: Never handle plugs with wet hands.
Damage: Discontinue use if the outer insulation is damaged or wires are exposed.
Malfunction: Stop use immediately if abnormal operation, odors, or overheating occurs.
Child Safety: Keep out of reach of children.
Maintenance: Do not disassemble the rear cover. Contact authorized service for repairs.

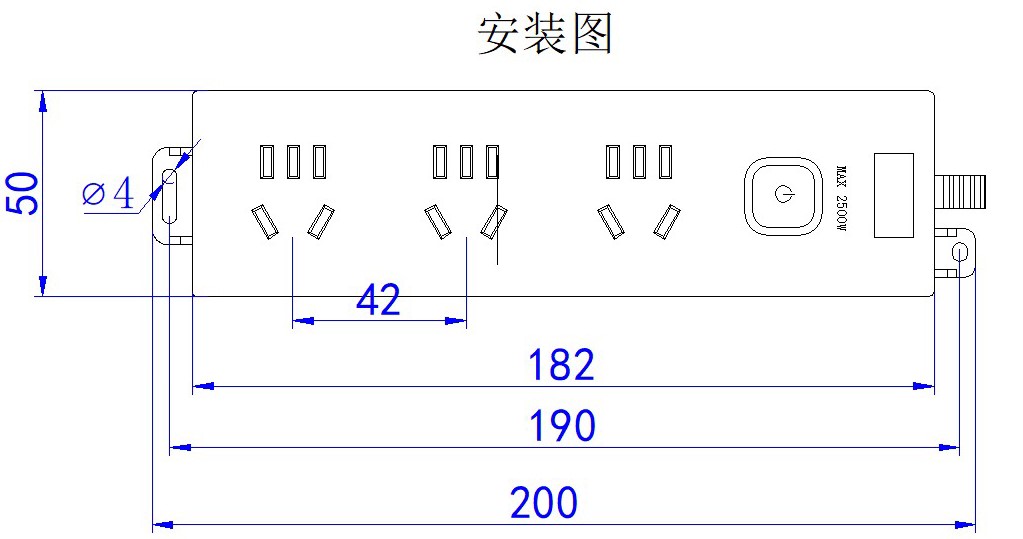

Product Dimension Drawing
Product Dimensional Drawing
Technical Parameters（技术参数） 5-Pin New GB Standard Safety Socket
Rated Voltage: AC 220V
Operating Current: 10A
Max. Voltage: 250V
Power Rating: 2500W
Dimensions: 200×50×29mm (3P)
Material: PC Alloy
Cord Length: 3m
Ordering and Model Selection（订货选型） *Please send the inquiry email containing specific product requirements (such as model, quantity, technical parameters, etc.) to the designated email address salina@kejia.com.
（请将包含具体产品需求（如型号、数量、技术参数等）的询价邮件发送至指定邮箱 salina@kejia.com）
