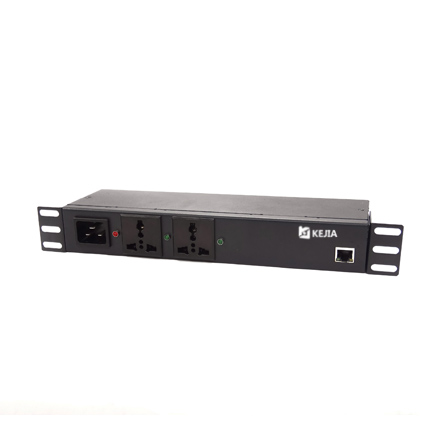

intelligent PDU_ switched PDU, univeral outlet

3.84kW Switched Intelligent PDU, 250V (2 universal outlet), 230V/16A Input, Remote Outlet Control via Network, 6.6ft Cord, 1U Horizontal

Model Number: NKP-DY-TU-16a(ZN16-W2-1L1H)

  • 3.84kW 16A 250V switched intelligent PDU
  • 1U horizontal rack-mount installation(brackets)
  • 2 outlet (2 universal outlet front), 1 inlet (1 C20 front)
  • Protocols: Http, Https, SNMP, DHCP, UDP
  • Outlet Control: Individual, Group, Schedule, Auto Ping
  • Power Delay: Power On/Off sequence can be defined
  • LED indicator for power status
  • RJ45 connector for network connection
Compare
编码: units 分类: 标签: , , , , ,

产品描述


Intelligent PDU(Power Distribution Unit)

Features & FunctionsMeteredMonitoredSwitched
reliable power distribution
local power meter(A/V)optional
local ENV meter(Temp./RH)optionaloptionaloptional
remote power monitoring via network (A/V/KWh...) optional
remote ENV monitoring via network (Temp./RH) optionaloptional
remote switch/control on PDU level via network
remote switch/control on outlets level via network optional



Brief Introduction

KEJIA NKP-DY-TU series switched intelligent PDUs(Power Distribution Units) offer real-time monitoring on electricity factors for critical IT equipments via local digital meter or remote network systems. Power alert or event log supports custom notification of user-specified remote conditions via email, SNMP, Web, DHCP interface. Ensures a safer, greener and more convenient power distribution environment in unmanned server rooms, data centers, network closets, etc. High-quality design includes AL housing and standard 19” rack mount installation.



Main Features

  • 3.84kW 16A 250V switched intelligent PDU
  • 1U horizontal rack-mount installation(brackets)
  • 2 outlet (2 universal outlet front), 1 inlet (1 C20 front)
  • Protocols: Http, Https, SNMP, DHCP, UDP
  • Outlet Control: Individual, Group, Schedule, Auto Ping
  • Power Delay: Power On/Off sequence can be defined
  • LED indicator for power status
  • RJ45 connector for network connection



Typical Application

Ideal for network configurations in datacenters and heavily configured equipment racks.



Product Parameter

Model No.NKP-DY-TU-16a(ZN16-W2-1L1H)
PDU TypeIntelligent PDU/Switched
INPUT
Nominal Input Voltage220V, 230V
Maximum Input Current16A
Input Receptacles(1) C20
Inlet TypeIEC320 C20
Input Cord Length(m/ft)2 m/6.6ft (standard)
Input Phase3 phase/Three phase
OUTPUT
Output Capacity3.84kVA(415/240V), 3.68kVA(400/230V), 3.52kVA(380/220V) 16A max per universal outlet
Frequency 50/60Hz
Output Receptacles(2) universal outlet
Output Nominal VoltageSingle phase 240V(415V), 230V(400V), 220V(380V)
Output Maximum Current16A
Outlet Typeuniversal outlet 16A/250V
CIRCUIT PROTECTION
Overload ProtectionN/A
LED Indicator INPUT STATUS:(1) RED LED
OUTPUT STATUS: (2) GREEN LED
COMMUNICATION
Network ProtocolHttp, Https, SNMP, DHCP, UDP
Network Interface(1)RJ45 for Ethernet
Outlet Controlswitch on/off outlets remotely via Ethernet
Onboard Display /
OPERATIONAL ENVIRONMENT
Storage Temperature Range 0℃-40℃(0℉-104℉)
Operating Elevation<3000m(9873ft)
Housing MaterialAluminum alloy
Unit Dimension(HWD/mm)482*44*95
Unit Weight(NW/kg) -
Shipping Dimension(HWD/mm) -
Shipping Weight(GW/kg) -
PDU Mounting Form1U Horizontal
ACCESSORIES
Package IncludesRack mounting brackets, product manual, IEC C19 to IEC C14 extension power cord
TEST STANDARDS
Product TestCE-LVD, CE-EMC, RoHS-2011/65/EU compliant
CERTIFICATION
Regulatory Approvals CE, RoHS
WARRANTY
Product Warranty Period2-year warranty





Digrams

..............



PDU "Model Number" Guides

KEJIA PDU Model No. Guides
