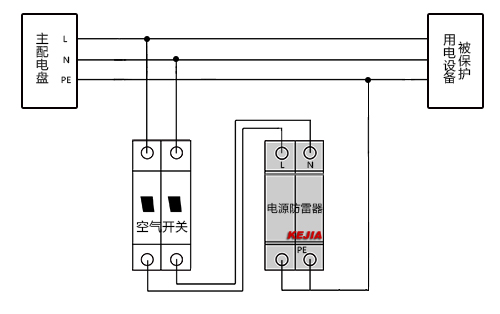

Installation & Application（安装应用） AC System: When using KEJIA® KDY series power surge protectors for three-phase four-wire power systems, four units can be connected in parallel between the protected terminals and ground (L, N lines and PE), which is called the TN-S connection method. Alternatively, three units can be connected in parallel between L and N lines, with an additional gas discharge surge protector connected between N and PE lines, known as the TT connection method. For single-phase power systems, one surge protector can be connected in parallel between each of the L and N lines to ground (PE).
DC System: When using KEJIA® KDY series DC power surge protectors, two surge protectors can be connected in parallel between the two lines of the DC power system and ground (+, - lines and PE), and the PE terminal grounding must be reliable.
RS-485 Communication Series (optional): The power surge protector is a combination product of power surge protection and NKP-LJ-04 surge detection communication. This product features a high-brightness LED digital display that can collect the failure status of the surge protection module, lightning strike counts, and lightning strike occurrence times, and send signals to the background management system through the RS485 interface. For the button operations and communication methods of the NKP-LJ-04 communication module, please refer to its user manual.

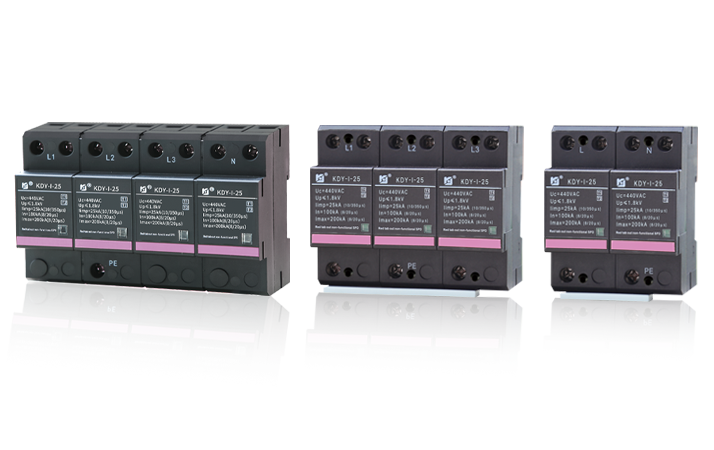

KDY-I-25R/440/2P
KDY-I-25R/440/3P
KDY-I-25R/440/4P
Technical Parameters（技术参数） Nominal voltage Un: 220/380V AC
Maximum continuous operating voltage Uc: 385V AC
Nominal discharge current In: 100kA (8/20μs)
Maximum discharge current Imax: 200kA (8/20μs)
Impulse discharge current Iimp: 25 kA (10/350μs)
The voltage protection level is Up: 1.8kV
Front empty opening or fuse F: 315A
Remote signal contact: one set normally closed, one group normally open; 125V AC 1A； 250V DC 0.5A
Top Lead L/N: ≥16mm2
Lower lead PE: ≥25mm2
Mounting: 35mm DIN rail, EN60715 standard
Notice
During installation, the PE end of the surge protector must be reliably connected with the nearest external earth end to provide a smooth discharge channel for the surge protective device.
Ordering and Model Selection（订货选型） The KDY-I-25R/440/4P is suitable for TN-S three-phase five-wire power systems;
The KDY-I-25R/440/3P is suitable for TN-C three-phase four-wire systems;
The the KDY-I-25R/440/2P is suitable for single-phase two-wire/three-wire systems.
*Please send your quotation email containing specific product requirements (including model numbers, quantities, technical specifications, etc.) to the designated email: salina@kejia.com.
（请将包含具体产品需求（如型号、数量、技术参数等）的询价邮件发送至指定邮箱 salina@kejia.com)
Download
| File name | Product type | Download |
|---|---|---|
| KDY-I-25R/440/4P power surge protector with remote signal. | Instruction manual | Download |
