Installation & Application（安装应用） KDY-I-12.5 is T1 class power surge protective device, which designed by IEC&GB standard. The product has high lightning discharge capacity, and the maximum current capacity of a single module is greater than 12.5kA (10 / 350), which can prevent various surges including direct lightning. It is applied to the T1 class lightning protection of power supply of equipment system in areas with high risk（LPZ0A or LPZ0B &LPZ1 junction area）.
KDY-I-12.5 surge protective device have no freewheeling, to avoid the power failure of common gap SPD immediately after arc extinguishing, and no leakage current. It has 35mm standard guide rail installation mode, and each module occupies two standard installation positions, which is easy to install and maintain.
Attention:
a、 Failure indication：window displays red
b、 All the exposed copper part of wiring should to add the insulating sleeve, the wiring connecting surge protective device must be as short as possible
c、 It can only be used under specified conditions, if the given value is exceeded, the surge protector itself or equipment may be damaged;
d、 The user shall take full responsibility for the quality problems caused by the user’s unauthorized disassembly of products or unreasonable use

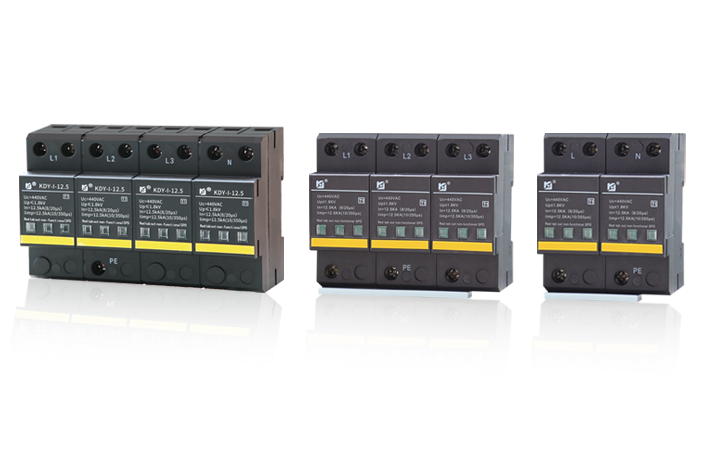

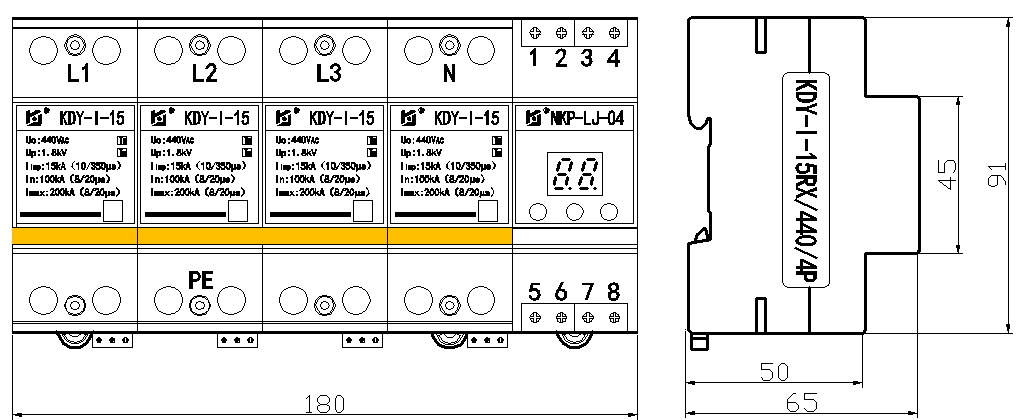

KDY-I-12.5/440/3P
KDY-I-12.5/440/4P
Technical Parameters（技术参数） ●Rated voltage Un：220VAC
●Maximum continuous operating voltage Uc：440VAC
●Nominal discharge current In（8/20μs）：12.5kA
●Impulse current Iimp（10/350μs）:12.5kA
●Voltage protection level Up≤1.8kV
●Response time tA≤25ns
●Front fuse：100AgG
●Connecting wire：6mm2-25mm2
●Installation：35mm standard guide rail
●Operating ambient temperature：-40℃~+70℃
●Enclosure protection class：IP20
Ordering and Model Selection（订货选型） KDY-I-12.5/440/4P suitable for TN-S three-phase five-wire power supply system；
KDY-I-12.5/440/3P suitable for TN-C three-phase four-wire power supply system；
KDY-I-12.5/440/2P suitable for single-phase two-wire/three-wire power supply system。
*Please send your quotation email containing specific product requirements (including model numbers, quantities, technical specifications, etc.) to the designated email: salina@kejia.com.
（请将包含具体产品需求（如型号、数量、技术参数等）的询价邮件发送至指定邮箱 salina@kejia.com)
Download
| File name | Product type | Download |
|---|---|---|
| KDY-I-12.5 Power Surge Protector PDF Document | Instruction manual | Download |
