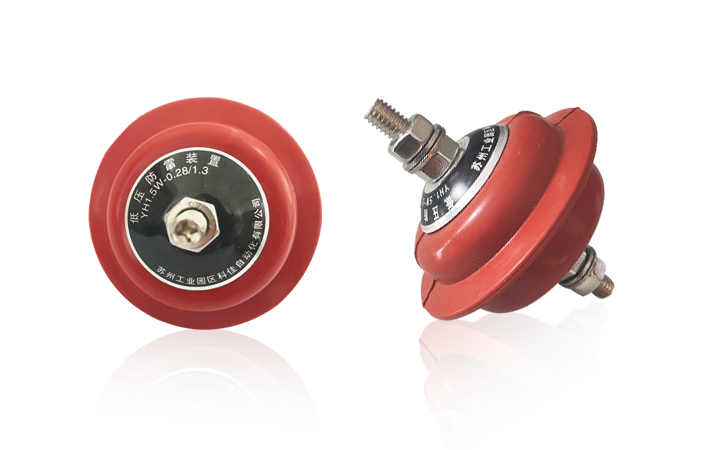

安装应用 YH1.5W metal-oxide arrester for power distribution and substations (hereinafter referred to as "arrester") is suitable for atmospheric overvoltage protection of transmission and distribution equipment in AC power systems, as well as for limiting switching overvoltages generated by vacuum circuit breakers during switching operations of capacitor banks, electric furnace transformers and motors.

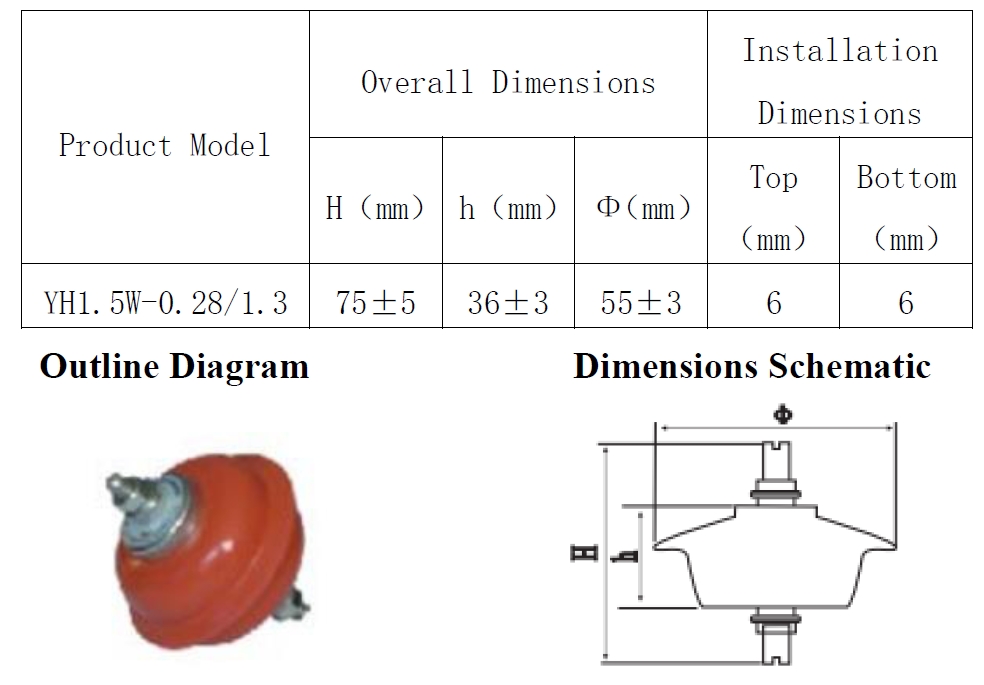

Product Dimension Drawing
YH1.5W-0.28/1.3 Installation Conditions
Maximum altitude: ≤1,000m ASL
Ambient temperature range: -40℃ to +40℃
Installation: Suitable for both indoor and outdoor use (max outdoor wind speed: 35m/s)
Seismic zone: Areas with seismic intensity ≤VII
Electrical requirements: Continuous power-frequency voltage ≤ arrester's MCOV (Maximum Continuous Operating Voltage)
Environmental restrictions:
No heavy pollution present
No corrosive gases that may damage metal/insulating components
Mechanical requirements: Locations free from excessive vibration/mechanical shock
YH1.5W-0.28/1.3 Operation and Maintenance
Installation Adjustment
If slight shaking and internal rattling are detected during installation:
• Open the bottom cover in a clean environment
• Rotate the housing until rattling ceases
• Securely reassemble to original specifications
Annual Preventive Testing (To be performed during thunderstorm season):
1) Leakage Current Test
• At maximum continuous operating voltage:<650μA
• OR at 0.75×U1mA DC voltage:<50μA
2) Insulation Resistance Test
• Using 2500V megger: Measured values must comply with table requirements
3) Sealing Test
• Fully submerge arrester in 60°C water
• Pass criteria: No continuous bubbles within 5 minutes
(Occasional isolated bubbles are acceptable)
• If continuous bubbles emerge: Replace gasket and retest
Technical Parameters（技术参数） | Product Model | System Nominal Voltage（kV） | Arrester Nominal Voltage（kV） | Continuous Operating Voltage（kV） | Residual Voltage under Lightning Impulse Current（kV ≯） | DC 1mA Reference Voltage（kV ≮） | 2ms Square Wave Current-Carrying Capacity（A） | Weight（kg） | Creepage Distance（mm） |
| YH1.5W-0.28/1.3 | 0.22 | 0.28 | 0.24 | 1.3 | 0.6 | 50 | 0.12 | 45 |
订货选型 | Product model | Product description |
|---|---|
| YH1.5W-0.28/1.3 | PCB-mounted surge protective device, system nominal voltage=0.22kV, arrester nominal voltage=0.28kV, maximum continuous operating voltage=0.24kV。 |
