Installation & Application（安装应用） Lightning rods and nets can prevent direct lightning strikes from the outside of buildings, while damage caused by induced lightning and surge voltages introduced into the room through cables, communication lines, metal pipes, etc., cannot be avoided by external lightning protection systems. Therefore, indoor electrical equipment, communication networks, household appliances, etc., need to be protected with special surge protective devices.
KEJIA® KDY series surge protective device is designed according to IEC standards, which can connect the protected line to the equipotential system in the shortest possible time, limit the surge to a certain voltage protection level, and quickly release the high-voltage pulse energy caused by lightning strike to the ground, reduce the potential difference between the wirings, and play a role in protecting the user's power distribution equipment.
Apply
KEJIA® KDY-I-15 surge protective device has a large current capacity, is a T1 class switching type first-class power surge protector, the surge protector has no leakage, no freewheeling, reliable performance, stable operation. According to the principle of lightning protection, after the lightning energy is released once, there is still a high residual voltage on the power line, and the lightning energy should be released step by step through the surge protector after the lightning protection system, so as to effectively protect the terminal electrical equipment.
When the KEJIA® KDY-I-15 surge protective device is used, four pieces of "KDY-I-15 type" can be used for the three-phase four-wire power supply and connected between the protected end and the earth (L1, L2, L3, N line and PE) line, which is called TN-S connection; For the three-phase three-wire power supply, three pieces of "KDY-I-15 type" can be connected between the protected end and the earth (L1, L2, L3 line and PE) line; The lightning protection of the single-phase power supply can be connected to a "KDY-I-15 type" surge protective device between L and N lines to ground (PE).

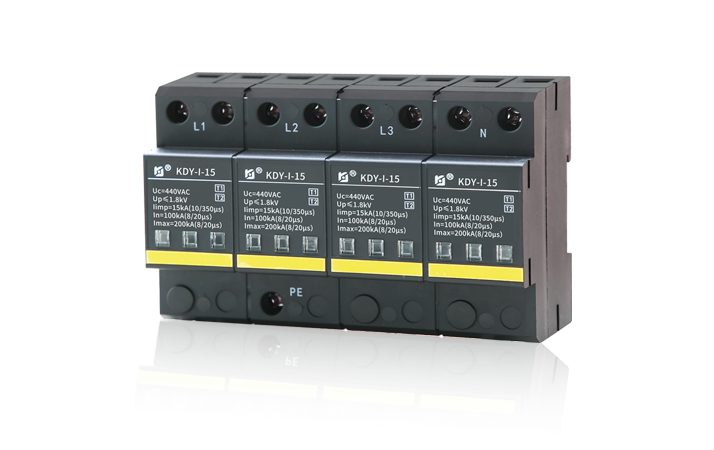

KDY-I-15/440/2P
KDY-I-15/440/3P
KDY-I-15/440/4P
Technical Parameters（技术参数） Nominal voltage Un : 220/380V AC
Maximum continuous operating voltage Uc: 440V AC
T1: Nominal discharge current In: 100kA(8/20μs).
Impulse discharge current Iimp: 15 kA (10/350 μs).
The voltage protection level is Up:1800V
T2: Nominal discharge current In: 100kA(8/20μs).
Maximum discharge current Imax: 200kA (8/20μs).
The voltage protection level is Up:1800V
Back-up protective SCB: KHB-I-25/4P or fuse: 315A
Top Lead L/N: ≥16mm2
Lower lead PE: ≥25mm2
Mounting: 35mmDIN rail,EN60715 standard
Notice
During installation, the PE end of the surge protector must be reliably connected with the nearest external earth end to provide a smooth discharge channel for the surge protective device.
订货选型 KDY-I-15/440/4P is applicable to the TN-S three-phase five-wire power supply system.
KDY-I-15/440/3P is applicable to the TN-C three-phase four-wire power supply system.
KDY-I-15/440/2P is applicable to the single-phase two-wire/three-wire power supply system.
