Installation & Application（安装应用） Installation Notes for Surge Protective Device (SPD)
1、Wiring Connections
Install strictly according to the wiring diagram:
• L1/L2/L3: Phase conductors
• N: Neutral conductor
• PE: Grounding conductor
2、Safety Precautions
MANDATORY: Disconnect all power sources before installation - live working is prohibited.
All connecting wires must comply with specified cross-section and voltage ratings .
3、Fault Indication
Red indicator in the monitoring window signals SPD failure - replace immediately with certified replacement module.
4、Grounding Requirements
Lightning protection grounding must meet IEC 62305-3 standards:
• Grounding conductor length: Minimized (recommended <0.5m)
• Ground resistance: <4Ω (measured per IEEE Std 81)
Compliance Note: Installation shall conform to local electrical codes and manufacturer's technical specifications.

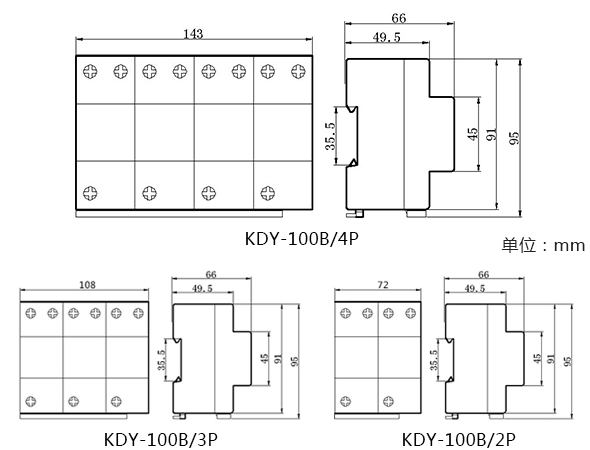

Dimensional Drawing

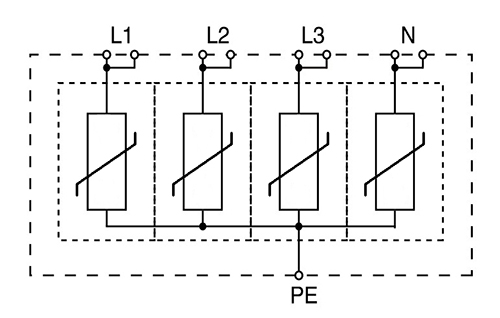

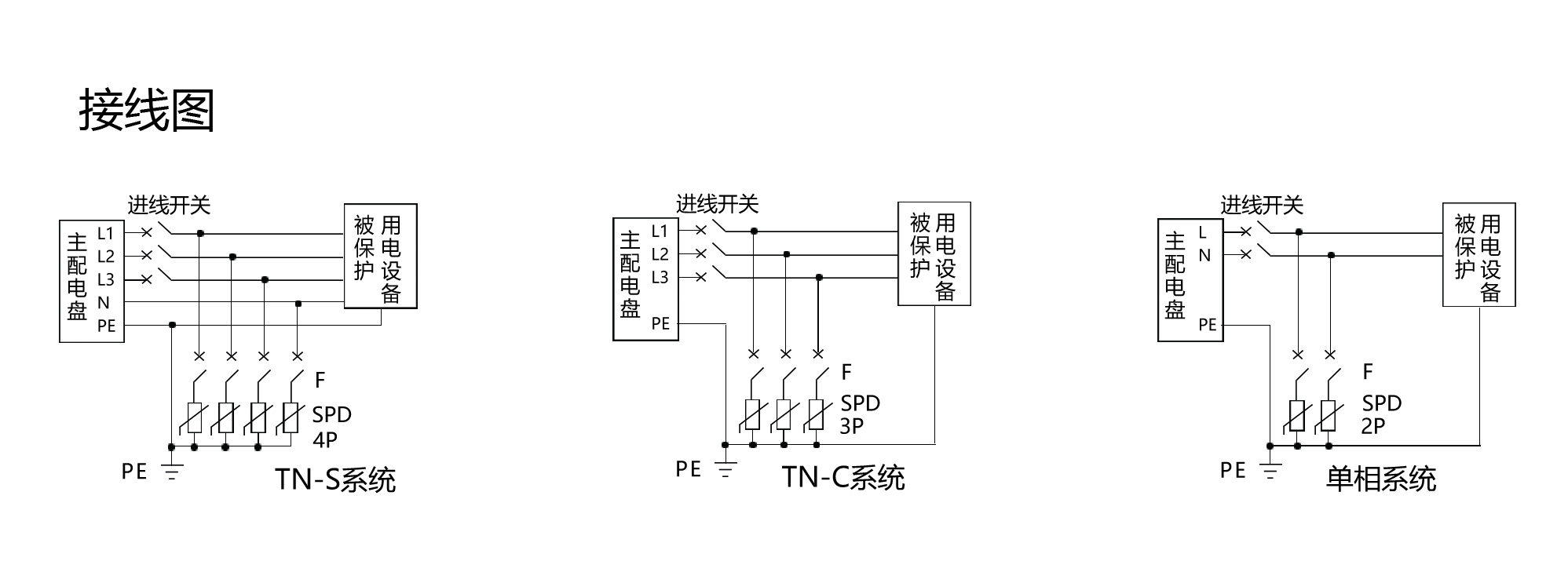

Wiring Diagram
Product Dimensions Diagram
Technical Parameters（技术参数） Nominal voltage Un : 220/380V AC
Maximum continuous operating voltage Uc: 400V AC
Nominal discharge current In: 100kA (8/20μs).
Maximum discharge current Imax: 200kA (8/20μs).
Impulse discharge current Iimp: 15kA (10/350μs).
Voltage protection level Up≤2500V
Front open or fuse F: 315A
Top lead L/N: ≥16mm2
Lower lead PE: ≥25mm2
Mounting: 35mm DIN rail, EN60715 standard
Notice
There must be a reliable PE ground when using surge protective device.
Green in transparent windows during normal use, when inside windows turn red, It means that the power surge protective device has failed and needs to be replaced with a new product in time.
Ordering and Model Selection（订货选型） KDY-100B/400/4P - Suitable for TN-S three-phase five-wire power systems.
KDY-100B/400/3P - Designed for TN-C three-phase four-wire systems.
KDY-100B/400/2P - Compatible with single-phase two-wire/three-wire systems.
*Please send your quotation email containing specific product requirements (including model numbers, quantities, technical specifications, etc.) to the designated email: salina@kejia.com.
（请将包含具体产品需求（如型号、数量、技术参数等）的询价邮件发送至指定邮箱 salina@kejia.com)
Download
| File name | Product type | Download |
|---|---|---|
| KDY-100B/400/4P Power Surge Protector PDF Document | Instruction manual | Download |
