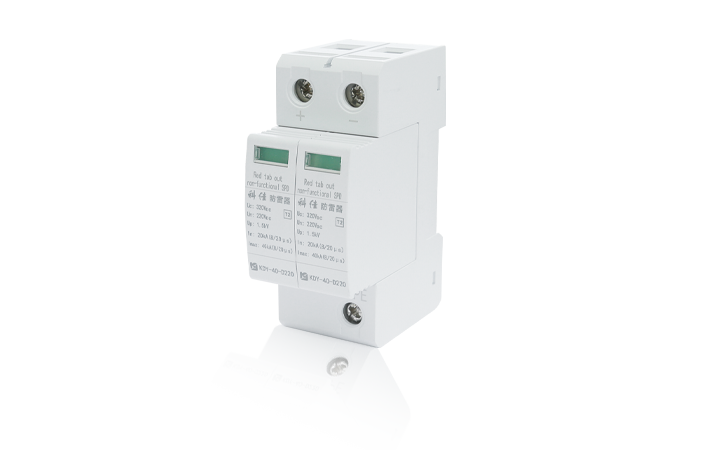

The KDY-40 Modular DC Surge Protective Device (SPD) is designed in compliance with GB18802.1 standards for lightning protection in DC power systems.
Key Features:
High lightning current discharge capacity (40kA max per module)
35mm standard DIN-rail mounting for easy installation
Hot-swappable modular design for maintenance convenience
Configurable multi-module setups for multi-circuit DC systems
Technical Specifications:
Standard: GB18802.1 compliant
Discharge Current: 40kA/module (8/20μs)
Mounting: 35mm DIN rail
Design: Plug-and-play modular replacement
Application: Scalable for various DC voltages (48V-900V)
Model | KDY-20-D220 /D110/D48 | KDY-20/D900 KDY-20/D600 |
---|---|---|
Applicable Power Supply | DC220V, DC110V, DC48V | DC900V, DC600V |
Maximum Continuous Operating Voltage (Uc) | DC320V, DC220V, DC85V | DC1200V, DC800V |
Voltage Protection Level (Up) | 1.5kV, 1.0kV, 500V | 3.2kV, 2.3kV |
Maximum Discharge Current (Imax) | 20kA (8/20µs) | 20kA (8/20µs) |
Nominal Discharge Current (In) | 10kA (8/20µs) | 10kA (8/20µs) |
Upper Lead (+/-) | ≥2.5mm² | ≥2.5mm² |
Lower Lead (PE) | ≥4mm² | ≥4mm² |
SPD Protection Standard (EN61643-11) | Type 2 | Type 2 |
Response Time (tA) | <25ns | <25ns |
Operating Temperature (TU) | -40°C to +70°C | -40°C to +70°C |
Protection Rating | IP20 | IP20 |
Housing Material | PA66 UL94-V-0 | PA66 UL94-V-0 |
Installation Method | 35mm DIN rail (EN 60715) | 35mm DIN rail (EN 60715) |
KDY-40-D48 : Designed for 48V DC power systems.
KDY-40-D110: Compatible with 110V DC power systems.
KDY-40-D220: Suitable for 220V DC power systems.
KDY-40/D600: Engineered for 600V DC power systems.
KDY-40/D900: Optimized for 900V DC power systems.
*Please send the inquiry email containing specific product requirements (such as model, quantity, technical parameters, etc.) to the designated email address salina@kejia.com.
(请将包含具体产品需求(如型号、数量、技术参数等)的询价邮件发送至指定邮箱 salina@kejia.com)
File name | Product type | Download |
---|---|---|
KDY-40-D220 DC surge protective device |
Instruction Manual | Download |
