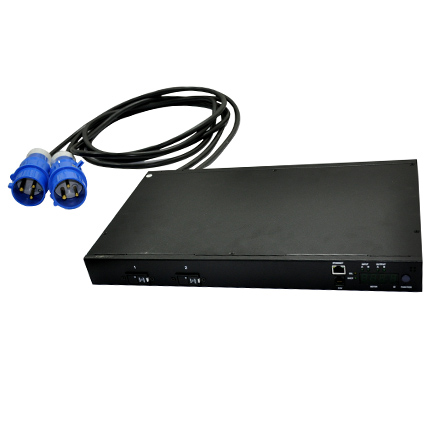

2.4kW Auto-transferred Switch, Switched ATS, 250V (10 C13), 220-230V/32A Input, Remote control & monitor (A/V/KWh/temp./humidity) via Ethernet, 7ft Cord, 1U Horizontal

产品描述

• Brief Introduction
• Main Features
• Typical Application
• Product Parameter
• Digrams
• PDU "Model Number" Guides

Automatic Transfer Switch (ATS)

Features & Functions	Basic	Metered	Monitored	Switched
auto-transfer between primary and secodary power sources	√	√	√	√
reliable power distribution	√	√	√	√
local power meter(A/V)		√	√	optional
local ENV meter(Temp./RH)		optional	optional	optional
remote power monitoring via network (A/V/KWh...)			√	optional
remote ENV monitoring via network (Temp./RH)			optional	optional
remote switch/control on PDU level via network				√
remote switch/control on outlets level via network				optional



Brief Introduction

KEJIA NKP-DY-SU series ATS(Automatic Transfer Switch) rack mount PDUs offer a redundant power option for single-corded network devices. Dual input cords support separate connection to primary and secondary power sources. The ATS will normally supplies continuous power to all outlets as derived from the primary mains. If the primary power source becomes unstable or failed, the ATS will switch over automatically to the secondary power source until the primary input is restored and stable. Super-fast switchover between primary and secondary power sources occurs within milliseconds, ensuring an uninterrupted power supply in data centers, telecom rooms, hospitals, banks, etc.



Main Features

• 2.4kW 32A 220-230V ATS
• short transfer time <25ms
• auto-transfer between primary and secondary power sources

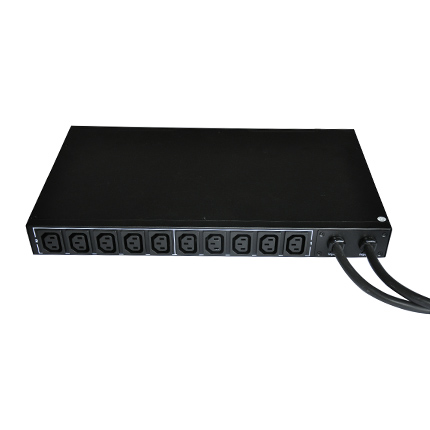

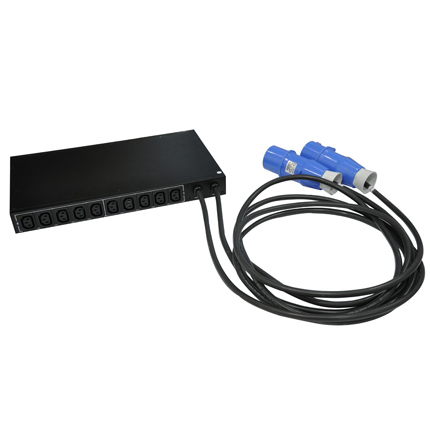

• 10 outlet (10 C13 rear), 2 inputs (2 power cords rear)
• LED indicator for power and network status
• Local/Remote current/ voltage/energy/temperature/humidity monitoring options
• Remote control and monitor on PDU/outlets level options via Ethernet
• 1U horizontal rack-mount installation(brackets)



Typical Application

Auto-Transfer Switch / Switched PDU is ideal for providing switched outlet functionality and redundant A/B power to single-corded network equipment



Product Parameter

Model No.	NKP-DY-TSU-32a(ZN32-L52-2L)
PDU Type	ATS/switched
INPUT
Nominal Input Voltage	220V, 230V
Maximum Input Current	32A
Input Receptacles	(2) power cords
Inlet Type	/
Input Cord Length(m/ft)	2.13m/7ft (standard)
Input Phase	Single phase
OUTPUT
Output Capacity	2.4kVA(415/240V)2.3kVA(400/230V), 2.2kVA(380/220V) 10A max per C13
Frequency	50/60Hz
Output Receptacles	(10) C13
Output Nominal Voltage	Single phase 240V(415V), 230V(400V), 220V(380V)
Output Maximum Current	16A
Outlet Type	IEC320 C13
CIRCUIT PROTECTION
Overload Protection	N/A
LED Indicator	SSL: (1) YELLOW LED
	DHCP: (1) GREEN LED
	INPUT STATUS:(2) RED LED
	OUTPUT STATUS:(2) GREEN LED
FUNCTION
Auto-transferred Button	(A: primary power source, B: secondary power source ) - both primary (A) and secondary (B) power sources are available. A is set as default mains. If A becomes unstable or failed, it will switch over automatically to B until A is restored and stable
Transfer Time	<25ms
Network Protocol	Http(s), SNMP, DHCP,UDP
Network Interface	RJ45 connector to Ethernet
Energy Metering	Voltage(V),Current(A), Active Power(kW), Apparent Power(kVA), Energy(kWh), Frequency
Metering Range and Accuracy	Voltage: ± 2% @ 90V~260V
	Active Power: ± 2% @ 50W~5000W
	Apparent Power: ± 2% @ 50VA~5000VA
	Frequency: ± 2% @ 45~65Hz
	Power Factor: ± 0.02 @ 0.5~1.0
	Energy(kWh): Range: 0.001kWh ~ 99999.999kWh; Precision: ±2% @ 50W~5000W, kh=1.0
	Current: ±2%/±-0.1AMP @ 0A ~ 20 A
Onboard Display	3 Digital Seven-segments for True RMS Meter
Environmental Metering	Temperature, Humidity (±2%/±0.1)
Environmental Interface	(1) RJ11 for ENV probe connection
OPERATIONAL ENVIRONMENT
Operating Temperature Range	0℃-40℃(0℉-104℉)
Storage Temperature Range	0℃-40℃(0℉-104℉)
Relative Humidity(RH)	0%-90%
Operating Elevation	<3000m(9873ft)
PHYSICAL
Housing Material	Aluminum alloy
Housing Color	Black
Unit Dimension(HWD/mm)	432*44.5*260
Unit Weight(NW/kg)	4.8
Shipping Dimension(HWD/mm)	535*415*245
Shipping Weight(GW/kg)	5
PDU Mounting Form	1U Horizontal
ACCESSORIES
Package Includes	Rack mounting brackets, product manual
TEST STANDARDS
Product Test	CE-LVD, CE-EMC, RoHS-2011/65/EU compliant
CERTIFICATION
Regulatory Approvals	CE, RoHS
WARRANTY
Product Warranty Period	2-year warranty
