Basic PDU 1630

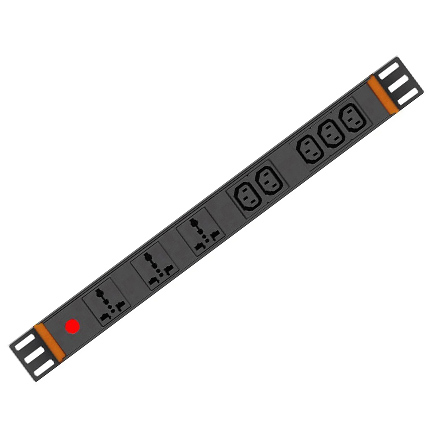

2.4kW Single-phase Basic PDU, 250V (3 universal outlets, 5 C13), 220-230V Input, Power Status LED indicate, 6.6ft Cord, 1U Horizontal

Model Number: NKP-DY-U-16a(16J-W3+L21+L31-D1-L2)

  • Basic 2.4kW single-phase 16A 220-230V rack PDU
  • 1U horizontal rack-mount installation(brackets)
  • 8outlets (3 universal outlets, 5 C13 front)
  • power status LED indicate
  • Black aluminum alloy housing
Compare

产品描述




Brief Introduction

KEJIA NKP-DY-U series basic PDUs(Power Distribution Units) offer reliable power distribution for critical IT equipments in server rooms, data centers, network closets, etc. It supplies continuous power, both single phase and 3 phase, from any UPS, generator or the public Grid power sources. It sports high-quality design, including AL housing and standard 19” rack mount installation. Various outlet types are available for special individual purposes.



Main Features

  • Basic 2.4kW single-phase 16A 220-230V rack PDU
  • 1U horizontal rack-mount installation(brackets)
  • 8outlets (3 universal outlets, 5 C13 front)
  • power status LED indicate
  • Black aluminum alloy housing



Typical Application

KEJIA NKP-DY-U series rack PDUs/basic PDUs is the ideal means of powering multiple loads in 19 inch rack-mount: internetworking, PC systems, telecommunications, audio/video, security, sound reinforcement, etc. Ideal for distribution of UPS, generator or commercially derived AC power to protected equipments.



Product Parameter

Model No.NKP-DY-U-16a(16J-W3+L21+L31-D1-L2)
PDU TypeBasic PDU
INPUT
Nominal Input Voltage220V, 230V
Maximum Input Current16A
Input Plug TypeN/A
Input Cord Length(m/ft)2m/6.6ft (standard)
Input PhaseSingle phase
OUTPUT
Output Capacity2.4kVA(415/240V), 2.3kVA(400/230V), 2.2kVA(380/220V) 10A max per universal outlet, 10 A max per C13 outlet
Frequency 50/60Hz
Output Receptacles(3) universal outlet, (5)C13
Output Nominal Voltage Single phase 240V(415V), 230V(400V), 220V(380V)
Output Maximum Current16A
Outlet Typeuniversal outlet 10A/250V
CIRCUIT PROTECTION
ON/OFF SwitchN/A
Circuit BreakerN/A
Overload ProtectionN/A
Power Status LED DisplayYES
OPERATIONAL ENVIRONMENT
Operating Temperature Range 0℃-40℃(0℉-104℉)
Storage Temperature Range 0℃-40℃(0℉-104℉)
Relative Humidity(RH)0%-90%
Operating Elevation<3000m(9873ft)
PHYSICAL
Housing MaterialAluminum alloy
Housing ColorBlack
Unit Dimension(HWD/mm)496*44.5*66
Unit Weight(NW/kg)1.4
Shipping Dimension(HWD/mm)550*110*90
Shipping Weight(GW/kg)1.5
PDU Mounting Form1U Horizontal
Package IncludesRack mounting brackets, product manual
TEST STANDARDS
Product TestCE-LVD, CE-EMC, RoHS-2011/65/EU compliant
CERTIFICATION
Regulatory Approvals CE, RoHS
WARRANTY
Product Warranty Period2-year warranty



Digrams

19 inches - 1U 2rack installation 2



PDU "Model Number" Guides

KEJIA PDU Model No. Guides
