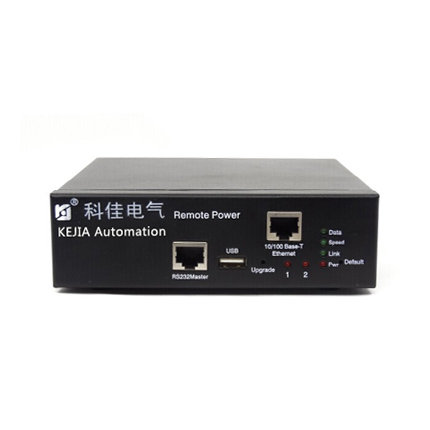

1.8kW Switched Intelligent PDU, 120V (2 NAME 5-15R), 120V/15A Input, Remote Power Management via Ethernet, 7ft Cord, 1U Horizontal

Model Number: NKP-DY-TU-15a(NPS-1511A-02N1)

  • 1.8kW 15A 120V switched intelligent PDU
  • 1U horizontal rack-mount installation(brackets)

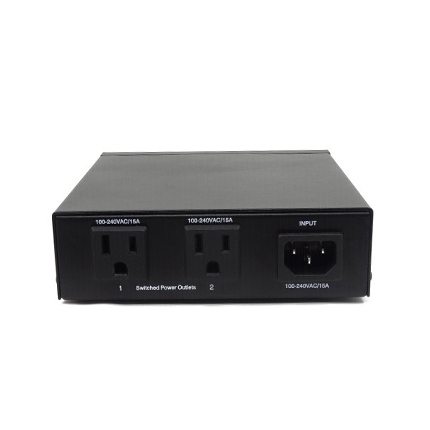

  • 8 outlet (2 NEMA 5-15R rear), 1 inlet (1 C14 rear)
  • Power Monitor: Total Power Monitoring by Web, SNMP,
  • Protocols: Http, Https, SNMP, DHCP, TCP/UDP, ICMP, Telnet, DNS
  • Outlet Control: Individual, Group, Schedule, Auto Ping
  • Power Delay: Power On/Off Sequence can be Defined
  • Alarm Thresholds: User-Defined Alarm Thresholds for Warning and Overload
  • Event Alert: Email, Trap, Audible Alarm
Compare

产品描述


Intelligent PDU(Power Distribution Unit)

Features & FunctionsMeteredMonitoredSwitched
reliable power distribution
local power meter(A/V)optional
local ENV meter(Temp./RH)optionaloptionaloptional
remote power monitoring via network (A/V/KWh...) optional
remote ENV monitoring via network (Temp./RH) optionaloptional
remote switch/control on PDU level via network
remote switch/control on outlets level via network optional



Brief Introduction

KEJIA NKP-DY-TU series switched intelligent PDUs(Power Distribution Units) offer real-time monitoring on electricity factors for critical IT equipments via local digital meter or remote network systems. Power alert or event log supports custom notification of user-specified remote conditions via email, SNMP, Web, DHCP interface. Ensures a safer, greener and more convenient power distribution environment in unmanned server rooms, data centers, network closets, etc. High-quality design includes AL housing and standard 19” rack mount installation.



Main Features

  • 1.8kW 15A 120V switched intelligent PDU
  • 1U horizontal rack-mount installation(brackets)
  • 8 outlet (2 NEMA 5-15R rear), 1 inlet (1 C14 rear)
  • Power Monitor: Total Power Monitoring by Web, SNMP,
  • Protocols: Http, Https, SNMP, DHCP, TCP/UDP, ICMP, Telnet, DNS
  • Outlet Control: Individual, Group, Schedule, Auto Ping
  • Power Delay: Power On/Off Sequence can be Defined
  • Alarm Thresholds: User-Defined Alarm Thresholds for Warning and Overload
  • Event Alert: Email, Trap, Audible Alarm



Typical Application

Ideal for network configurations in datacenters and heavily configured equipment racks.

Product Parameter

Model No.NKP-DY-TU-15a(NPS-1511A-02N1)
PDU TypeIntelligent PDU/Switched
INPUT
Nominal Input Voltage100V, 120V
Maximum Input Current15A
Input Receptacles(1) C14
Inlet TypeIEC320 C14
Input CordIEC C13 to NAME 5-15P extension power cord
Input Cord Length(m/ft)2.13m/7ft (standard)
Input PhaseSingle phase
OUTPUT
Output Capacity1.5kVA@100V, 1.8kVA@120V 15A max per NAME 5-15R
Frequency 60Hz
Output Receptacles(2) NAME 5-15R
Output Nominal VoltageSingle phase 100V, 120V
Output Maximum Current10A
Outlet TypeNAME 5-15R
CIRCUIT PROTECTION
ON/OFF SwitchN/A
Circuit BreakerN/A
Overload ProtectionN/A
LED IndicatorDEFAULT: (1) YELLOW LED
UPGRADE: (1) YELLOW LED
DATA/SPEED/LINK: (3) GREEN LED
INPUT STATUS:(1) RED LED
OUTPUT STATUS: (2) GREEN LED
COMMUNICATION
Network ProtocolHttp(s), SNMP, DHCP, TCP/UDP, ICMP, Telnet, DNS
Network InterfaceRJ45 connector to Ethernet
Ethernet10/100 Base-T, support AUTO-MDIX
Onboard Display /
OPERATIONAL ENVIRONMENT
Storage Temperature Range 0℃-40℃(0℉-104℉)
Operating Elevation<3000m(9873ft)
Housing MaterialAluminum alloy
Unit Dimension(HWD/mm)334*44.5*90
Unit Weight(NW/kg) -
Shipping Dimension(HWD/mm) -
Shipping Weight(GW/kg) -
PDU Mounting Form1U Horizontal
ACCESSORIES
Package IncludesRack mounting brackets, product manual, IEC C19 to NAME 5-15P extension power cord(optional)
TEST STANDARDS
Product TestCE-LVD, CE-EMC, RoHS-2011/65/EU compliant
CERTIFICATION
Regulatory Approvals CE, RoHS
WARRANTY
Product Warranty Period2-year warranty



Digrams

..............



PDU "Model Number" Guides

KEJIA PDU Model No. Guides
