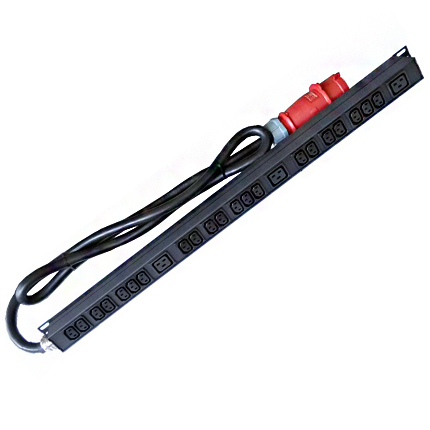

Basic PDU _ (32-L33+L26+H3-L2T)

11.04kW 3-phase Basic PDU, 250V (21 C13, 3 C19), 385-415V/32A Input, 6.6ft Cord, 0U Vertical

Model Number: NKP-DY-U-32a(32-L33+L26+H3-L2T)

  • Basic 11.04kW 3-phase 32A 385-415V rack PDU
  • IEC 60309 connector, red, 3P+N+E
  • 24 outlets (21 C13, 3 C19 outlet front)
  • 0U vertical rack-mount installation(brackets)
  • Black aluminum alloy housing
Compare
编码: units 分类: 标签: , , , ,

产品描述




Brief Introduction

KEJIA NKP-DY-U series basic PDUs(Power Distribution Units) offer reliable power distribution for critical IT equipments in server rooms, data centers, network closets, etc. It supplies continuous power, both single phase and 3 phase, from any UPS, generator or the public Grid power sources. It sports high-quality design, including AL housing and standard 19” rack mount installation. Various outlet types are available for special individual purposes.



Main Features

  • Basic 11.04kW 3-phase 32A 385-415V rack PDU
  • IEC 60309 connector, red, 3P+N+E
  • 24 outlets (21 C13, 3 C19 outlet front)
  • 0U vertical rack-mount installation(brackets)
  • Black aluminum alloy housing



Typical Application

KEJIA NKP-DY-U series rack PDUs/basic PDUs is the ideal means of powering multiple loads in 19 inch rack-mount: internetworking, PC systems, telecommunications, audio/video, security, sound reinforcement, etc. Ideal for distribution of UPS, generator or commercially derived AC power to protected equipments.



Product Parameter

Model No.NKP-DY-U-32a(32-L33+L26+H3-L2T)
PDU TypeBasic PDU
INPUT
Nominal Input Voltage 220V, 230V
Maximum Input Current32A
Input Plug TypeIEC 60309 connector, red, 3P+N+E
Input Cord Length(m/ft) 2m/6.6ft (standard)
Input PhaseThree phase
OUTPUT
Output Capacity11.52kVA(415/240V), 11.04kVA(400/230V), 10.56kVA(380/220V) 10A max per C13, 16A max per C19
Frequency 50/60Hz
Output Receptacles(21) C13, (3) C19
Output Nominal VoltageSingle phase 240V(415V), 230V(400V), 220V(380V)
Output Maximum Current16A
Outlet TypeIEC 320 C13, IEC 320 C19
CIRCUIT PROTECTION
ON/OFF SwitchN/A
Circuit BreakerN/A
Overload ProtectionN/A
Power Status LED DisplayN/A
OPERATIONAL ENVIRONMENT
Operating Temperature Range 0℃-40℃(0℉-104℉)
Storage Temperature Range 0℃-40℃(0℉-104℉)
Relative Humidity(RH)0%-90%
Operating Elevation<3000m(9873ft)
PHYSICAL
Housing MaterialAluminum alloy
Housing ColorBlack
Unit Dimension(HWD/mm)-
Unit Weight(NW/kg)-
Shipping Dimension(HWD/mm)-
Shipping Weight(GW/kg)-
PDU Mounting Form0U Vertical
Package IncludesRack mounting brackets, product manual
TEST STANDARDS
Product TestCE-LVD, CE-EMC, RoHS-2011/65/EU compliant
CERTIFICATION
Regulatory Approvals CE, RoHS
WARRANTY
Product Warranty Period2-year warranty





Digrams

rack installation 2



PDU "Model Number" Guides

KEJIA PDU Model No. Guides
