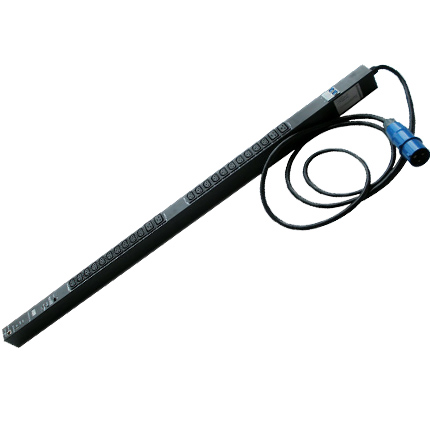

11.52kW Switched Intelligent PDU, 250V (20 C13, 4 C19), 400V/32A Input, Remote Power Management via Ethernet, 6.6ft Cord, 1U Horizontal

产品描述

• Brief Introduction
• Main Features
• Typical Application
• Product Parameter
• Digrams
• PDU "Model Number" Guides

Intelligent PDU(Power Distribution Unit)

Features & Functions	Metered	Monitored	Switched
reliable power distribution	√	√	√
local power meter(A/V)	√	√	optional
local ENV meter(Temp./RH)	optional	optional	optional
remote power monitoring via network (A/V/KWh...)		√	optional
remote ENV monitoring via network (Temp./RH)		optional	optional
remote switch/control on PDU level via network			√
remote switch/control on outlets level via network			optional



Brief Introduction

KEJIA NKP-DY-TU series switched intelligent PDUs(Power Distribution Units) offer real-time monitoring on electricity factors for critical IT equipments via local digital meter or remote network systems. Power alert or event log supports custom notification of user-specified remote conditions via email, SNMP, Web, DHCP interface. Ensures a safer, greener and more convenient power distribution environment in unmanned server rooms, data centers, network closets, etc. High-quality design includes AL housing and standard 19” rack mount installation.



Main Features

• 11.52kW 16A 240V switched intelligent PDU
• 1U horizontal rack-mount installation(brackets)
• 24 outlet (20 C13, 4 C19 front), 1 plug (1 IEC320 60309 )
• Power Monitor: Total and each outlet power monitoring by Web, SNMP,
• Protocols: HTTP, HTTPS, IPMI, SMASH-CLP, SSH, TELNET, SNMP
• Outlet Control: Individual, Group, Schedule, Auto Ping
• ENV: RJ11interfce for ambient temperature and humidity monitoring
• Current Meter: Built-in web server to meter/display its current consumption
• kWh Meter: Power consumption meter in kWh, easy for bill calculating
• Power Delay: Power On/Off sequence can be defined
• Alarm Thresholds: User-defined alarm thresholds for warning and overload
• Event Alert: Email, Trap, Audible Alarm



Typical Application

Ideal for network configurations in datacenters and heavily configured equipment racks.



Product Parameter

Model No.	NKP-DY-TU-32a(ZN32-L20+H4-L2)
PDU Type	Intelligent PDU/Switched
INPUT
Nominal Input Voltage	400V
Maximum Input Current	32A
Input Receptacles	(1) IEC 320 60309
Inlet Type	IEC 320 60309 (3P, 32A/440V), blue
Input Cord Length(m/ft)	2 m/6.6ft (standard)
Input Phase	3 phase/Three phase
OUTPUT
Output Capacity	11.52kVA(415/240V), 11.04kVA(400/230V), 1.056kVA(380/220V) 10A max per C13, 16A max per C19,
Frequency	50/60Hz
Output Receptacles	(20) C13, (4)C19
Output Nominal Voltage	Single phase 240V(415V), 230V(400V), 220V(380V)
Output Maximum Current	16A
Outlet Type	IEC320 C13, IEC320 C19
CIRCUIT PROTECTION
Overload Protection	N/A
LED Indicator	SSL: (1) YELLOW LED
	DHCP: (1) GREEN LED
	INPUT STATUS:(1) RED LED
COMMUNICATION
Network Protocol	Http(s), IPMI, SMASH-CLP, SSH, Telnet, SNMP
Network Interface	RS232 connector to Ethernet
Environmental Interface	(1) RJ11 for ENV (extensional)
Energy Metering	Voltage(V),Current(A), Energy(kWh)
Metering Range and Accuracy	Voltage: ± 2% @ 90V~260V
	Current: ±2%/±-0.1AMP @ 0A ~ 20 A
	Energy(kWh): Range: 0.001kWh ~ 99999.999kWh; Precision: ±2% @ 50W~5000W, kh=1.0
Onboard Display	3 Digital Seven-segments for True RMS Meter
Function Button	● Press and hold the key after 1 beeping, meter will show up branch current, temperature and humidity information in sequence.
	● Press and hold the key after 2 beeping, meter will show up the IP address.
	● Press and hold the key after 4 beeping, it can change the way to get IP by DHCP or Fixed IP.
	● Press and hold the key after 6 beeping, it can reset PDU back to default setting.
Audible Alarm	● Warning-1 beep in 1 second.
	● Overload-3 beeps in 1 second.
	● Note: The audible alarm will keep beeping until the current is lower than 0.5 Amp for the threshold of warning and overload.
OPERATIONAL ENVIRONMENT
Operating Temperature Range	0℃-40℃(0℉-104℉)
Storage Temperature Range	0℃-40℃(0℉-104℉)
Relative Humidity(RH)	0%-90%
Operating Elevation	<3000m(9873ft)
PHYSICAL
Housing Material	Aluminum alloy
Housing Color	Black
Unit Dimension(HWD/mm)	-
Unit Weight(NW/kg)	-
Shipping Dimension(HWD/mm)	-
Shipping Weight(GW/kg)	-
PDU Mounting Form	1U Horizontal
ACCESSORIES
Package Includes	Rack mounting brackets, product manual
TEST STANDARDS
Product Test	CE-LVD, CE-EMC, RoHS-2011/65/EU compliant
CERTIFICATION
Regulatory Approvals	CE, RoHS
WARRANTY
Product Warranty Period	2-year warranty





Digrams

..............



PDU "Model Number" Guides
